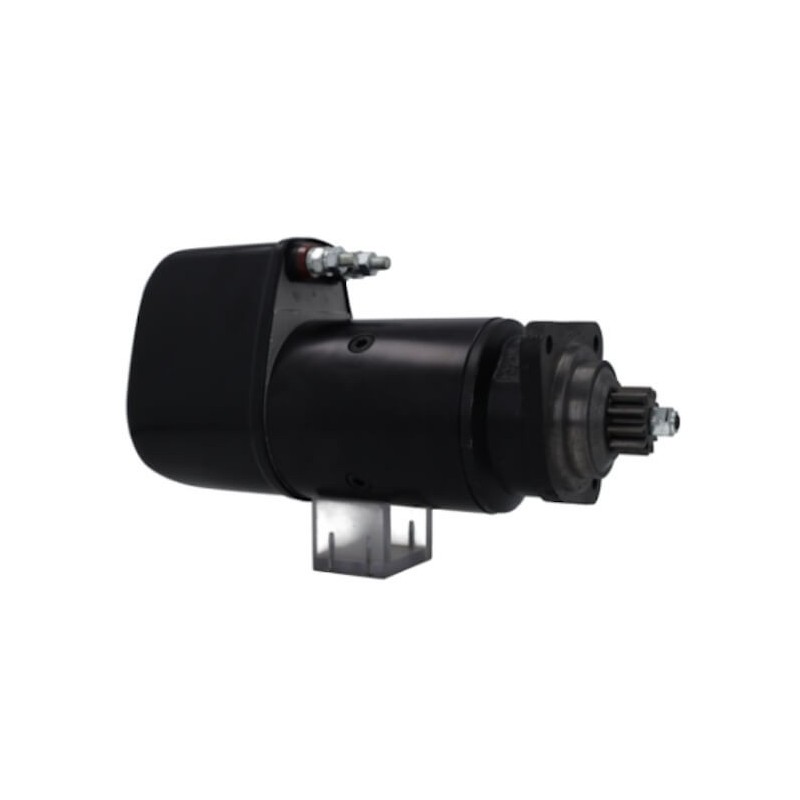

Starter replacing BOSCH 0001417023 / 0001416053 / 0001415021

Information:

Voltage 24

KW 6.6

Insulated return Oui

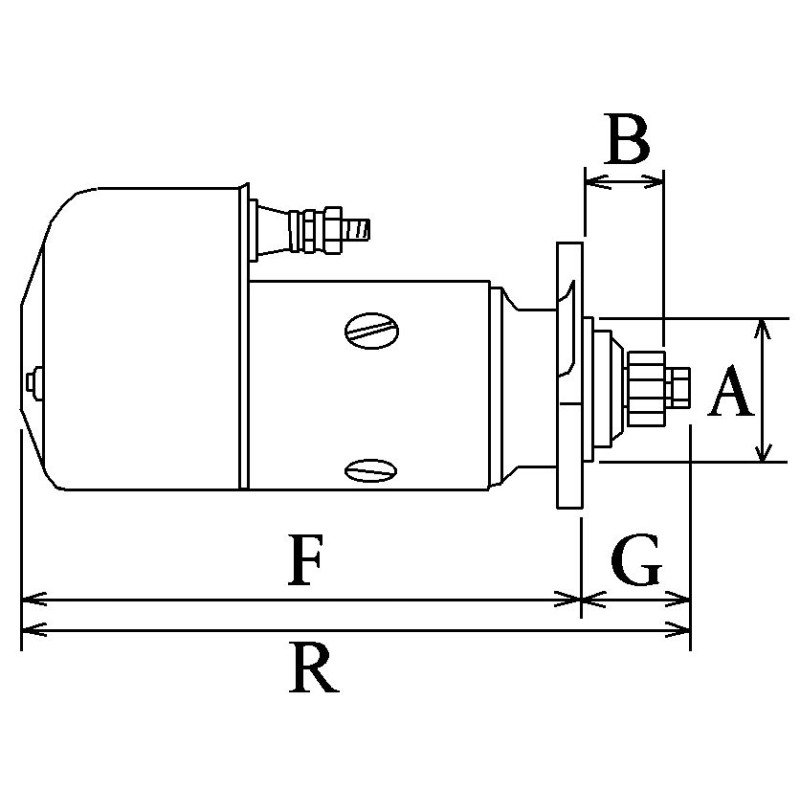

A = Mount flange 89.00

B = Drive distance 47.40

F = Distance / Back 345.00

G = Distance / Front 62.00

H = Nbr of teeth 11

B+ M10

B- M10

Gear type Dd

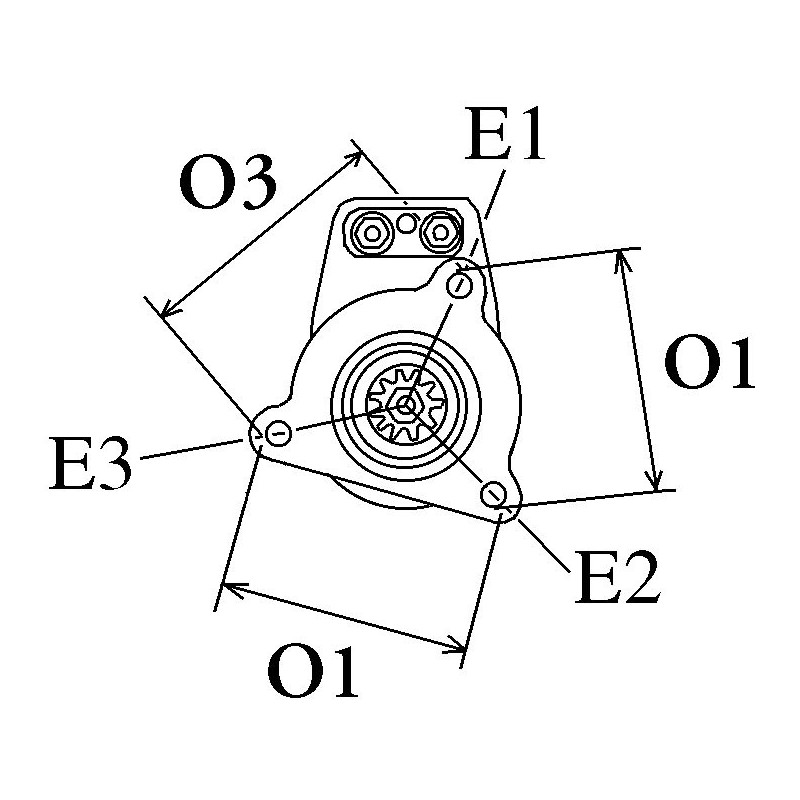

O = Distance mm 89.80

O = Distance 2 127.00

O = Distance 3 89.80

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 407.00

Generic brand

= AVF im553 / im335 / im623

= BOSCH 0001417023 / 0001416053 / 0001415021 / 0001411010 / 0001410050,
0001410010

= DELCO REMY 19024063 / 19024047

= Elmot R23.27 / 6270000 / 6240000

= ISKRA IS9078

=  MAGNETON / Pal 9125490

= Monark 81467023

= PRESTOLITE 860541

= VOLVO 881684

Used onnotamment on  :

VOLVO F 10 F 10/280 (1977-1982)
VOLVO F 12 F 12/320,F 12/330 (1977-1986)
VOLVO F 12 F 12/370 (1977-1986)
VOLVO F 12 F 12/320 (1987-1987)
VOLVO F 12 F 12/370 (1987-1987)

                                 NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
