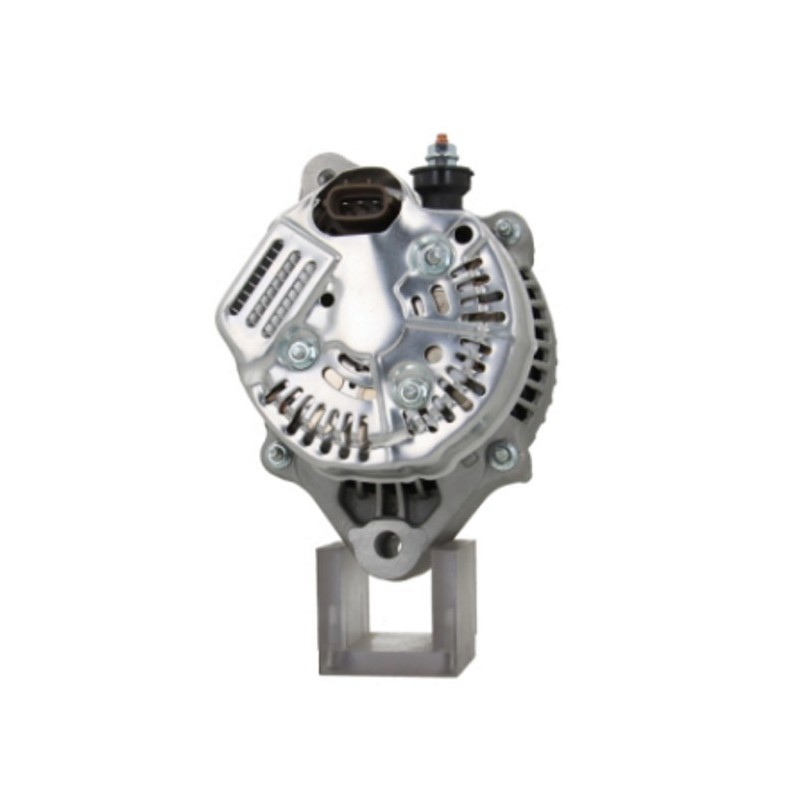

Alternator replacing 101211-0270 / 101211-0271 / 27060-17160 for Land Cruiser
Replacing | |
|---|---|
| 101211-0270 | Denso |
| 101211-0271 | Denso |
| 101211-0272 | Denso |
| 102211-5110 | Denso |
| 102211-5111 | Denso |
| 27060-17160 | Toyota |
| 27060-17210 | Toyota |
NO CORE EXCHANGE NEEDED
More info

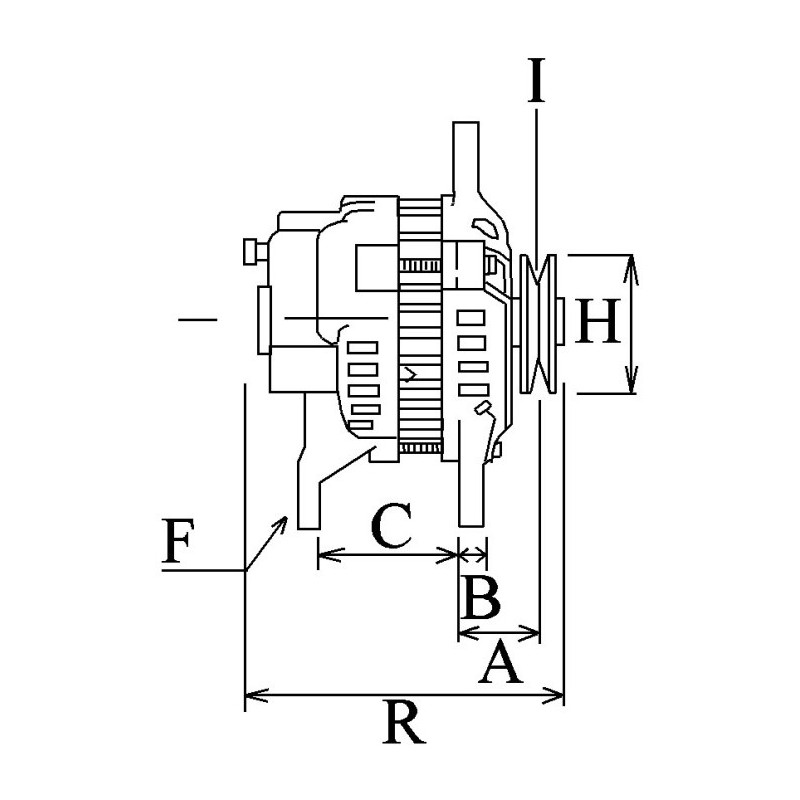

Physical information | ||
|---|---|---|
| A | Pulley dist. | 93.50 |
| B | Width/holder arm | 58.30 |
| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 4 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 74.75 |
| I | Grooves/pulley | 2 |
| J | Radius | 79.50 |
| J | Radius 2 | 83.00 |
| K | B+ | M6 |
| K | Position/B+ in min. | 4 |
| N | Rotation | CW |

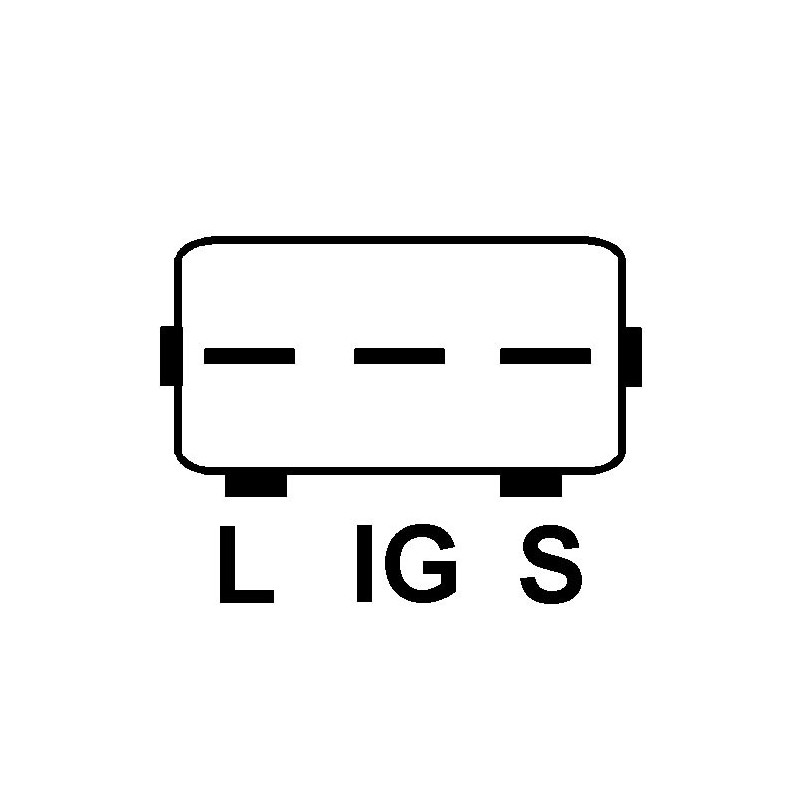

| O | Plug no. 1 | PL42 |
| R | Total length mm | 164.50 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 60 | |
generic brand
replacing
| 1012110270 | Denso |
| 1012110270SEL | +line |
| 1012110271 | Denso |
| 1012110272 | Denso |
| 1022115110 | Denso |
| 1022115111 | Denso |
| 112360 | Cargo |
| 12060871 | EuroTec |
| 195587060 | PSH |
| 2706017160 | Toyota |
| 2706017210 | Toyota |
| 284580 | Elstock |
| 535121602 | DRI |
| 90295456 | Wilson |
| 930335 | EDR |
| DRA0335 | Remy |
| JA1597IR | HC |
| LRA02134 | Lucas |
| N5111240 | Nipparts |
