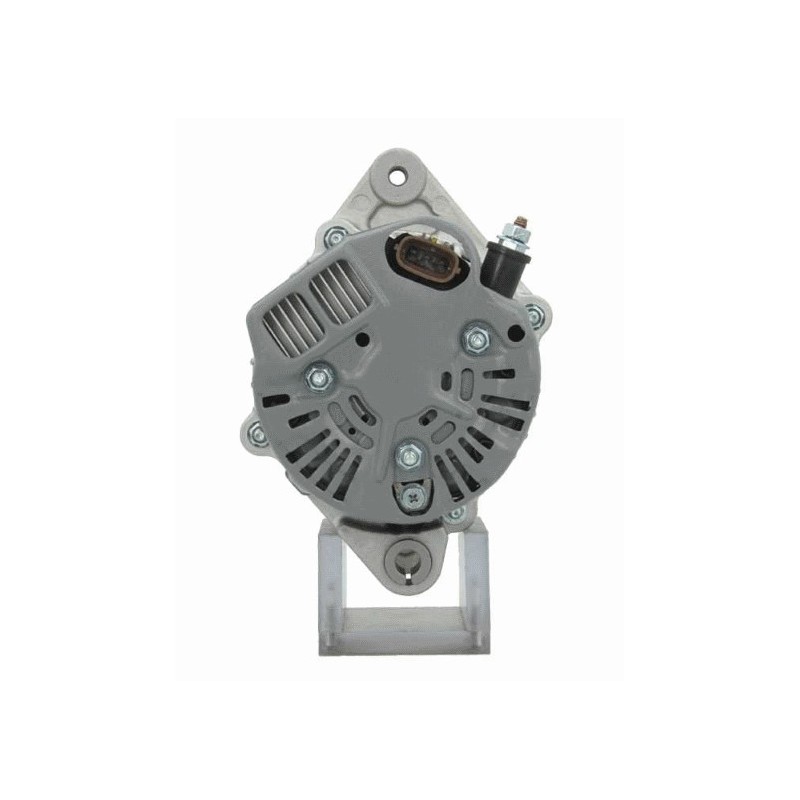

Alternator replacing 102211-5470 / 27060-97402
Alternator for DAIHATSU sirion / terios / copen 1.3
DAN977 / LRA03258 / TRA167 / 2706097402000 / DRA0709
NO CORE ECHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP | |
| Regulator type | IR | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 48.00 |
| B | Width/holder arm | 27.00 |
| C | Mount. bracket dist. | 39.50 |
| D | Bracket hole | 10.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 4 |
| J | Radius | 74.00 |
| J | Radius 2 | 82.00 |
| K | B+ position | M6 |
| K | Position/B+ in min. | 7 |
| N | Rotation | CW |

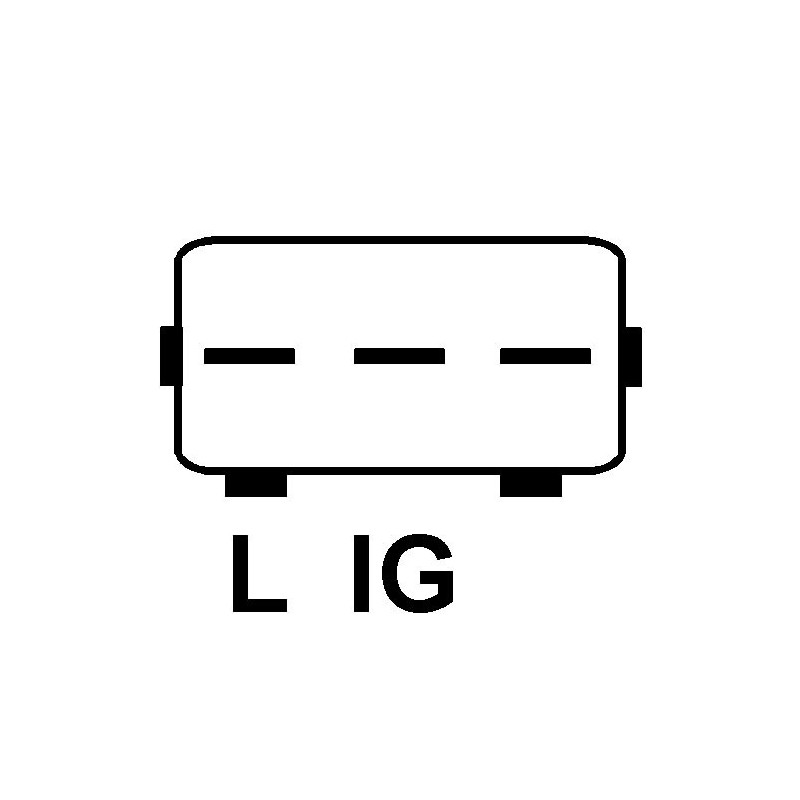

| O | Plug no. 1 | PL58 |
| R | Total length mm | 153.00 |
generic brand
replacing
| 063377516010 | MAGNETI MARELLI |
| 102211547 | DENSO |
| 1022115470 | DENSO |
| 115526070 | PSH |
| 12060881 | EuroTec |
| 2706097402 | TOYOTA |
| 2706097402000 | DAIHATSU |
| 285870 | Elstock |
| 63377516 | MAGNETI MARELLI |
| 8EL012241041 | HELLA |
| 930709 | EDR |
| DAN977 | DENSO |
| DRA0709 | DELCO REMY |
| LRA03258 | LUCAS |
| MAN7516 | MAGNETI MARELLI |
| TRA167 | TWA |
