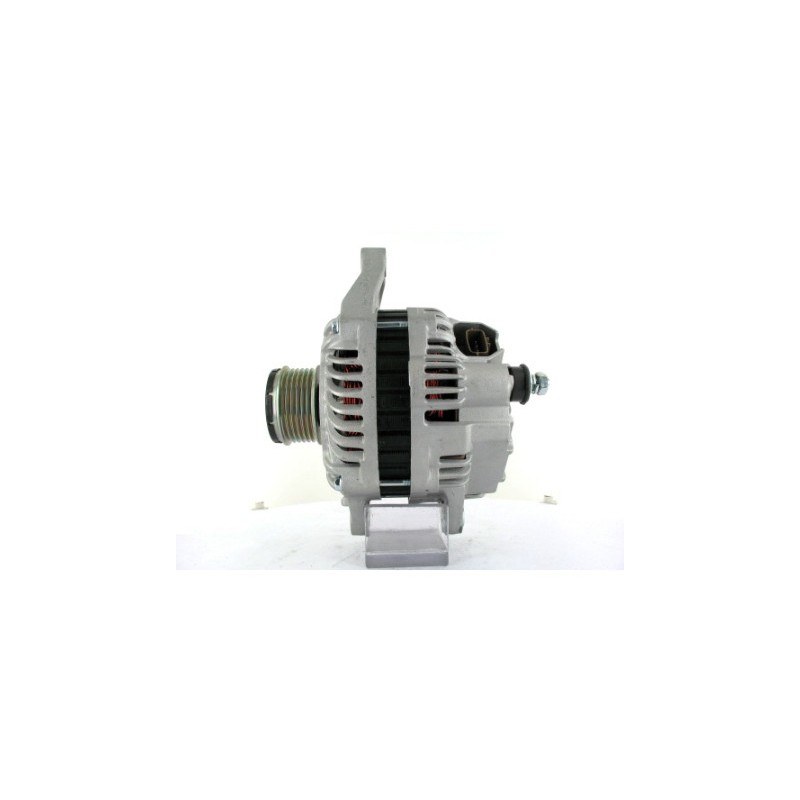

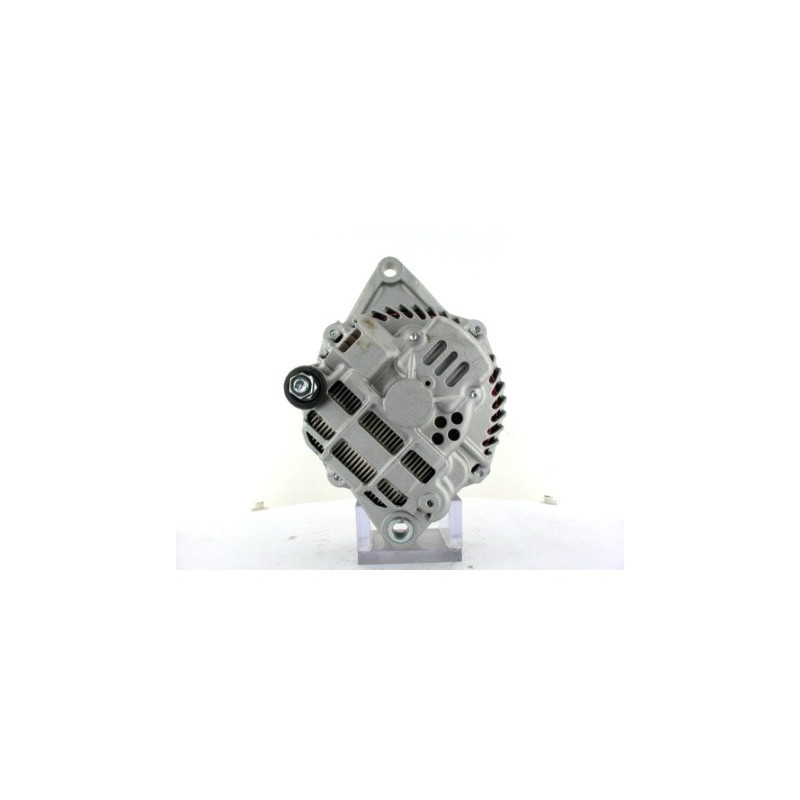

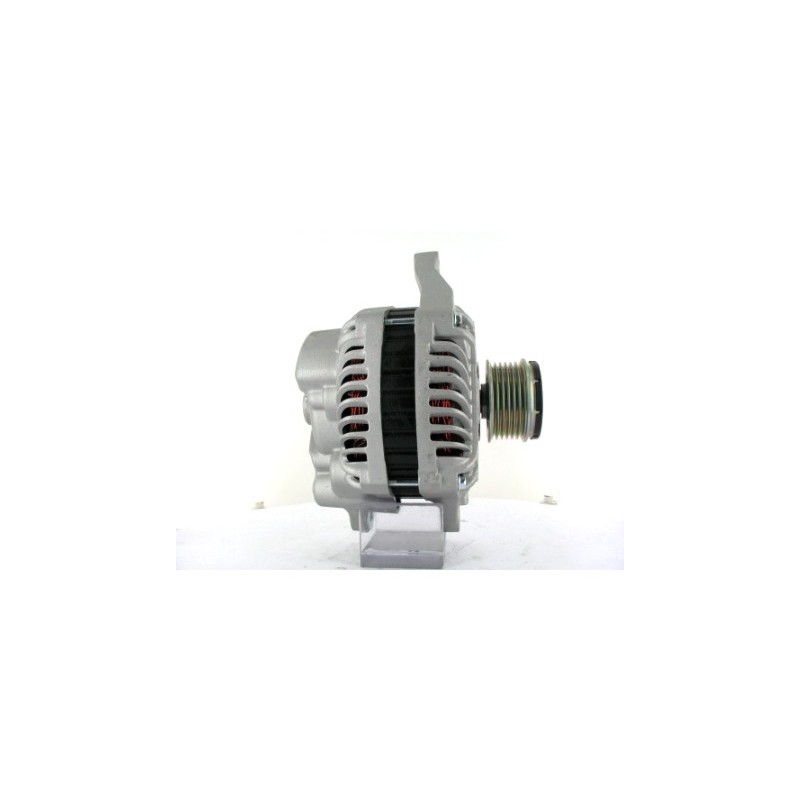

Alternator replacing 1800a053 / A003TG3181 / a3tg3181
Alternator NEW replacing MITSUBISHI 1800a053 / A003TG3181 / a3tg3181
0986082000 / 1800A053 / 90273387 / ALT5293sa / DRA1004 / KTR311160240 / LRA03488
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.75 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 2 |
| C | Mount. bracket dist | 52.50 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 34.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 80.00 |
| j | Radius 2 | 100.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL68 |
Replacing | |
|---|---|
| 1800a053 | MITSUBISHI |
| A003TG3181 | MITSUBISHI |
| a3tg3181 | MITSUBISHI |
| ca2013ir | HC-PARTS |
generic brand
Mounted on :
MITSUBISHI
| ASX | ASX | 2.0 | Unleaded | 2010 06 | 4B11 | i | 110 | 150 | 1998 | 4 | |||
| ASX | ASX | 2.0 | Unleaded | 2010 06 | 4B11 | i | 110 | 150 | 4WD | 1998 | 4 | ||
| ASX | ASX | 1.8 | Unleaded | 2010 02 | 4B10 | 102 | 139 | 1798 | 4 | ||||
| Lancer | Lancer | 1.8 | Unleaded | 2010 05 | 4B10 | 103 | 140 | Hayon | Sportsback | 1798 | 4 | CX_A | |
| Lancer | Lancer | 1.8 | Bi-Fuel | 2010 02 | 4B10 | BiFuel | 105 | 143 | Hayon | Sportsback | 1798 | 4 | CX_A |
| Lancer | Lancer | 1.8 | Unleaded | 2010 05 | 4B10 | 103 | 140 | 1798 | 4 | CY/Z_A | |||
| Lancer | Lancer | 1.8 | Bi-Fuel | 2009 03 | 4B10 | Flexfuel | 103 | 140 | Hayon | Flex Sportback | 1798 | 4 | CX_A |
| Lancer | Lancer | 1.8 | Bi-Fuel | 2009 03 | 4B10 | Flexfuel | 103 | 140 | 1798 | 4 | CY/Z_A | ||
| Lancer | Lancer | 1.8 | Unleaded | 2008 02 | 4B10 | 105 | 143 | 1798 | 4 | ||||
| Lancer | Lancer | 2.0 | Unleaded | 2008 06 | 4B11T/C | 217 | 295 | EVO X | 1998 | 4 | CY/Z_A |
| Lancer | Lancer | 1.8 | Unleaded | 2008 06 | - | 4B10 | 105 | 143 | Hayon | 1798 | 4 | |||
| Lancer | Lancer | 2.0 | Unleaded | 2008 10 | - | 4B11T/C | 177 | 241 | Ralliart | 1998 | 4 | CY/Z_A | ||
| Lancer | Lancer | 2.0 | Unleaded | 2008 10 | - | 4B11T/C | 177 | 241 | Hayon | Sportsback Ralliart | 1998 | 4 | CX_A | |
| Lancer | Lancer | 1.8 | Bi-Fuel | 2010 02 | - | 4B10 | BiFuel | 105 | 143 | 1798 | 4 | CY/Z_A | ||
| Outlanfromr | Outlanfromr | 2.4 | Bi-Fuel | 2007 09 | 2012 11 | 4B12 | Flexfuel | 125 | 170 | 2360 | 4 | CW_W | ||
| Outlanfromr | Outlanfromr | 2.4 | Unleaded | 2006 11 | 2012 11 | 4B12 | 125 | 170 | SUV | 2359 | 4 | |||
| Outlanfromr | Outlanfromr | 2.4 | Unleaded | 2007 09 | 2012 11 | 4B12 | Mivec | 125 | 170 | SUV | 2360 | 4 | CW5W | |
| Outlanfromr | Outlanfromr | 2.0 | Unleaded | 2006 11 | 2012 11 | 4B11 | 108 | 147 | 1998 | 4 | CW4W | |||
| Outlanfromr | Outlanfromr | 2.0 | Unleaded | 2006 11 | 2012 11 | 4B11 | 108 | 147 | 4WD | 1998 | 4 | CW_W |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
