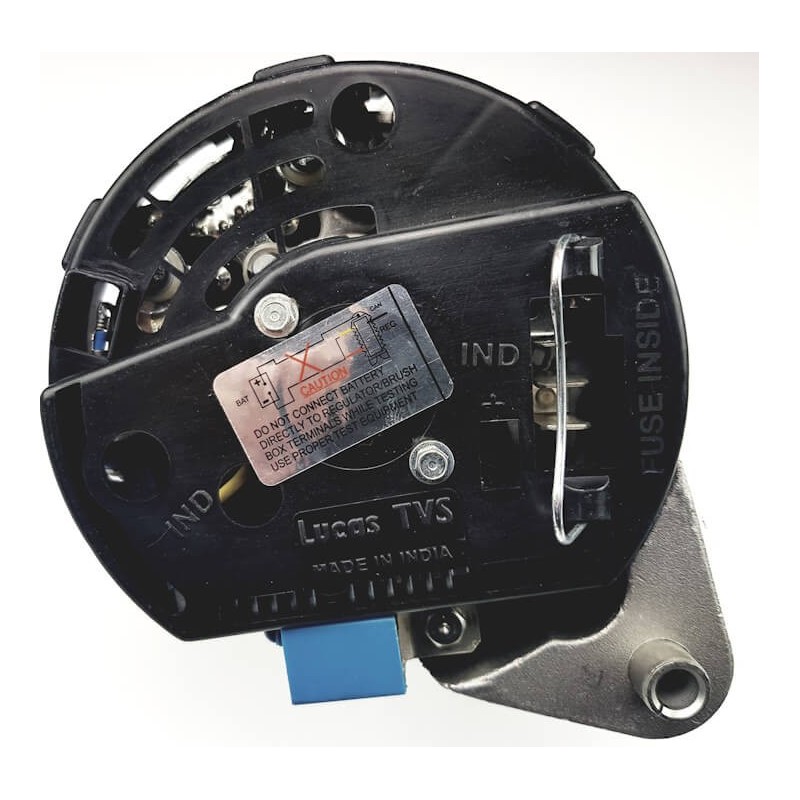

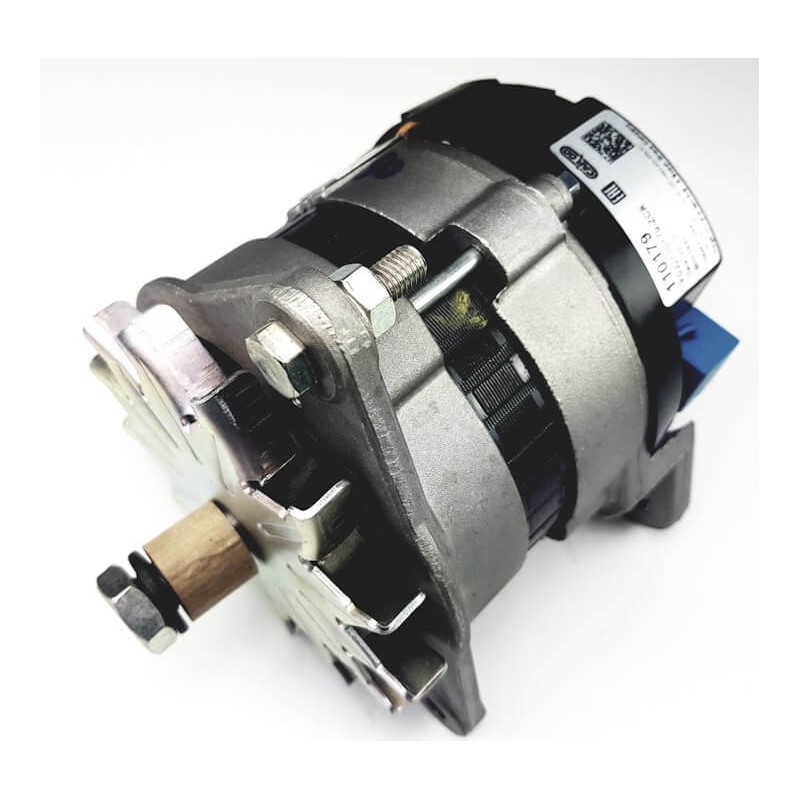

Alternator replacing LUCAS 54022084 / 54022011 / 54021985

For pulley with 17.00 mm holes used ring w134894

Information:

Voltage 14

Amp 36

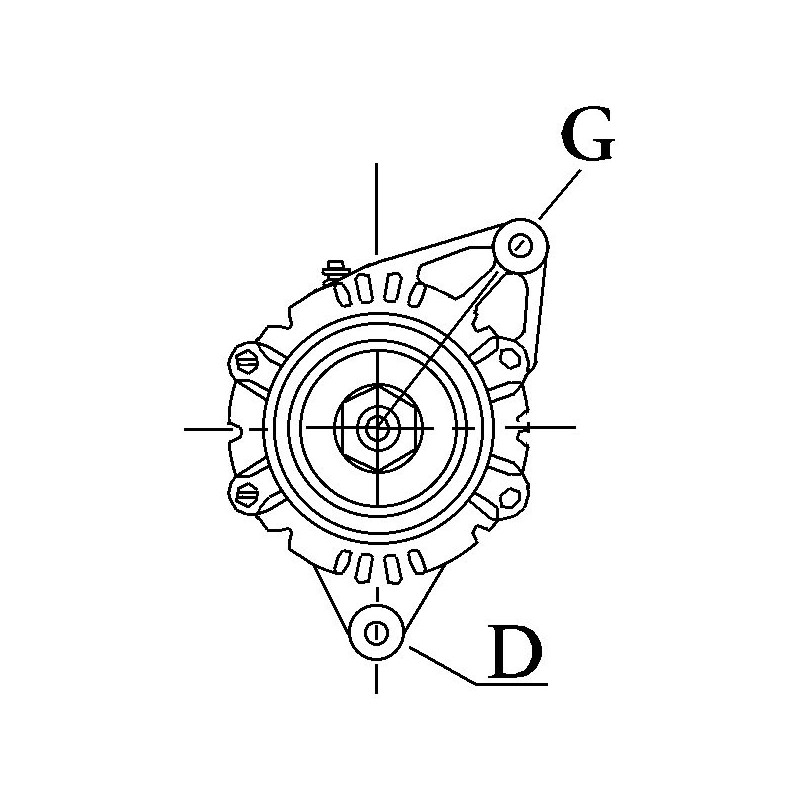

D = Bracket hole 8.20

G = Belt. adj. bracket hole 8.20

B = Width/holder arm 9.75

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 88.00

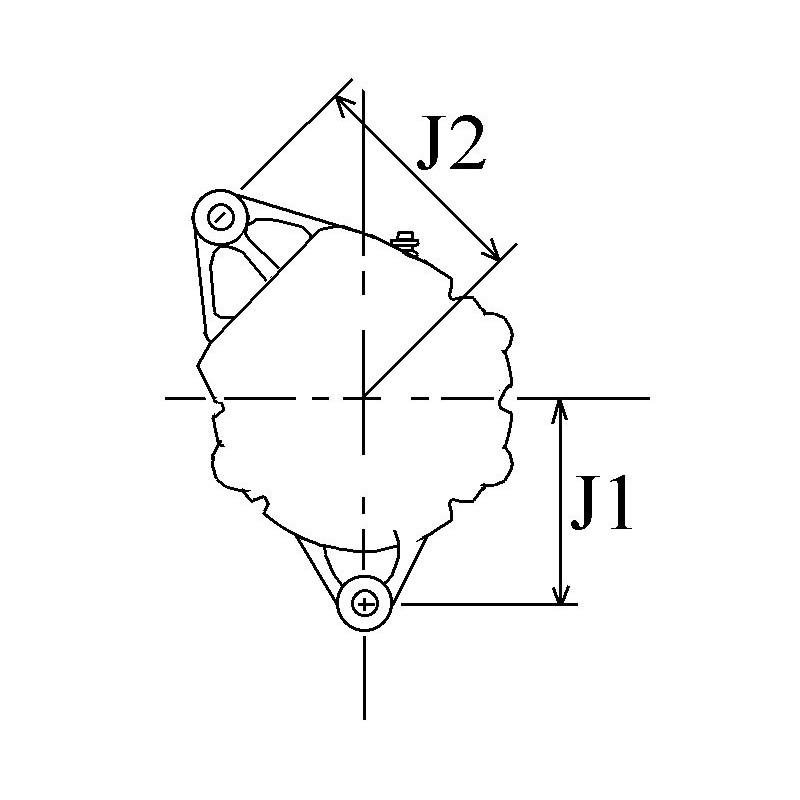

J = Radius 81.00

J = Radius 83.00

Position B + 9.4

 Rotation Cr

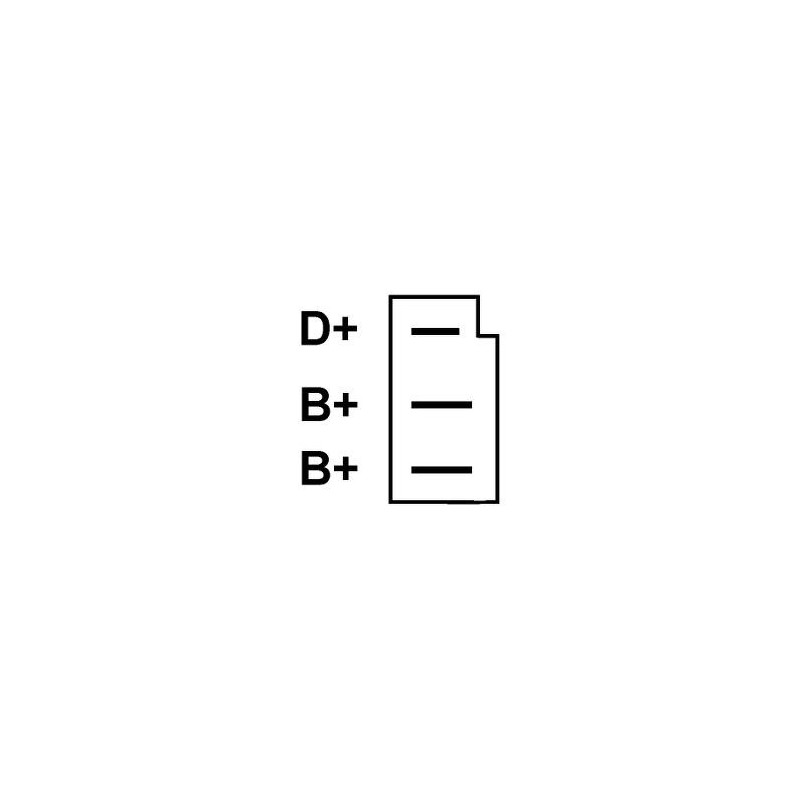

Plug no. 1 PL22

Fan Ef

Pulley Without

R = Total length mm 162.00

rotor diameter (threaded part) 13.5 mm / rotor shaft length after fan 30 mm

Brand cargo Bosch

replacing
