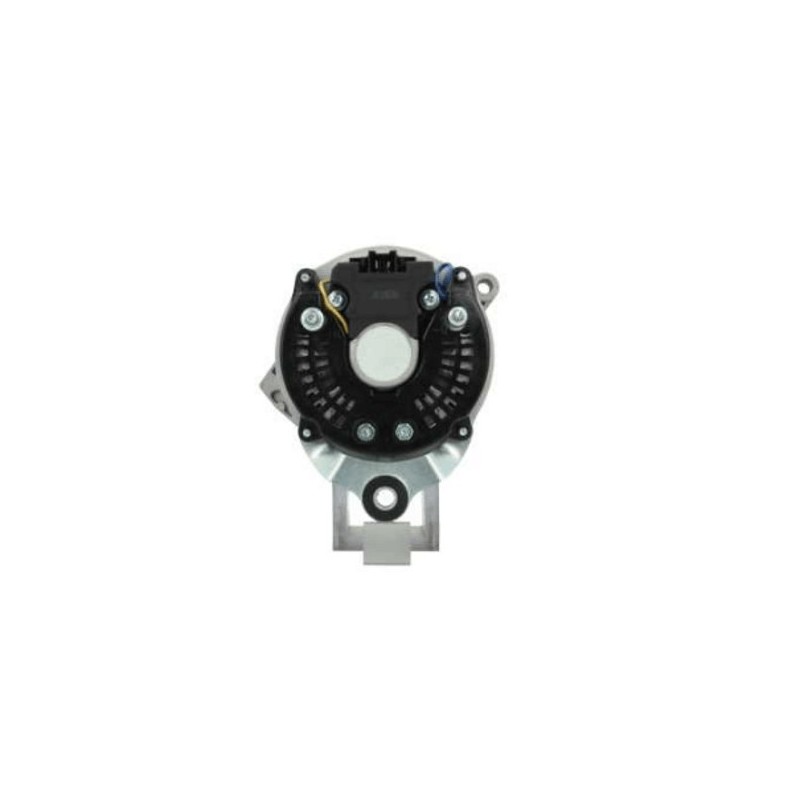

Alternator replacing VALEO A14N1 / A14N2 / A14N55 / A14R37 / 433368
Alternator replacing VALEO A14N1 / A14N2 / A14N55 / A14R37 / 433368
= 098603241 / 570282 / 570575 / 570582 / 5705C3 / 5705HE / DRA2241 / LRA818
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.78/14.13 |
| G | Belt. adj. bracket hole | 8.60 |
| B | Width/holder arm | 35.90 |
| E | Belt. adj. brackethole pos. | 51 |
| C | Mount. bracket dist | 53.00 |
| H | Pulley dia. | 73.00 |
| A | Pulley dist. | 61.85 |
| i | Grooves/pulley | 1 |

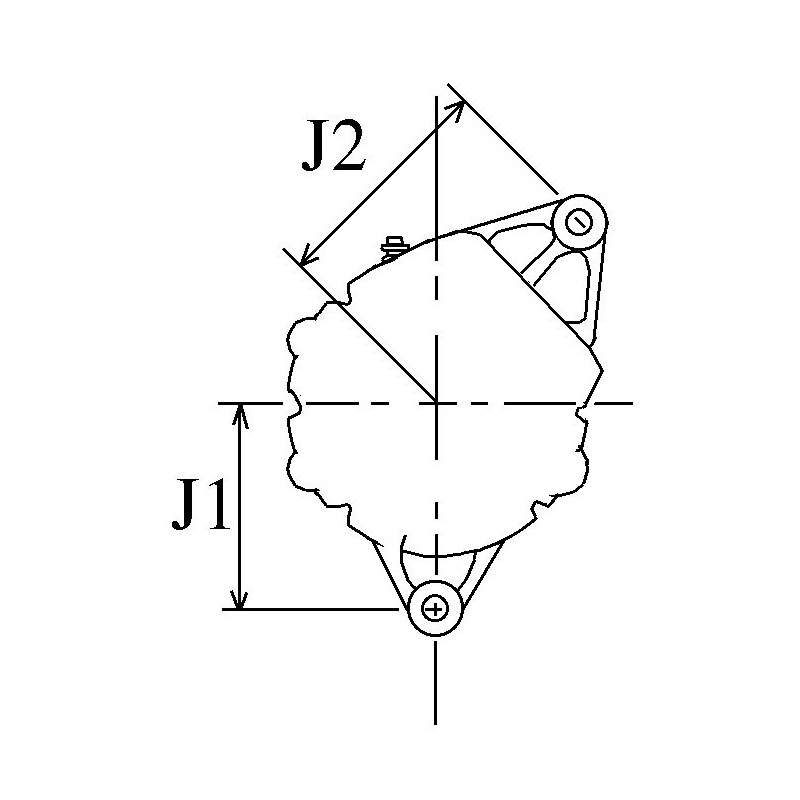

| j | Radius | 82.30 |
| j | Radius 2 | 85.70 |
| k | Position B + | M6 |
| n | Rotation | COUNTER CLOCKWISE |

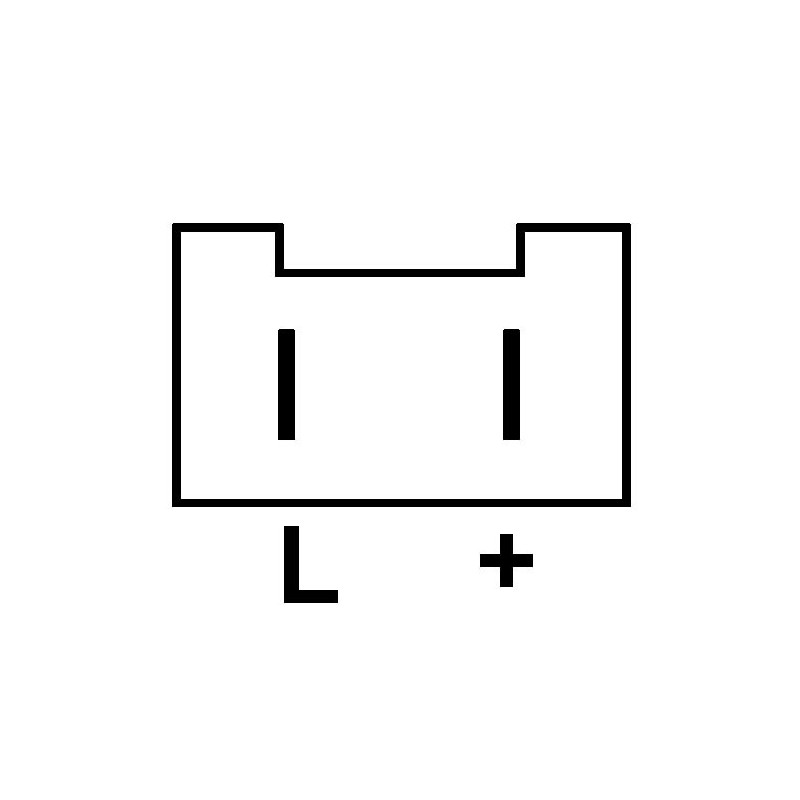

| o | Plug no. 1 | PL27 |
| R | Total length mm | 172.00 |
generic brand
= Reference :
| 0986032241 |
| 2104084 |
| 225008065 |
| 3097 |
| 3097SP |
| 310109X |
| 433368 |
| 451067 |
| 451068 |
| 510194 |
| 510195 |
| 516013 |
| 516015 |
| 5451706 |
| 555799 |
| 570282 |
| 570575 |
| 570582 |
| 5705C3 |
| 5705HE |
| 5705Z5 |
| 9032241F |
| 932241 |
| 943356142 |
| 95493164 |
| 95493165 |
| 95494135 |
| 95494137 |
| 95495989 |
| 95653974 |
| 9AR2730P |
| 9AR2731R |
| 9AR2872P |
| 9AR2874R |
| A14N1 |
| A14N2 |
| A14N55 |
| A14R37 |
| A14R43 |
| CA175IR |
| DRA2241 |
| HCA175IR |
| LRA818 |
| W23403 |
| 2940275 | MOTOROLA |
| 2940275 | VALEO |
| 2941232 | VALEO |
| 451068 | DUCELLIER |
| 516013 | DUCELLIER |
| 516013a | DUCELLIER |
| 516013b | DUCELLIER |
| 516013bc | DUCELLIER |
| 516013c | DUCELLIER |
| 516015 | DUCELLIER |
| 516015a | DUCELLIER |
| 555799 | PEUGEOT |
| 95494135 | PEUGEOT |
| 95494137 | PEUGEOT |
| 95495989 | PEUGEOT |
| 95653974 | PEUGEOT |
| 9ar2730p | MOTOROLA |
| 9ar2731r | MOTOROLA |
| 9ar2872p | MOTOROLA |
| 9ar2874r | MOTOROLA |
| a14n1 | VALEO |
| a14n2 | VALEO |
| a14n55 | VALEO |
| a14r26 | VALEO |
| a14r28 | VALEO |
| ca175ir | HC-PARTS |
fits:
| CITROEN | C25 | 2.5 Turbo Diesel | 10/81 | 12/92 |
| CITROEN | CX | 2.4/2.5 | 10/74 | / |
| CITROEN | CX | Turbo Diesel | 07/79 | 03/83 |
| PEUGEOT | J5 | Turbo Diesel | 10/81 | / |
