Alternator replacing :
HYUNDAI 37300-42354, 37300-42355, 37300-42356, 37300-42357, 37300-42358, 37300-42360, 3730042359, Kia 37300-42360, MANDO AF111364, MAGNETI MARELLI 063532608010, VALEO TA000A57301
NO CORE EXCHANGE NEEDED
GARANTIE 1 AN
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |

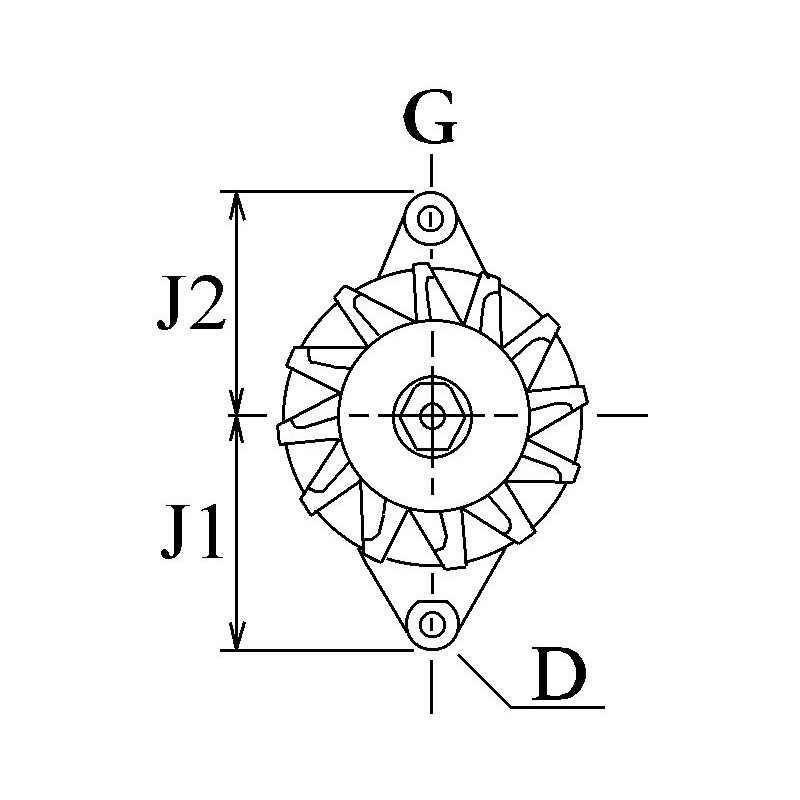

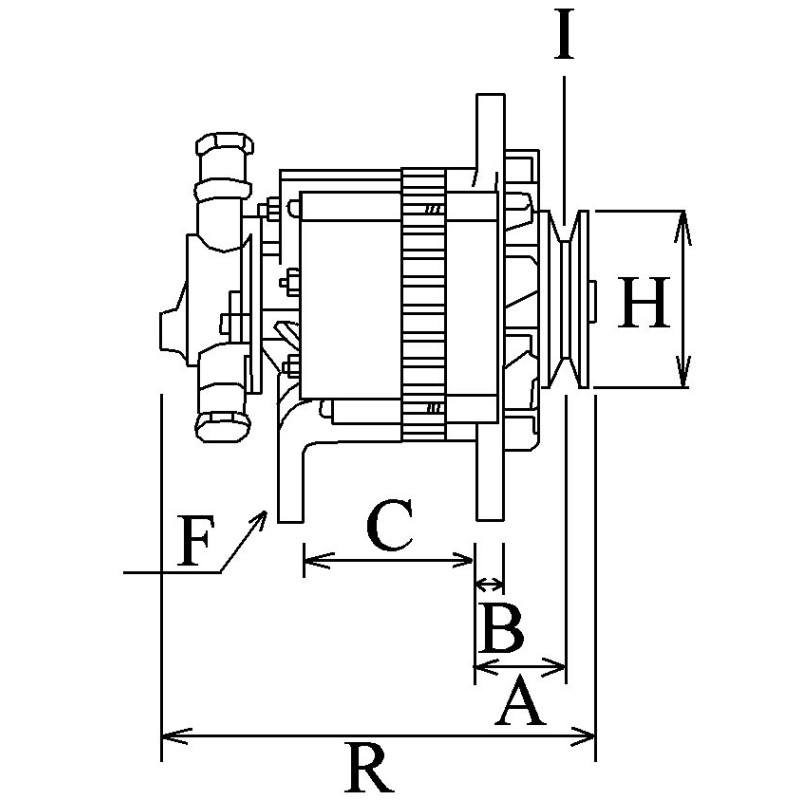

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 5 |
| C | Mount. bracket dist | 55.00 |
| H | Pulley dia. | 85.10 |
| A | Pulley dist. | 42.20 |
| i | Grooves/pulley | 2 |
| j | Radius | 90.50 |
| j | Radius 2 | 97.50 |
| k | Position B + | M8 |
| n | Rotation | CW |

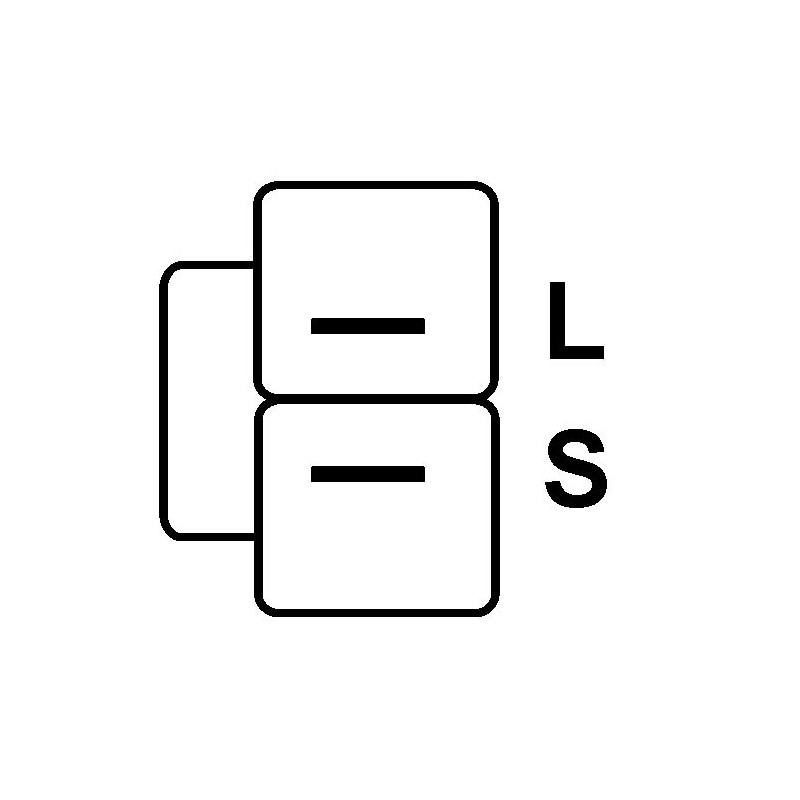

| o | Plug no. 1 | PL07 |
| R | Total length mm | 233.00 |
generic brand
Replacing | |
|---|---|
| 37300-32354 | KIA |
| 37300-42353 | KIA |
| 37300-42354 | KIA |
| 37300-42355 | KIA |
| 37300-42356 | KIA |
| 37300-42357 | KIA |
| 37300-42358 | KIA |
| 37300-42359 | KIA |
| 37300-42360 | KIA |
| af111364 | VALEO |
| ja1518ir | HC-PARTS |
| TA000A57301 | VALEO |
| 063532608010 | MARELLI |
| 0986080020 | BOSCH l |
| 112333 | Cargo |
| 12060517 | EuroTec |
| 12060734 | EuroTec |
| 12060755 | EuroTec |
| 155603110 | PSH |
| 22862N | WAI |
| 22862R | WAI |
| 283721 | Elstock |
| 3730042350 | Kia |
| 3730042354 | Kia |
| 3730042355 | Kia |
| 3730042356 | Kia |
| 3730042357 | Kia |
| 3730042358 | Kia |
| 3730042359 | Kia |
| 3730042360 | Kia |
| 56991 | EAI |
| 5839SP | Spidan |
| 600012 | VALEO |
| 9060501F | Friesen |
| ACA978 | ATK |
| AF111364 | VALEO |
| ALTH091 | UNIPOINT |
| ALTV063 | UNIPOINT |
| DMX142081 | |
| DRA4173 | DELCO REMY |
| F04230D002 | BOSCH |
| F042A0H091 | UNIPOINT |
| HJA1518IR | HC |
| J5110501 | Nipparts |
| JA1518IR | HC |
| L45570 | ATL |
| L69270 | ATL |
| L69340 | ATL |
| LRA01862 | LUCAS |
| TA000A57301 | VALEO |
Mounted on :
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H-1 | H-1 | 2.5 | Diesel | 2001 10 | - | D4BH | TD | 74 | 101 | Boîte/Trucksnette | 2476 | 4 | Klimaanlæg | ||
| H-1 | H-1 | 2.5 | Diesel | 2000 03 | 2000 09 | D4BF | TD | 59 | 80 | Boîte/Trucksnette | 2476 | 4 | |||
| H-1 | H-1 | 2.5 | Diesel | 2000 03 | - | D4BH | TD | 73 | 99 | Boîte/Trucksnette | 2476 | 4 | Air condition | ||
| H-1 | H-1 | 2.5 | Diesel | 2006 06 | 2007 12 | D4CB | CRDi | 81 | 110 | De bus | Starex | 2497 | 4 | KMF | |
| H-1 | H-1 | 2.5 | Diesel | 1997 10 | - | D4BF | Diesel | 57 | 78 | De bus | Starex | 2476 | 4 | KMF | Air condition |
| Satellite | Satellite | 2.5 | Diesel | 1997 10 | - | 4D56TC | TD | 63 | 85 | De bus | 2477 | 4 | |||
| Starex | Starex | 2.5 | Diesel | 1997 06 | - | D4BF | TD | 59 | 80 | MPV | 2476 | 4 | H1 | ||
| Starex | Starex | 2.5 | Diesel | 1998 02 | - | D4BF | TD | 59 | 80 | MPV | 4WD | 2476 | 4 |
| Brand | Model | Tipo | Year | Remarks |
| HYUNDAI | H-1 2.5 Diesel Starex | [D4BB] | 01/10/97 | AC |
| HYUNDAI | H-1 2.5 TD | [D4BF] | 03.2000-09.2000 | AC |
| HYUNDAI | H-1 2.5 TD | [D4BH] | 01/03/00 | AC |
| HYUNDAI | H-1 2.5 TD Starex | [D4BF] | 01/10/97 | AC |
| HYUNDAI | H-1 2.5 TD Starex | [D4BH] | 01/10/99 | AC |
| HYUNDAI | H-1 2.5 TD Starex 4WD | 01/03/01 | AC | |
| HYUNDAI | H-1 2.5 TD Starex 4WD | 01/11/01 | ||
| HYUNDAI | Satellite 2.5 TD | [4D56TC] | 01/10/97 | |
| HYUNDAI | Starex 2.5 TD | [D4BF] | 01/06/97 | AC |
| HYUNDAI | Starex 2.5 TD 4WD | [D4BF] | 01/02/98 | AC |
| KIA | K2500 2.5 TCi | [D4BH] | 01/09/01 | |
| KIA | Pregio 2.5 Diesel | [D4BH] | 08.1995-09.2004 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
