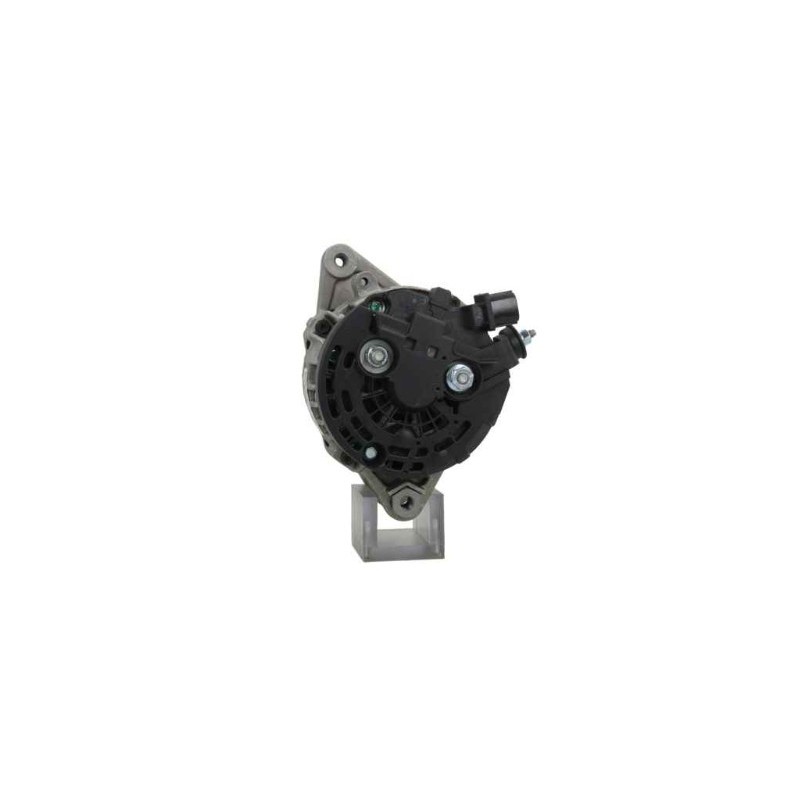

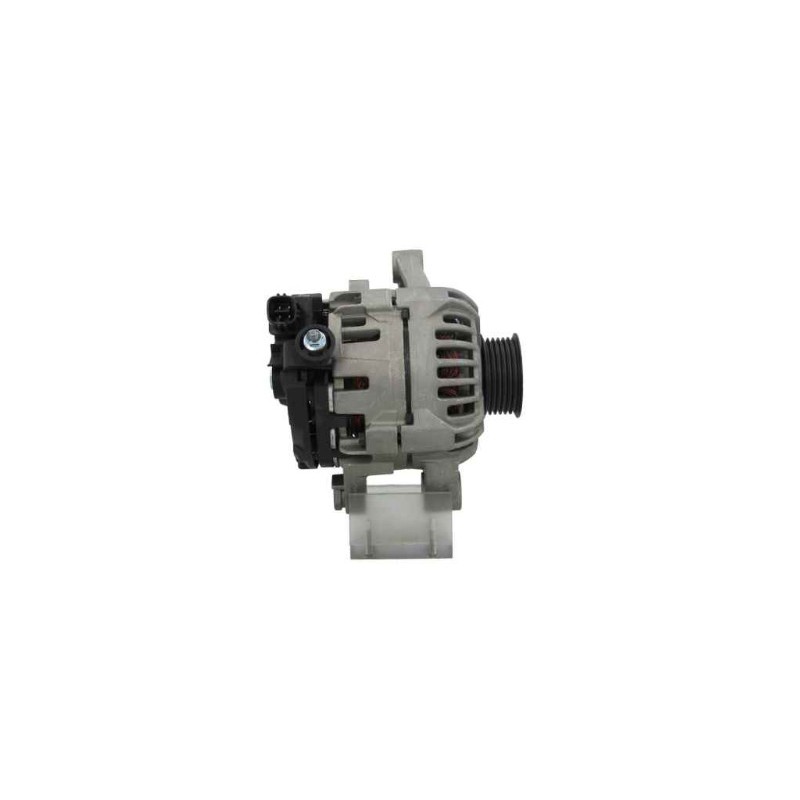

Alternator NEW replacing BOSCH 0124225053 / 0986080460 / TOYOTA 27060-0j061
Alternator NEW replacing BOSCH 0124225053 / TOYOTA 27060-0j061
= 0986080460 / CA1942IR / DRA0622 / LRA03188 / N5111238 / TRA291
fits TOYOTA Yaris 1.3 essence
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.5 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 27.0 |
| E | Belt. adj. brackethole pos. | 4 |
| C | Mount. bracket dist | 39.0 |
| H | Pulley dia. | 55,0 |
| A | Pulley dist. | 48.0 |
| i | Grooves/pulley | 6 |
| j | Radius | 80 |
| j | Radius 2 | 90 |
| k | Position B + | M6 |
| n | Rotation | CW |

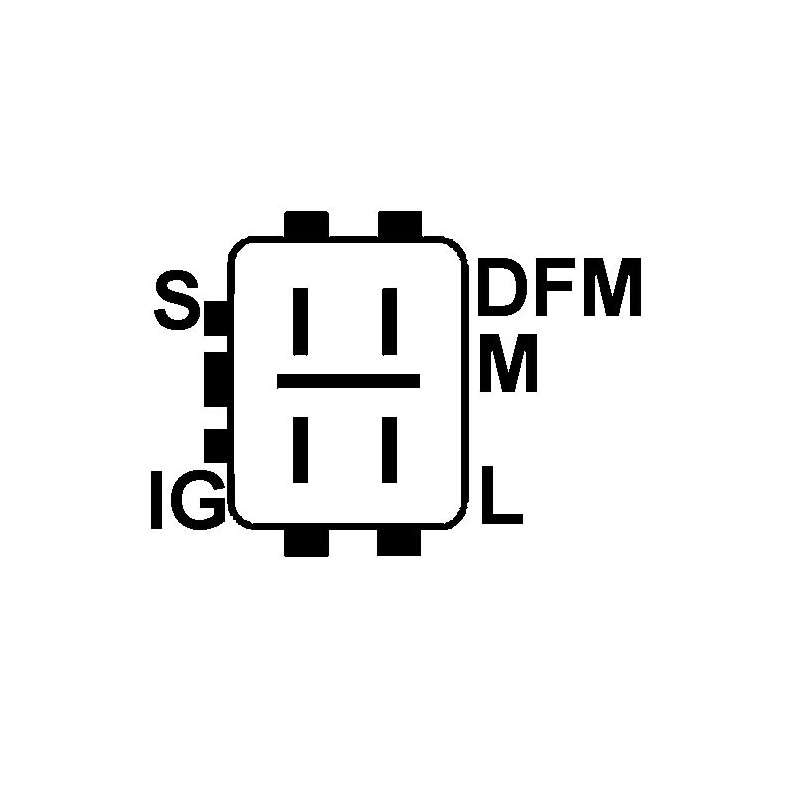

| o | Plug no. 1 | PL78 |
| R | Total length mm | 170.00 |
Replacing | |
|---|---|
| 0124225053 | BOSCH |
| 27060-0j061 | TOYOTA |
| ca1942ir | HC-PARTS |
Fits :
| TOYOTA | Yaris | 1.3 | Unleaded | 2005 08 | - | 2SZ-FE | VVTi | 64 | 87 | Hayon | 1298 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
