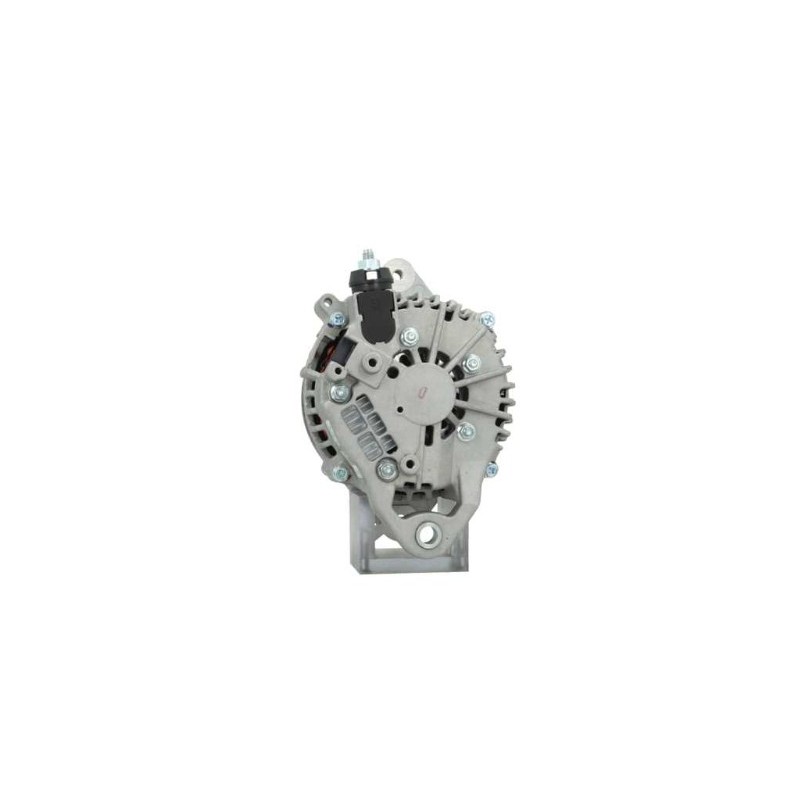

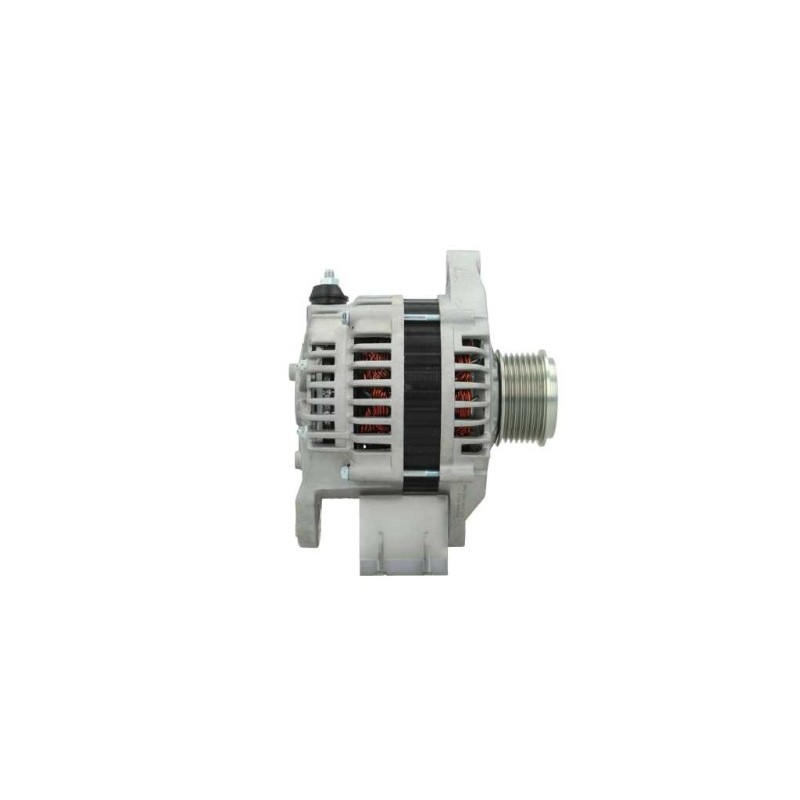

Alternator NEW replacing HITACHI LR190-752 / LR190-752B / NISSAN 23100-vc100

Reference: w113787

Condition: New product

8 Item Items

Alternator NEW replacing HITACHI LR190-752 / LR190-752B / LR190-752C / LR190-752H

= NISSAN 23100-vc100 / 23100-VC10A / 23100-vc10b / 23100-VC10C / 23100-VS40C

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info
Data sheet

More info

Information:

Electrical Information
Voltage		14
Amp		90

Physical Information
D	Bracket hole	10.30
G	Belt. adj. bracket hole	M8
B	Width/holder arm	13.00
E	Belt. adj. brackethole pos.	60
C	Mount. bracket dist	81.00
H	Pulley dia.	59.75
A	Pulley dist.	37.50
i	Grooves/pulley	7
j	Radius	84.00
j	Radius 2	86.00
k	Position B +	M8
n	Rotation	Cr

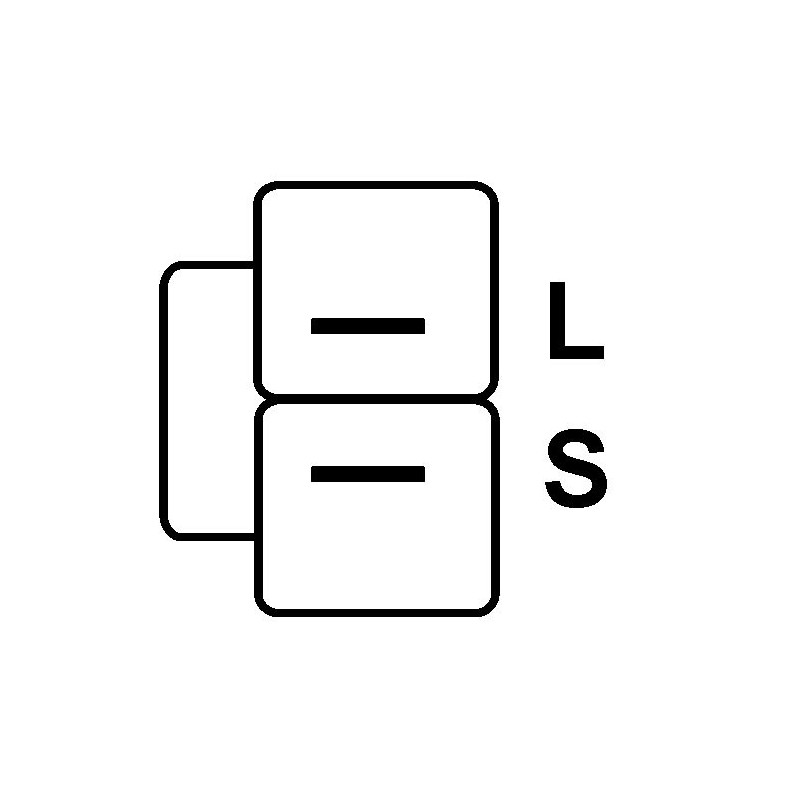

o	Plug no. 1	PL07
R	Total length mm	191.00

Replacing :

Replacing
23100-vc100	NISSAN
23100-VC10A	NISSAN
23100-vc10b	NISSAN
23100-VC10C	NISSAN
23100-VS40C	NISSAN
ja1602ir	HC-PARTS
LR190-752	HITACHI
LR190-752B	HITACHI
LR190-752C	HITACHI
lr190-752h	HITACHI

NPS N511N15

Generic Brand

fits:

Brand	Model	Tipo	Year
NISSAN	Patrol GR 3.0 DTi	[ZD30DDTi]	05.2000-
NISSAN	Terrano 3.0 Di 4WD	[ZD30]	05.2002-09.0207

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Data sheet

Poulie	serpentine
Connecteur régulateur	PL6
Ampérage	140
Voltage	14
