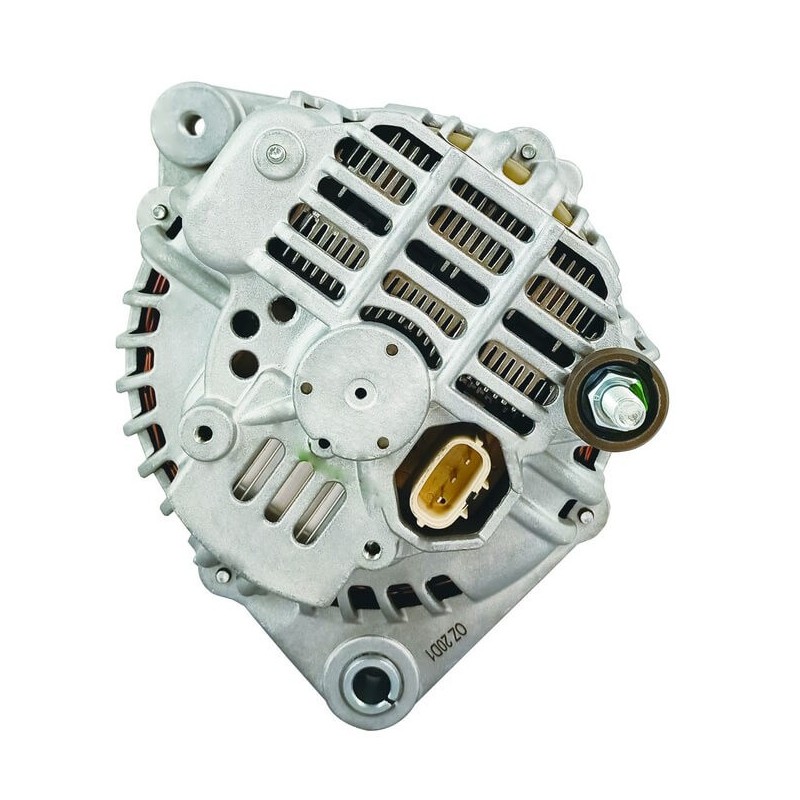

Alternator replacing A004T8491 / A004TA0591 / A004TA8491 for Iveco truck
Replacing | |
|---|---|
| 0123525500 | Bosch |
| 0123525503 | Bosch |
| 500331736 | Iveco |
| 504065776 | Iveco |
| 504286394 | Iveco |
| 99477271 | Iveco |
| A004TA0591 | Mitsubishi |
| A004TA8491 | Mitsubishi |
| A4TA0591 | Mitsubishi |
| A4TA8491 | Mitsubishi |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 90.00 |
| B | Width/holder arm | 58.10 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 7 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 62.00 |
| I | Grooves/pulley | 10 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 58 |
| N | Rotation | CW |

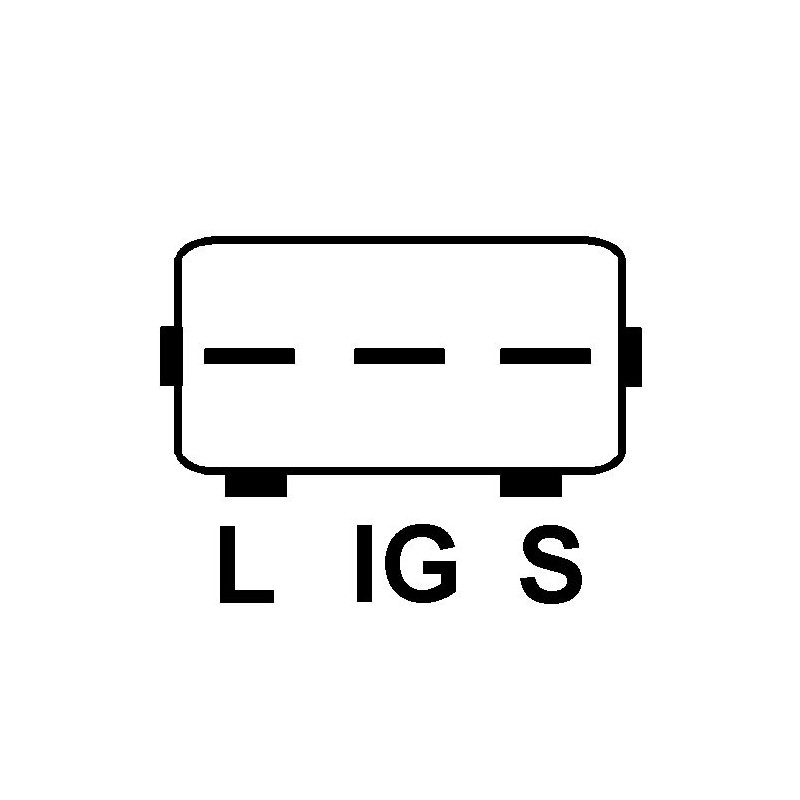

| O | Plug no. 1 | PL42 |
| R | Total length mm | 213.00 |
Electrical information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 90 | |
generic brand
| 0123520500 | Bosch |
| 0123525500 | Bosch |
| 0123525500SEL | +line |
| 0986045170 | Bosch ruil |
| 11209453 | Mahle |
| 113923 | Cargo |
| 115879 | Cargo |
| 12045170 | EuroTec |
| 12046040 | EuroTec |
| 2205305B | PIC |
| 23518 | Lucas |
| 500331736 | Iveco |
| 5006008914 | Iveco |
| 504114396 | Iveco |
| 504286394 | Iveco |
| 506502090 | PSH |
| 6491SP | Spidan |
| 72477204 | Mahle |
| 75921 | EAI |
| 8600399 | Remy |
| 860710 | Prestolite |
| 945170 | EDR |
| 9945170F | Friesen |
| 9945430F | Friesen |
| 99477271 | |
| A004TA8491 | Mitsubishi |
| A4TA8491 | Mitsubishi |
| AAN5794 | Mahle |
| ALT3523B | Unipoint |
| CA2040IR | HC |
| DRB5170 | Remy |
| DRB5170N | Remy |
| DRB5170X | Remy |
| F042A03079 | Bosch |
| HCA2040IR | HC |
| IA9484 | Mahle |
| LRA02518 | Lucas |
| MG883 | Mahle |
| TRA303 | TWA |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
