w113998

Alternator NEW for Camion MAN

= ISKRA / MAHLE IA9459 / AAN5399 / 11.209.607

= MAN 51.26101-7253 / 51.26101-7259 / 51.26101-7268 / 51.26101-7559 / 51.26101-9250

Sold WITHOUT pulley

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

€199.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
2-year warranty
No instructions, no return of the old
Secure payments

Features

Physical Information
D Bracket hole 11.00
G Belt. adj. bracket hole 12.30
B Width/holder arm 79.50
E Belt. adj. brackethole pos. 10
E Ceinture from soutien réglable/ pos. 2 50
j Radius 93.00
j Radius 2 90.00
j Radius 3 90.00
k Position B + M8
n Rotation Cr
o Plug no. 1 PL82
G Belt. adj. bracket hole 2 2 12.30

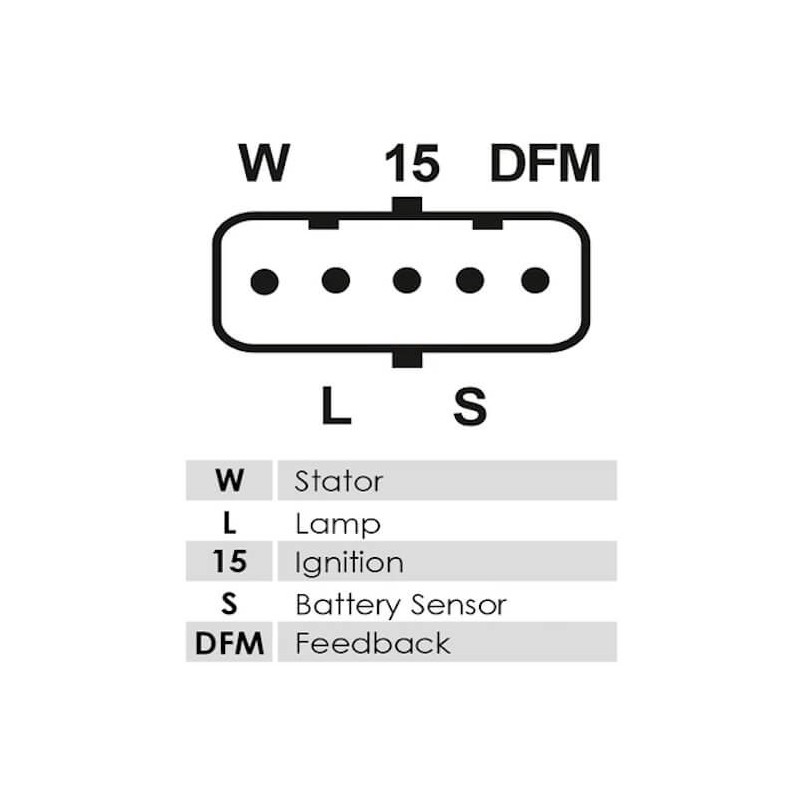

Q Tipo prise W Plug
R Total length mm 198.00
Electrical Information
Voltage 28
Amp 110
Plug type W

Generic brand

replacing

0124655011 Bosch
0124655047 Bosch
012465504A Bosch
0124655194 Bosch
0986047520 Bosch ruil
10326243 Opel
11209611 Mahle
115492 Cargo
12201170 AES
19092050 Remy
1986A00519 Bosch
1986A00970 Bosch
485557 Elstock
51261017253 MAN
51261017259 MAN
51261017268 MAN
556508110 PSH
72446572 Mahle
72525343 Mahle
860811 Prestolite
AAN5399 Mahle
ALT10305 Wood Auto
BOS0124655011 Wood Auto
DRB7520 Remy
DRB7520X Remy
IA9459 Mahle
LRA02943 Lucas
LRA2943 Lucas
MG795 Mahle
RNL4752 RNL
RNL4752NR RNL
RNL4752OER RNL
RNL4752P RNL
SEG0124655194 Wood Auto
WOOALT10305 Wood Auto

Fits :

Brand Model Typ Year
MAN 18.360 10.5 (TGA)[D2066LF38] 01/01/06
MAN 28.460 12.8 (TGA)[D2876LF04] 01/09/02
MAN 19.480 12.4 (TGS)[D2676LF02] 01/02/11
MAN 19.480 12.4 (TGS)[D2676LF03] 01/02/11
MAN 19.480 12.4 (TGS)[D2676LF20] 01/02/11
MAN 37.360 10.5 (TGS)[D2066LF27] 01/10/07
MAN 19.400 10.5 (TGS)[D2066LF06] 01/02/11
MAN 19.480 12.4 (TGS)[D2676LF31] 01/02/11
MAN 37.360 10.5 (TGS)[D2066LF38] 01/10/07
MAN 40.460 12.8 (TGA)[D2876LF07] 01/04/04
MAN 19.400 10.5 (TGS)[D2066LF49] 01/02/11
MAN 33.360 10.5 (TGA)[D2066LF07] 09.2007-09.2006
MAN 33.410 12.0 (TGA)[D2866LF28] 01/10/00
MAN 37.360 10.5 (TGS)[D2066LF42] 01/10/07
MAN 15.250 6.9 (TGM)[D0836LFL63] 01/10/05
MAN 19.400 10.5 (TGS)[D2066LF63] 01/02/11
MAN 33.360 10.5 (TGS)[D2066LF38] 02.2009-06.2005
MAN 33.410 12.0 (TGA)[D2866LF32] 01/10/00
MAN 37.360 10.5 (TGS)[D2066LF42] 01/07/08
MAN 28.510 12.8 (TGA)[D2876LF05] 01/09/02
MAN 33.360 10.5 (TGS)[D2066LF38] 01/02/09
MAN 28.410 12.0 (TGA)[D2866LF28] 01/09/02
MAN 33.360 10.5 (TGS)[D2066LF42] 02.2009-06.2005
MAN 33.360 10.5 (TGS)[D2066LF42] 02.2009-12.2005
MAN 18.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 41.440 10.5 (TGS)[D2066LF25] 01/10/07
MAN 41.440 10.5 (TGS)[D2066LF36] 01/10/07
MAN 41.440 10.5 (TGS)[D2066LF36] 01/07/08
MAN 41.440 10.5 (TGS)[D2066LF40] 01/10/07
MAN 41.440 10.5 (TGS)[D2066LF40] 01/07/08
MAN 13.290 6.9 (TGM)[D0836LFL64] 01/10/05
MAN 35.360 10.5 (TGA)[D2066LF38] 01/07/06
MAN 35.360 10.5 (TGS)[D2066LF27] 01/10/07
MAN 35.360 10.5 (TGS)[D2066LF38] 01/10/07
MAN 35.360 10.5 (TGS)[D2066LF38] 01/08/08
MAN 35.360 10.5 (TGS)[D2066LF42] 01/10/07
MAN 24.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 33.400 10.5 (TGA)[D2066LF02] 09.2007-03.2006
MAN 35.360 10.5 (TGS)[D2066LF42] 01/08/08
MAN 35.360 12.0 [D2866LF27] 01/10/03
MAN 28.530 12.8 (TGA)[D2876LF13] 01/09/02
MAN 33.530 12.8 (TGA)[D2876LF13] 01/09/02
MAN 33.400 10.5 (TGA)[D2066LF06] 01/09/07
MAN 40.480 12.8 (TGA)[D2876LF12] 01/04/04
MAN 33.400 10.5 (TGS)[D2066LF37] 01/02/09
MAN 40.480 12.8 (TGA)[D2876LF25] 01/04/04
MAN 33.400 10.5 (TGS)[D2066LF41] 02.2009-09.2006
MAN 28.480 12.4 (TGA)[D2676LF02] 01/02/06
MAN 28.480 12.4 (TGA)[D2676LF05] 01/02/06
MAN 28.480 12.4 (TGA)[D2676LF14] 01/02/06
MAN 35.440 10.5 (TGA)[D2066LF36] 01/07/06
MAN 26.330 6.9 (TGM)[D0836LFL55] 01/10/05
MAN 35.440 10.5 (TGA)[D2066LF36] 01/11/06
MAN 40.400 10.5 (TGS)[D2066LF06] 01/02/11
MAN 40.400 10.5 (TGS)[D2066LF49] 01/02/11
MAN 40.400 10.5 (TGS)[D2066LF63] 01/02/11
MAN 15.280 6.9 (TGM)[D0836LFL41] 01/10/05
MAN 15.280 6.9 (TGM)[D0836LFL54] 01/10/05
MAN 28.540 12.4 (TGA)[D2676LF13] 01/08/06
MAN 26.400 10.5 (TGA)[D2066LF37] 01/01/04
MAN 26.400 10.5 (TGA)[D2066LF37] 01/04/06
MAN 26.400 10.5 (TGS)[D2066LF26] 01/02/09
MAN 26.400 10.5 (TGS)[D2066LF37] 01/10/07
MAN 26.400 10.5 (TGS)[D2066LF37] 01/05/08
MAN 18.340 6.9 (TGM)[D0836LFL65] 01/10/05
MAN 26.400 10.5 (TGS)[D2066LF37] 01/07/08
MAN 26.400 10.5 (TGS)[D2066LF37] 01/02/09
MAN 28.310 12.0 (TGA)[D2866LF26] 01/09/02
MAN 33.360 12.0 (TGA)[D2866LF27] 01/01/01
MAN 26.280 6.9 (TGM)[D0836LFL54] 01/10/05
MAN 26.400 10.5 (TGS)[D2066LF41] 01/07/08
MAN 32.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 33.360 12.0 (TGA)[D2866LF27] 01/09/02
MAN 26.400 10.5 (TGS)[D2066LF41] 01/02/09
MAN 33.360 12.0 (TGA)[D2866LF37] 01/09/02
MAN 19.360 10.5 (TGS)[D2066LF07] 01/02/11
MAN 19.360 10.5 (TGS)[D2066LF48] 01/02/11
MAN 33.460 12.8 (TGA)[D2876LF04] 01/09/02
MAN 19.360 10.5 (TGS)[D2066LF64] 01/02/11
MAN 28.360 12.0 (TGA)[D2866LF27] 01/09/02
MAN 32.440 10.5 (TGS)[D2066LF36] 01/08/08
MAN 33.460 12.8 (TGA)[D2876LF07] 01/09/02
MAN 35.480 12.4 (TGA)[D2676LF05] 01/07/06
MAN 18.480 12.4 (TGA)[D2676LF05] 01/02/06
MAN 28.320 10.5 (TGA)[D2066LF39] 01/06/04
MAN 18.480 12.4 (TGA)[D2676LF12] 01/02/06
MAN 28.320 10.5 (TGS)[D2066LF39] 01/07/08
MAN 18.290 6.9 (TGM)[D0836LFL64] 01/10/05
MAN 28.320 10.5 (TGS)[D2066LF43] 01/07/08
MAN 28.440 10.5 (TGA)[D2066LF25] 01/09/05
MAN 24.530 12.8 (TGA)[D2876LF13] 01/09/01
MAN 28.440 10.5 (TGA)[D2066LF36] 01/09/05
MAN 28.440 10.5 (TGA)[D2066LF36] 01/07/06
MAN 40.410 12.0 (TGA)[D2866LF28] 01/04/04
MAN 28.360 10.5 (TGA)[D2066LF38] 01/07/06
MAN 28.440 10.5 (TGS)[D2066LF36] 01/08/08
MAN 40.410 12.0 (TGA)[D2866LF32] 01/04/04
MAN 26.340 6.9 (TGM)[D0836LFL65] 01/10/05
MAN 28.360 10.5 (TGS)[D2066LF38] 01/08/08
MAN 28.440 10.5 (TGS)[D2066LF40] 01/08/08
MAN 28.360 10.5 (TGS)[D2066LF42] 01/08/08
MAN 10.250 6.9 (TGL)[D0836LFL63] 01/04/05
MAN 18.530 12.8 (TGA)[D2876LF13] 01/09/02
MAN 41.390 10.5 (TGA)[D2066LF02] 01/09/07
MAN 35.310 12.0 (TGA)[D2866LF26] 01/06/03
MAN 35.310 12.0 (TGA)[D2866LF26] 01/11/03
MAN 8.220 4.6 (TGL)[D0834LFL65] 01/04/05
MAN 15.290 6.9 (TGM)[D0836LFL64] 01/10/05
MAN 26.530 12.8 (TGA)[D2876LF13] 01/01/01
MAN 18.240 6.9 (TGM)[D0836LFL40] 01/05/06
MAN 26.530 12.8 (TGA)[D2876LF13] 01/09/02
MAN 32.360 10.5 (TGS)[D2066LF38] 01/08/08
MAN 41.350 10.5 (TGA)[D2066LF03] 01/09/07
MAN 18.240 6.9 (TGM)[D0836LFL53] 01/05/06
MAN 26.530 12.8 (TGA)[D2876LF13] 01/07/06
MAN 41.480 12.8 (TGA)[D2876LF12] 01/07/06
MAN 19.440 10.5 (TGS)[D2066LF50] 01/02/11
MAN 19.440 10.5 (TGS)[D2066LF62] 01/02/11
MAN 35.320 10.5 (TGS)[D2066LF28] 01/10/07
MAN 37.320 10.5 (TGS)[D2066LF28] 01/10/07
MAN 35.320 10.5 (TGS)[D2066LF39] 01/10/07
MAN 37.320 10.5 (TGS)[D2066LF39] 01/10/07
MAN 35.320 10.5 (TGS)[D2066LF39] 01/06/08
MAN 37.320 10.5 (TGS)[D2066LF43] 01/10/07
MAN 35.320 10.5 (TGS)[D2066LF39] 01/08/08
MAN 13.250 6.9 (TGM)[D0836LFL63] 01/10/05
MAN 35.320 10.5 (TGS)[D2066LF43] 01/10/07
MAN 35.320 10.5 (TGS)[D2066LF43] 01/06/08
MAN 18.540 12.4 (TGA)[D2676LF13] 01/08/06
MAN 35.320 10.5 (TGS)[D2066LF43] 01/08/08
MAN 8.250 6.9 (TGL)[D0836LFL63] 01/04/05
MAN 35.480 12.8 (TGA)[D2876LF12] 01/09/03
MAN 35.480 12.8 (TGA)[D2876LF12] 01/10/03
MAN 35.410 12.0 (TGA)[D2866LF28] 01/10/03
MAN 35.480 12.8 (TGA)[D2876LF12] 01/07/06
MAN 10.220 4.6 (TGL)[D0834LFL65] 01/04/05
MAN 19.440 12.4 (TGS)[D2676LF04] 01/02/11
MAN 26.360 10.5 (TGA)[D2066LF38] 01/05/04
MAN 26.360 10.5 (TGA)[D2066LF38] 01/06/04
MAN 26.360 10.5 (TGA)[D2066LF38] 01/04/06
MAN 12.250 6.9 (TGL)[D0836LFL63] 01/04/05
MAN 26.360 10.5 (TGS)[D2066LF27] 01/08/08
MAN 39.440 10.5 (TGA)[D2066LF36] 01/07/06
MAN 26.360 10.5 (TGS)[D2066LF38] 01/10/07
MAN 26.480 12.4 (TGA)[D2676LF01] 01/02/06
MAN 33.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 12.220 4.6 (TGL)[D0834LFL65] 01/04/05
MAN 26.360 10.5 (TGS)[D2066LF38] 01/04/08
MAN 39.480 12.4 (TGA)[D2676LF05] 01/07/06
MAN 41.400 10.5 (TGA)[D2066LF06] 01/09/07
MAN 26.320 10.5 (TGA)[D2066LF39] 01/04/06
MAN 26.360 10.5 (TGS)[D2066LF38] 01/05/08
MAN 26.480 12.4 (TGA)[D2676LF05] 01/01/06
MAN 40.440 10.5 (TGS)[D2066LF50] 01/02/11
MAN 41.400 10.5 (TGA)[D2066LF06] 01/12/08
MAN 15.340 6.9 (TGM)[D0836LFL65] 01/10/05
MAN 26.320 10.5 (TGS)[D2066LF39] 01/10/07
MAN 26.360 10.5 (TGS)[D2066LF38] 01/08/08
MAN 26.480 12.4 (TGA)[D2676LF05] 01/02/06
MAN 40.440 10.5 (TGS)[D2066LF62] 01/02/11
MAN 26.320 10.5 (TGS)[D2066LF39] 01/07/08
MAN 26.360 10.5 (TGS)[D2066LF42] 04.2008-03.2009
MAN 26.320 10.5 (TGS)[D2066LF43] 01/07/08
MAN 26.360 10.5 (TGS)[D2066LF42] 01/08/08
MAN 26.360 10.5 (TGX)[D2066LF38] 01/10/07
MAN 35.400 10.5 (TGA)[D2066LF37] 01/02/04
MAN 41.360 10.5 (TGA)[D2066LF07] 01/12/08
MAN 26.360 10.5 (TGX)[D2066LF38] 01/07/08
MAN 35.400 10.5 (TGA)[D2066LF37] 01/07/06
MAN 26.360 10.5 (TGX)[D2066LF42] 01/07/08
MAN 35.400 10.5 (TGA)[D2066LF37] 01/11/06
MAN 32.400 10.5 (TGS)[D2066LF26] 01/10/07
MAN 35.400 10.5 (TGS)[D2066LF26] 01/10/07
MAN 41.360 10.5 (TGS)[D2066LF38] 01/07/08
MAN 28.400 10.5 (TGA)[D2066LF26] 01/04/06
MAN 32.400 10.5 (TGS)[D2066LF37] 01/10/07
MAN 35.400 10.5 (TGS)[D2066LF37] 01/10/07
MAN 41.360 10.5 (TGS)[D2066LF42] 01/07/08
MAN 18.250 6.9 (TGM)[D0836LFL63] 01/10/05
MAN 28.400 10.5 (TGA)[D2066LF37] 01/04/06
MAN 32.400 10.5 (TGS)[D2066LF37] 01/08/08
MAN 35.400 10.5 (TGS)[D2066LF37] 01/06/08
MAN 28.400 10.5 (TGA)[D2066LF37] 01/07/06
MAN 32.400 10.5 (TGS)[D2066LF41] 01/10/07
MAN 35.400 10.5 (TGS)[D2066LF37] 01/08/08
MAN 28.400 10.5 (TGS)[D2066LF37] 01/08/08
MAN 35.400 10.5 (TGS)[D2066LF41] 01/06/08
MAN 26.440 10.5 (TGA)[D2066LF31] 01/07/06
MAN 28.400 10.5 (TGS)[D2066LF41] 01/08/08
MAN 35.400 10.5 (TGS)[D2066LF41] 01/08/08
MAN 26.440 10.5 (TGA)[D2066LF36] 01/01/04
MAN 26.540 12.4 (TGA)[D2676LF13] 01/08/06
MAN 28.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 26.440 10.5 (TGA)[D2066LF36] 01/09/05
MAN 26.440 10.5 (TGS)[D2066LF25] 01/02/09
MAN 26.440 10.5 (TGS)[D2066LF36] 01/10/07
MAN 41.530 12.8 (TGA)[D2876LF13] 01/09/02
MAN 26.440 10.5 (TGS)[D2066LF36] 01/02/09
MAN 41.530 12.8 (TGA)[D2876LF13] 01/12/04
MAN 26.440 10.5 (TGS)[D2066LF40] 01/02/09
MAN 41.530 12.8 (TGA)[D2876LF13] 01/07/06
MAN 26.440 10.5 (TGX)[D2066LF36] 01/12/07
MAN 15.240 6.9 (TGM)[D0836LFL40] 01/10/05
MAN 26.440 10.5 (TGX)[D2066LF36] 01/05/08
MAN 35.530 12.8 (TGA)[D2876LF13] 01/06/04
MAN 18.440 10.5 (TGA)[D2066LF25] 01/09/05
MAN 35.530 12.8 (TGA)[D2876LF13] 01/07/06
MAN 15.240 6.9 (TGM)[D0836LFL53] 01/10/05
MAN 18.440 10.5 (TGA)[D2066LF36] 01/09/05
MAN 26.480 12.8 (TGA)[D2876LF12] 01/09/02
MAN 40.440 12.4 (TGS)[D2676LF04] 01/02/11
MAN 33.390 10.5 (TGA)[D2066LF02] 01/09/07
MAN 18.360 10.5 (TGA)[D2066LF07] 01/01/06
MAN 18.360 10.5 (TGA)[D2066LF27] 01/01/06
MAN 33.390 10.5 (TGA)[D2066LF06] 09.2007-03.2006
Do you have any questions?

Do you have any questions?

Wagendass is committed to the durability of your vehicle

Wagendass is committed to the durability of your vehicle

New parts, no deposit, 2-year guarantee

Spare parts warranties with Wagendass

  • New parts
  • No deposits
  • 2-year warranty for all vehicle types

How to find your replacement part on the Wagendass website?

The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.

The part number can be numeric or alphanumeric, and can be found on your part.

Once you've found the part number, enter it in the search bar at the top center of our site.

The result will be the replacement part matching your part number.

Spare parts warranties with Wagendass
New parts

Original and adaptable

No deposits

No return of the old

Secure payments

Amex,CB,Visa,MasterCard in 3D Secure and PayPal

Fast delivery

France and International

Loading...
