Alternator replacing BOSCH

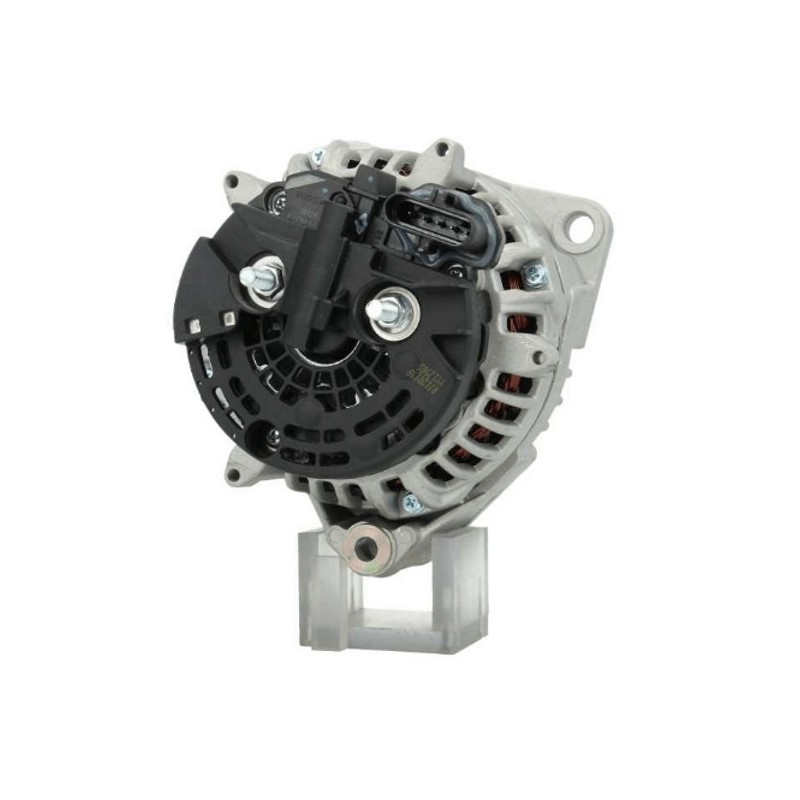

Alternator NEW BOSCH 0124655009 for MAN
€269.90
Alternator replacing 0124655025 / 1986A00517 / 11.209.608 / 72445895 / AAN5397
W114528
| 51261017278 | MAN |
| 51261017283 | MAN |
| 51261017287 | MAN |
| 51261017296 | MAN |
| 51261019278 | MAN |
| 51261019283 | MAN |
| 51261019296 | MAN |
| 556507120 | PSH |
| 5711041204 | DRI |
| 72445895 | Mahle |
| 72525339 | Mahle |
| 860812 | Prestolite |
| 861297 | Prestolite |
| 861297GB | Prestolite |
WITHOUT PULLEY
Features
Electrical information | |
|---|---|
| Voltage | 28 |
| Amp | 120 |
Physical information | ||
|---|---|---|
| B | Width/holder arm | 80.00 |
| D | Bracket hole | 10.00 |
| E | Belt. adj. brackethole pos. | 10 |
| E | Belt. adj. brackethole pos. 2 | 50 |
| G | Belt. adj. bracket hole | 12.00 |
| G | Belt. adj. bracket hole 2 | 12.00 |
| J | Radius | 93.00 |
| J | Radius 2 | 90.00 |
| J | Radius 3 | 90.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |

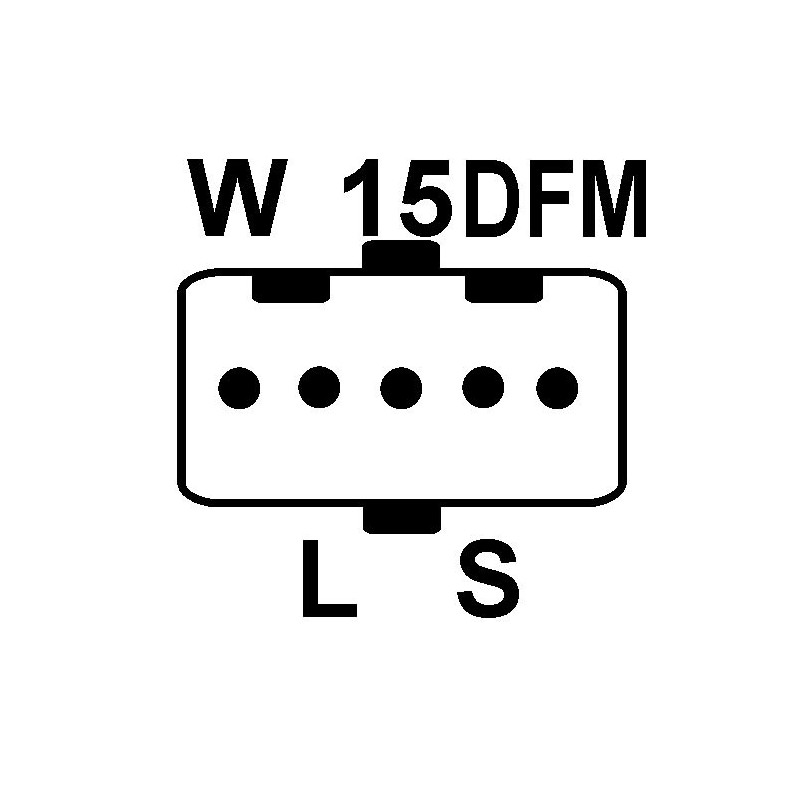

| O | Plug no. 1 | PL82 |
| Q | W plug type | Plug |
| R | Total length mm | 202.00 |
Replacing | |
|---|---|
| 0124655025 | Bosch |
| 0986049820 | Bosch |
| 11.209.608 | Mahle Letrika |
| 1986A00517 | Bosch |
| 51.26101-7278 | MAN |
| 51.26101-7283 | MAN |
| 51.26101-7287 | MAN |
| 51.26101-7296 | MAN |
| 51.26101-9278 | MAN |
| 51.26101-9283 | MAN |
| 72445895 | Mahle Letrika |
| CA1997IR | HC-PARTS |
| AAN5397 | Mahle Letrika |
generic brand
for
| Brand | Model | Type | Year | Brand | Model | Type | Year | Brand | Model | Type | Year |
| MAN | 35.360 10.5 | (TGA)[D2066LF33] | 01/07/06 | MAN | 32390 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 35.350 10.5 | (TGA)[D2066LF33] | 01/02/04 |
| MAN | 37.430 10.5 | (TGA)[D2066LF31] | 01/12/04 | MAN | 41.350 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 | MAN | 37.400 10.5 | (TGA)[D2066LF32] | 01/12/04 |
| MAN | 41.400 10.5 | (TGA)[D2066LF12] | 01/12/04 | MAN | 24400 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 41.390 10.5 | (TGA)[D2066LF32] | 01/12/04 |
| MAN | 35.440 10.5 | (TGA)[D2066LF01] | 01/02/04 | MAN | 26440 10.5 | (TGA)[D2066LF23] | 01/05/04 | MAN | 18350 10.5 | (TGA)[D2066LF13] | 05.2004-09.2006 |
| MAN | 41.400 10.5 | (TGA)[D2066LF32] | 01/07/06 | MAN | 32390 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 18350 10.5 | (TGA)[D2066LF33] | 05.2004-09.2006 |
| MAN | 33350 10.5 | (TGA)[D2066LF03] | 01/05/04 | MAN | 40.390 10.5 | (TGA)[D2066LF02] | 01.2005-09.2006 | MAN | 35.430 10.5 | (TGA)[D2066LF01] | 02.2004-09.2006 |
| MAN | 33350 10.5 | (TGA)[D2066LF13] | 01/05/04 | MAN | 41.440 10.5 | (TGA)[D2066LF01] | 01/12/04 | MAN | 18390 10.5 | (TGA)[D2066LF02] | 01/05/04 |
| MAN | 35.440 10.5 | (TGA)[D2066LF11] | 01/02/04 | MAN | 24400 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 18390 10.5 | (TGA)[D2066LF12] | 01/05/04 |
| MAN | 33350 10.5 | (TGA)[D2066LF33] | 01/05/04 | MAN | 26440 10.5 | (TGA)[D2066LF31] | 01/02/04 | MAN | 35.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 |
| MAN | 33360 10.5 | (TGA)[D2066LF03] | 01/05/04 | MAN | 32400 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 18390 10.5 | (TGA)[D2066LF32] | 01/05/04 |
| MAN | 35.440 10.5 | (TGA)[D2066LF31] | 01/07/06 | MAN | 40.390 10.5 | (TGA)[D2066LF06] | 01/06/05 | MAN | 35.430 10.5 | (TGA)[D2066LF31] | 01/02/04 |
| MAN | 33360 10.5 | (TGA)[D2066LF13] | 01/05/04 | MAN | 24430 10.5 | (TGA)[D2066LF01] | 01/05/04 | MAN | 18400 10.5 | 01/10/07 | |
| MAN | 33360 10.5 | (TGA)[D2066LF33] | 01/05/04 | MAN | 32400 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 18430 10.5 | (TGA)[D2066LF01] | 01/05/04 |
| MAN | 33390 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 40.390 10.5 | (TGA)[D2066LF37] | 01/06/05 | MAN | 18430 10.5 | (TGA)[D2066LF11] | 01/05/04 |
| MAN | 33390 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 41.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 | MAN | 18430 10.5 | (TGA)[D2066LF31] | 01/05/04 |
| MAN | 33390 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 41.440 10.5 | (TGA)[D2066LF11] | 01/12/04 | MAN | 18480 12.4 | (TGA)[D2676LF01] | 01/01/06 |
| MAN | 37.440 10.5 | (TGA)[D2066LF01] | 01/12/04 | MAN | 24430 10.5 | (TGA)[D2066LF11] | 01/05/04 | MAN | 41.400 10.5 | (TGA)[D2066LF02] | 01/12/04 |
| MAN | 33400 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 32400 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 18680 16.2 | (TGX)[D2868LF02] | 01/10/07 |
| MAN | 33400 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 41.350 10.5 | (TGA)[D2066LF33] | 01/12/04 | MAN | 35.360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 |
| MAN | 37.440 10.5 | (TGA)[D2066LF11] | 01/12/04 | MAN | 41.440 10.5 | (TGA)[D2066LF31] | 01/07/06 | MAN | 37.430 10.5 | (TGA)[D2066LF01] | 03.2004-09.2006 |
| MAN | 33400 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 24430 10.5 | (TGA)[D2066LF23] | 01/05/04 | MAN | 18680 16.2 | (TGX)[D2868LF03] | 01/10/07 |
| MAN | 37.440 10.5 | (TGA)[D2066LF31] | 01/07/06 | MAN | 32430 10.5 | (TGA)[D2066LF01] | 01/05/04 | MAN | 35.360 10.5 | (TGA)[D2066LF13] | 01/02/04 |
| MAN | 33400 10.5 | (TGX)[D2066LF37] | 01/10/07 | MAN | 37.320 10.5 | (TGA)[D2066LF04] | 01/12/04 | MAN | 37.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 |
| MAN | 33430 10.5 | (TGA)[D2066LF01] | 01/05/04 | MAN | 24430 10.5 | (TGA)[D2066LF31] | 01/05/04 | NEOPLAN | N 2216 10.5 | [D2066LOH04] | 01/06/06 |
| MAN | 33430 10.5 | (TGA)[D2066LF11] | 01/05/04 | MAN | 32430 10.5 | (TGA)[D2066LF11] | 01/05/04 | TEMSA | 14 10.5 | [D2066LOH04] | 01/01/06 |
| MAN | 33430 10.5 | (TGA)[D2066LF31] | 01/05/04 | MAN | 24440 10.5 | (TGA)[D2066LF01] | 01/05/04 | ||||
| MAN | 33440 10.5 | (TGA)[D2066LF01] | 01/05/04 | MAN | 32430 10.5 | (TGA)[D2066LF31] | 01/05/04 | ||||
| MAN | 33440 10.5 | (TGA)[D2066LF11] | 01/05/04 | MAN | 37.320 10.5 | (TGA)[D2066LF35] | 01/12/04 | ||||
| MAN | 33440 10.5 | (TGA)[D2066LF31] | 01/05/04 | MAN | 40.400 10.5 | (TGA)[D2066LF02] | 01/06/05 | ||||
| MAN | 33680 16.2 | 01/10/07 | MAN | 24440 10.5 | (TGA)[D2066LF11] | 01/05/04 | |||||
| MAN | 26310 10.5 | (TGA)[D2066LF04] | 02.2004-09.2006 | MAN | 32440 10.5 | (TGA)[D2066LF01] | 01/05/04 | ||||
| MAN | 37.480 12.4 | (TGA)[D2676LF01] | 01/02/06 | MAN | 40.400 10.5 | (TGA)[D2066LF06] | 01/06/05 | ||||
| MAN | 26310 10.5 | (TGA)[D2066LF14] | 01/02/04 | MAN | 24440 10.5 | (TGA)[D2066LF23] | 01/05/04 | ||||
| MAN | 26310 10.5 | (TGA)[D2066LF35] | 01/02/04 | MAN | 32440 10.5 | (TGA)[D2066LF11] | 01/05/04 | ||||
| MAN | 26320 10.5 | (TGA)[D2066LF04] | 01/02/04 | MAN | 40.400 10.5 | (TGA)[D2066LF37] | 01/06/05 | ||||
| MAN | 26320 10.5 | (TGA)[D2066LF14] | 01/02/04 | MAN | 24440 10.5 | (TGA)[D2066LF31] | 01/05/04 | ||||
| MAN | 26320 10.5 | (TGA)[D2066LF35] | 01/02/04 | MAN | 32440 10.5 | (TGA)[D2066LF31] | 01/05/04 | ||||
| MAN | 26350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 | MAN | 35.320 10.5 | (TGA)[D2066LF04] | 01/02/04 | ||||
| MAN | 26350 10.5 | (TGA)[D2066LF13] | 02.2004-09.2006 | MAN | 35.400 10.5 | (TGA)[D2066LF02] | 01/02/04 | ||||
| MAN | 26350 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 35.320 10.5 | (TGA)[D2066LF35] | 01/02/04 | ||||
| MAN | 26360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 | MAN | 35.400 10.5 | (TGA)[D2066LF12] | 01/02/04 | ||||
| MAN | 26360 10.5 | (TGA)[D2066LF13] | 01/02/04 | MAN | 35.400 10.5 | (TGA)[D2066LF32] | 01/07/06 | ||||
| MAN | 26360 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 28310 10.5 | (TGA)[D2066LF04] | 01/07/06 | ||||
| MAN | 26390 10.5 | (TGA)[D2066LF02] | 01/02/04 | MAN | 41.360 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 | ||||
| MAN | 26390 10.5 | (TGA)[D2066LF12] | 01/02/04 | MAN | 28310 10.5 | (TGA)[D2066LF14] | 01/07/06 | ||||
| MAN | 26390 10.5 | (TGA)[D2066LF24] | 01/05/04 | MAN | 28310 10.5 | (TGA)[D2066LF28] | 01/07/06 | ||||
| MAN | 41.430 10.5 | (TGA)[D2066LF01] | 06.2004-09.2006 | MAN | 28310 10.5 | (TGA)[D2066LF39] | 01/07/06 | ||||
| MAN | 26390 10.5 | (TGA)[D2066LF32] | 01/02/04 | MAN | 37.350 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 | ||||
| MAN | 24350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 | MAN | 41.360 10.5 | (TGA)[D2066LF13] | 01/12/04 | ||||
| MAN | 26400 10.5 | (TGA)[D2066LF02] | 01/02/04 | MAN | 28320 10.5 | (TGA)[D2066LF04] | 01/07/06 | ||||
| MAN | 41.430 10.5 | (TGA)[D2066LF11] | 10.2004-09.2006 | MAN | 37.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 | ||||
| MAN | 24350 10.5 | (TGA)[D2066LF13] | 01/02/04 | MAN | 41.360 10.5 | (TGA)[D2066LF33] | 01/07/03 | ||||
| MAN | 26400 10.5 | (TGA)[D2066LF12] | 01/02/04 | MAN | 28320 10.5 | (TGA)[D2066LF14] | 01/07/06 | ||||
| MAN | 41.430 10.5 | (TGA)[D2066LF31] | 01/12/04 | MAN | 28320 10.5 | (TGA)[D2066LF28] | 01/07/06 | ||||
| MAN | 24350 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 37.350 10.5 | (TGA)[D2066LF33] | 01/12/04 | ||||
| MAN | 26400 10.5 | (TGA)[D2066LF24] | 01/05/04 | MAN | 28320 10.5 | (TGA)[D2066LF39] | 01/07/06 | ||||
| MAN | 24360 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 | MAN | 28390 10.5 | (TGA)[D2066LF37] | 01/06/04 | ||||
| MAN | 26400 10.5 | (TGA)[D2066LF32] | 01/02/04 | MAN | 28400 10.5 | 01/10/07 | |||||
| MAN | 32350 10.5 | (TGA)[D2066LF03] | 01/02/04 | MAN | 37.360 10.5 | (TGA)[D2066LF03] | 12.2004-09.2006 | ||||
| MAN | 35.310 10.5 | (TGA)[D2066LF04] | 01/02/04 | MAN | 37.360 10.5 | (TGA)[D2066LF13] | 01/12/04 | ||||
| MAN | 24360 10.5 | (TGA)[D2066LF13] | 01/02/04 | MAN | 37.360 10.5 | (TGA)[D2066LF33] | 01/07/06 | ||||
| MAN | 26400 10.5 | (TGX)[D2066LF37] | 01/10/07 | MAN | 41.480 12.4 | (TGA)[D2676LF01] | 01/02/06 | ||||
| MAN | 32350 10.5 | (TGA)[D2066LF13] | 01/02/04 | MAN | 40.430 10.5 | (TGA)[D2066LF01] | 01.2005-09.2006 | ||||
| MAN | 24360 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 40.430 10.5 | (TGA)[D2066LF36] | 01/06/05 | ||||
| MAN | 26430 10.5 | (TGA)[D2066LF01] | 02.2004-09.2006 | MAN | 40.440 10.5 | (TGA)[D2066LF01] | 01/06/05 | ||||
| MAN | 32350 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 40.440 10.5 | (TGA)[D2066LF36] | 01/06/05 | ||||
| MAN | 35.310 10.5 | (TGA)[D2066LF35] | 01/02/04 | MAN | 37.390 10.5 | (TGA)[D2066LF02] | 03.2004-09.2006 | ||||
| MAN | 24390 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 37.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 | ||||
| MAN | 26430 10.5 | (TGA)[D2066LF11] | 01/02/04 | MAN | 37.390 10.5 | (TGA)[D2066LF32] | 01/12/04 | ||||
| MAN | 32360 10.5 | (TGA)[D2066LF03] | 01/02/04 | MAN | 41.680 16.2 | (TGX)[D2868LF03] | 01/10/07 | ||||
| MAN | 37.310 10.5 | (TGA)[D2066LF04] | 01/12/04 | MAN | 40.480 12.4 | (TGA)[D2676LF02] | 01/06/05 | ||||
| MAN | 24390 10.5 | (TGA)[D2066LF12] | 01/05/04 | MAN | 40.480 12.4 | (TGA)[D2676LF03] | 01/06/05 | ||||
| MAN | 26430 10.5 | (TGA)[D2066LF23] | 01/05/04 | MAN | 18310 10.5 | (TGA)[D2066LF04] | 01/05/04 | ||||
| MAN | 32360 10.5 | (TGA)[D2066LF13] | 01/02/04 | MAN | 18310 10.5 | (TGA)[D2066LF14] | 01/05/04 | ||||
| MAN | 35.390 10.5 | (TGA)[D2066LF02] | 06.2004-09.2006 | MAN | 18310 10.5 | (TGA)[D2066LF35] | 01/05/04 | ||||
| MAN | 24390 10.5 | (TGA)[D2066LF32] | 01/05/04 | MAN | 18320 10.5 | (TGA)[D2066LF04] | 01/05/04 | ||||
| MAN | 26430 10.5 | (TGA)[D2066LF31] | 01/02/04 | MAN | 41.390 10.5 | (TGA)[D2066LF02] | 03.2004-09.2006 | ||||
| MAN | 32360 10.5 | (TGA)[D2066LF33] | 01/02/04 | MAN | 18320 10.5 | (TGA)[D2066LF14] | 01/05/04 | ||||
| MAN | 35.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 | MAN | 37.400 10.5 | (TGA)[D2066LF02] | 01/12/04 | ||||
| MAN | 37.310 10.5 | (TGA)[D2066LF35] | 01/12/04 | MAN | 18320 10.5 | (TGA)[D2066LF35] | 01/05/04 | ||||
| MAN | 24400 10.5 | 01/10/07 | MAN | 35.350 10.5 | (TGA)[D2066LF03] | 02.2004-09.2006 | |||||
| MAN | 26440 10.5 | (TGA)[D2066LF01] | 01/02/04 | MAN | 18320 10.5 | (TGS)[D2066LF39] | 01/10/07 | ||||
| MAN | 32390 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 35.350 10.5 | (TGA)[D2066LF13] | 10.2004-09.2006 | ||||
| MAN | 35.390 10.5 | (TGA)[D2066LF32] | 01/02/04 | MAN | 37.400 10.5 | (TGA)[D2066LF12] | 01/12/04 | ||||
| MAN | 24400 10.5 | (TGA)[D2066LF02] | 01/05/04 | MAN | 41.390 10.5 | (TGA)[D2066LF12] | 10.2004-09.2006 | ||||
| MAN | 26440 10.5 | (TGA)[D2066LF11] | 01/02/04 | MAN | 18350 10.5 | (TGA)[D2066LF03] | 05.2004-09.2006 |
