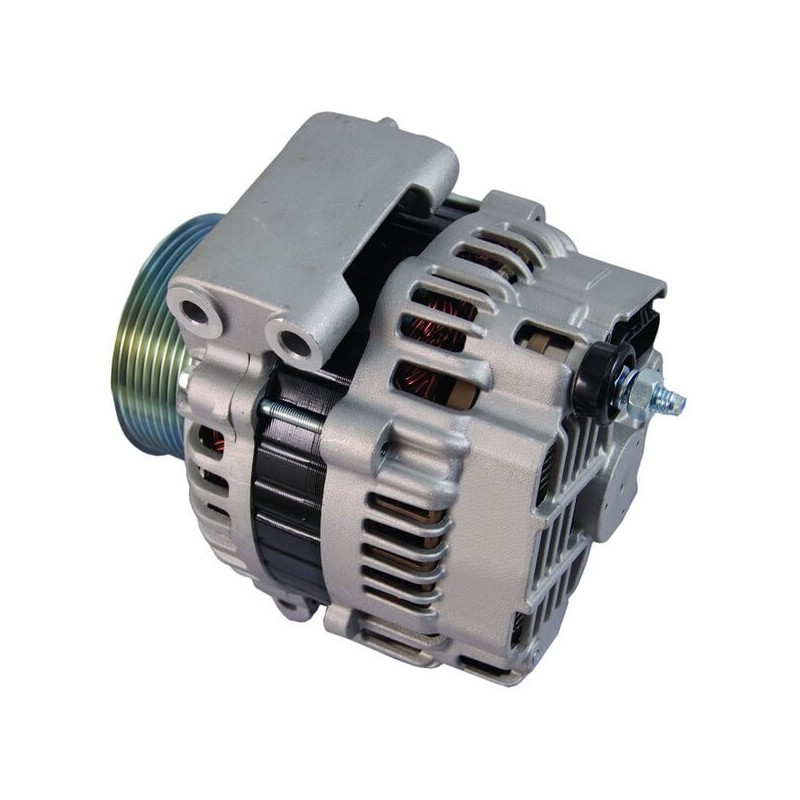

Alternator replacing MITSUBISHI A004TR5691 / A4TR5691 / A4TR5691AM
| 570887 | SCANIA |
| 861298 | PRESTOLITE |
| A004TR5691 | MITSUBISHI |
| A004TR5691AM | MITSUBISHI |
| A004TR5691ZT | MITSUBISHI |
| A4TR5691 | MITSUBISHI |
| A4TR5691AM | MITSUBISHI |
| A4TR5691ZT | MITSUBISHI |
| 1475569 | SCANIA |
| 2395908 | SCANIA |
| 573015 | SCANIA |
| A004TR5691A | MITSUBISHI |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 100 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.10 |
| G | Belt. adj. bracket hole | 8.10 |
| C | Mount. bracket dist | 35.50 |
| H | Pulley dia. | 88.00 |
| A | Pulley dist. | 20.50 |
| i | Grooves/pulley | 10 |
| k | Position B + | M8 |
| n | Rotation | Cr |

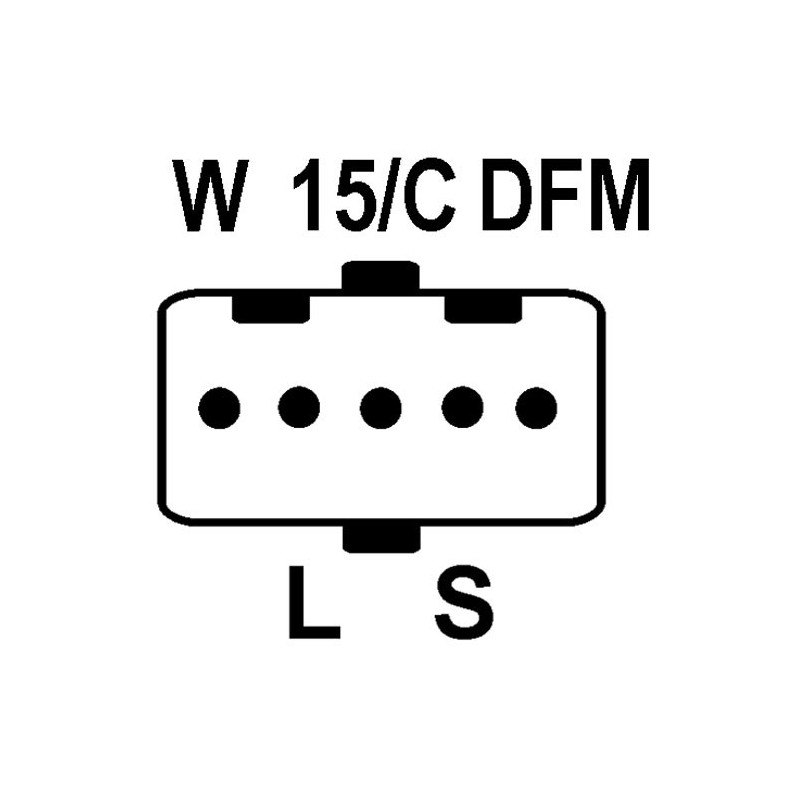

| o | Plug no. 1 | PL200 |
| G | Belt. adj. bracket hole 2 2 | 9.00 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 195.00 |
generic brand
replacing
| 01888010 | SCANIA | DRA1117 | DELCO |
| 0570887 | SCANIA | EAA-241513 | EAA |
| 114382 | CARGO | LRA03706 | LUCAS |
| 143-42216 | DIXIE | LRA3706 | LUCAS |
| 1884268 | SCANIA | MITA4TR5691 | WOODAUTO |
| 1888010 | SCANIA | MITA4TR5691ZT | WOODAUTO |
| 20137926 | REAL | UD12187A | AS-PL |
| 20290N | WAI / TRANSPO | 1794786 | SCANIA |
| 2035629 | SANDO | 441998 | LOGISTIK |
| 210917 | ERA | A24MH0112AS | SIDAT |
| 230-40164 | ROBERT'S | A24MH0112 | SIDAT |
| 2398368 | SCANIA | A24MH0112A2 | SIDAT |
| 2594 | CEVAM | ANM33337X | ANDEL |
| 48-6767 | ELSTOCK | ZM9030202 | ZM |
| 553878RI | KUHNER | 9030202 | ZM |
| 553878RIM | KUHNER | 916.509.100.130 | PSH |
| 553878RIP | KUHNER | 443230 | VALEO |
| 570887 | SCANIA | A004TR5691AT | MITSUBISHI |
| 861298 | PRESTOLITE | A4TR5691AT | MITSUBISHI |
| A004TR5691 | MITSUBISHI | ALT5219 | ELECTROLOG |
| A004TR5691AM | MITSUBISHI | 1475569 | SCANIA |
| A004TR5691ZT | MITSUBISHI | 2395908 | SCANIA |
| A4TR5691 | MITSUBISHI | 573015 | SCANIA |
| A4TR5691AM | MITSUBISHI | A004TR5691A | MITSUBISHI |
| A4TR5691ZT | MITSUBISHI | A004TRG691 | MITSUBISHI |
| A5331 | AS-PL | A004TRG691AM | MITSUBISHI |
| ALM3691 | KRAUF | A4TRG691 | MITSUBISHI |
| ALTF103 | 3EFFE | A4TRG691AM | MITSUBISHI |
| CAL35629 | CASCO | A866X56572 | MITSUBISHI |
| CAL35629AS | CASCO | ||
| CAL35629ES | CASCO | ||
| CAL35629GS | CASCO | ||
| CAL35629OS | CASCO | ||
| CAL35629RS | CASCO | ||
| DA2227 | DELCO |
Mounted on :
| Brand | Model | Typ | Year |
| SCANIA | G 480 12.7 | [DC13.07] | 01/01/08 |
| SCANIA | P 480 12.7 | [DC13.07] | 01/01/08 |
| SCANIA | R 480 12.7 | [DC13.07] | 01/01/08 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
