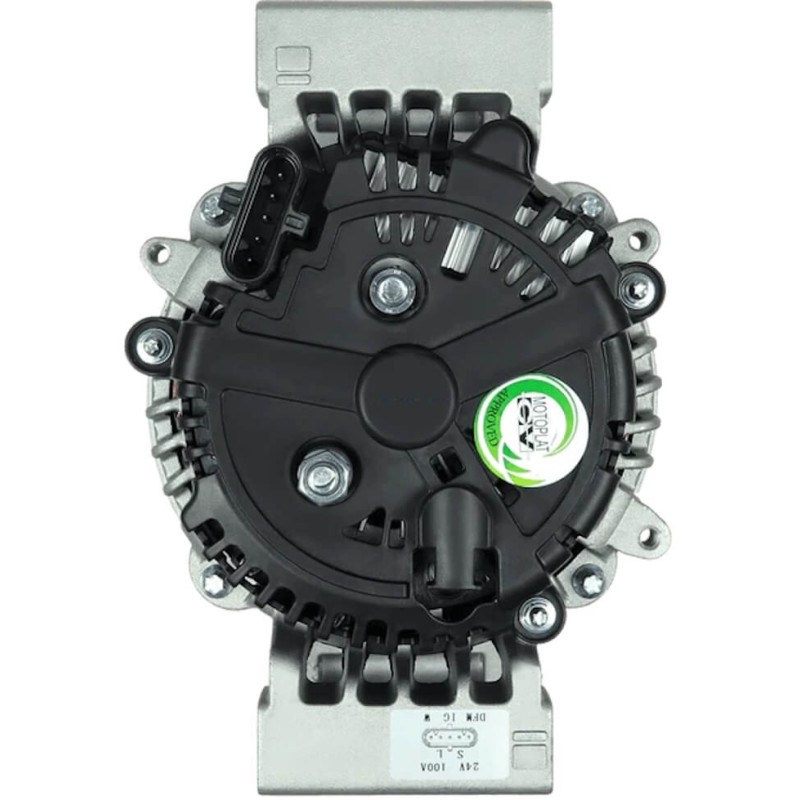

Alternator replacing 8600512 / 8600578 /8600620 / 8600621
Alternator NEW replacing :
DELCO REMY 8600512 / 8600578 /8600620 / 8600621 / 8600764
MERCEDES-BENZ 0141547402 / 0151540302 / 0151541302 / A0141547402 / A0151540302 / A0151541302
KTR1113038200 / LRA03814 / 486924
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 100 | |

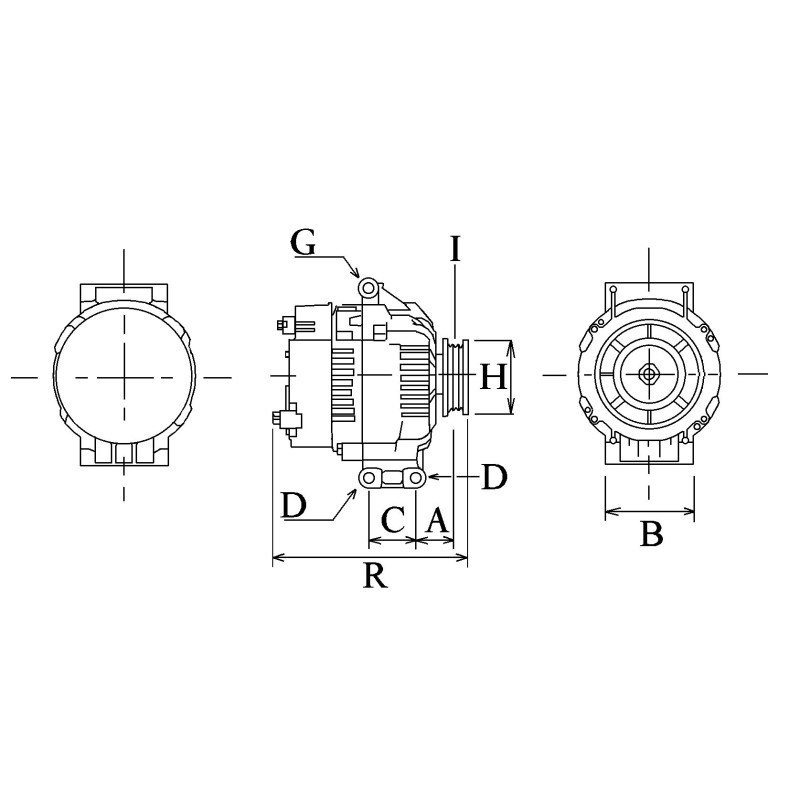

Physical Information | ||
|---|---|---|
| D | Bracket hole | 12.50 |
| G | Belt. adj. bracket hole | 12.50 |
| B | Width/holder arm | 80.10 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 107.50 |
| H | Pulley dia. | 93.00 |
| A | Pulley dist. | 38.70 |
| i | Grooves/pulley | 8 |
| j | Radius | 95.00 |
| j | Radius 2 | 95.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

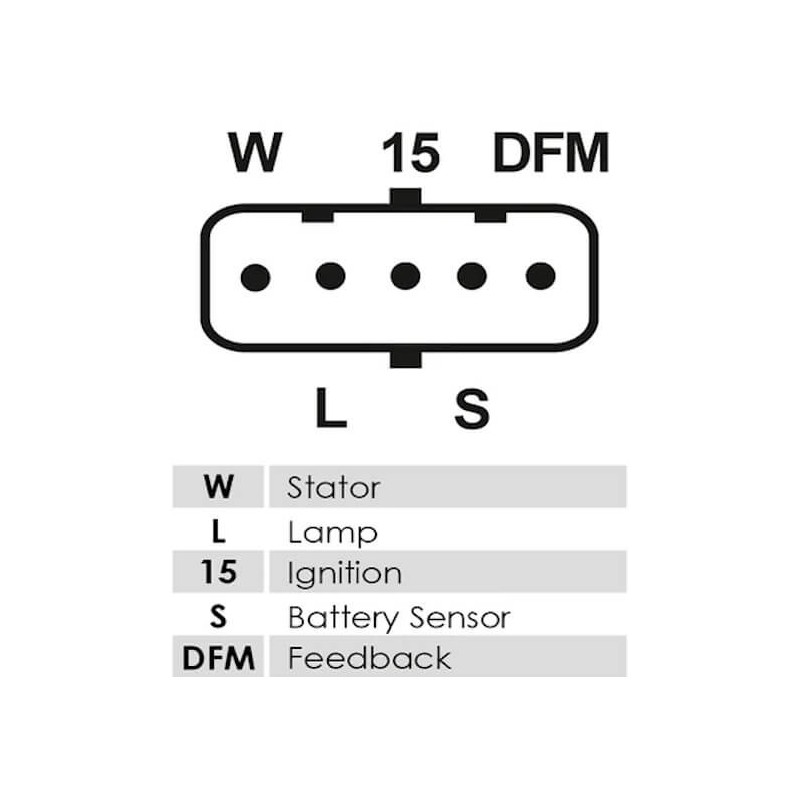

| o | Plug no. 1 | PL82 |
| D | Trou from fixation support 2 | 10.50 |
| G | Belt. adj. bracket hole 2 2 | 10.50 |
| R | Total length mm | 218.00 |
generic brand
replacing
| 0141546202 | MERCEDES | ALT40254 | WOODAUTO |
| 0141547102 | MERCEDES | ALT626210 | SIOM |
| 0141547402 | MERCEDES | ALT626210A | SIOM |
| 0141547802 | MERCEDES | ALTJ190 | 3EFFE |
| 0151540302 | MERCEDES | CAL60621 | CASCO |
| 0151541302 | MERCEDES | CAL60621AS | CASCO |
| 0151542402 | MERCEDES | CAL60621ES | CASCO |
| 101-28205 | DIXIE | CAL60621GS | CASCO |
| 116291 | CARGO | CAL60621OS | CASCO |
| 2060621 | SANDO | CAL60621RS | CASCO |
| 240-28118 | ROBERT'S | CGB-10764 | AINDE |
| 48-6924 | ELSTOCK | CGB-86924 | AINDE |
| 554434RI | KUHNER | EAA-222539 | EAA |
| 554434RIB | KUHNER | LRA03814 | LUCAS |
| 554434RID | KUHNER | LRA3814 | LUCAS |
| 556.519.100 | PSH | REM8600764 | WOODAUTO |
| 8600512 | DELCO | UD90319A | AS-PL |
| 8600620 | DELCO | 448779 | LOGISTIK |
| 8600690 | DELCO | A24DR0049A2 | SIDAT |
| 8600764 | DELCO | A24DR0049 | SIDAT |
| 861311 | PRESTOLITE | 5673116 | MEAT & DORIA |
| 8761N | WAI / TRANSPO | ALT2639 | ELECTROLOG |
| A0141546202 | MERCEDES | 0141546902 | MERCEDES |
| A0141547102 | MERCEDES | 0141549802 | MERCEDES |
| A0141547402 | MERCEDES | 0151541202 | MERCEDES |
| A0141547802 | MERCEDES | A0141546902 | MERCEDES |
| A0151540302 | MERCEDES | A0141549802 | MERCEDES |
| A0151541302 | MERCEDES | ||
| A0151542402 | MERCEDES | ||
| A1050S | AS-PL | ||
| ALD7402 | KRAUF |
Mounted on MERCEDES-BENZ :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Actros MP4 | 2040 L | 10.7 | Diesel | 2011 07 | - | OM470.906 | 290 | 394 | Pick-up | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2043 LS | 10.7 | Diesel | 2011 07 | - | OM470.906 | 315 | 428 | Trailer | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2533 L | 10.7 | Diesel | 2011 07 | - | OM470.906 | 240 | 326 | Pick-up | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2536 L | 10.7 | Diesel | 2011 07 | - | OM470.906 | 265 | 360 | Pick-up | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2536 LS | 10.7 | Diesel | 2011 07 | - | OM470.906 | 265 | 360 | Trailer | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2636 LS | 10.7 | Diesel | 2011 07 | - | OM470.906 | 265 | 360 | Trailer | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 2436 LS | 10.7 | Diesel | 2011 07 | - | OM470.906 | 265 | 360 | Trailer | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 3340 LS | 10.7 | Diesel | 2011 07 | - | OM470.906 | 290 | 394 | Trailer | 10677 | 6 | Actros MP4 | |
| Actros MP4 | 1852 LS | 15.6 | Diesel | 2014 01 | - | OM473.900 | 380 | 517 | Trailer | 15569 | 6 | Actros MP4 | |
| Actros MP4 | 1863 L | 15.6 | Diesel | 2014 01 | - | OM473.903 | 460 | 626 | Pick-up | 15569 | 6 | Actros MP4 |
Camion Setra :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series 400 | MultiClass S 418 LE, MultiClass S 418 LE business | 10.7 | Diesel | 2016 08 | - | OM470.910 | 290 | 394 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 417 UL | 10.7 | Diesel | 2016 08 | - | OM470.910 | 290 | 394 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 416 H | 10.7 | Diesel | 2016 08 | - | OM470.910 | 290 | 394 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 415 H | 10.7 | Diesel | 2016 08 | - | OM470.910 | 290 | 394 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 415 H | 10.7 | Diesel | 2016 08 | - | OM470.908 | 265 | 360 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 418 LE, MultiClass S 418 LE business | 10.7 | Diesel | 2016 08 | - | OM470.908 | 265 | 360 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 417 UL | 10.7 | Diesel | 2016 08 | - | OM470.908 | 265 | 360 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 419 UL | 10.7 | Diesel | 2016 08 | - | OM470.908 | 265 | 360 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 419 UL | 10.7 | Diesel | 2016 08 | - | OM470.910 | 290 | 394 | De bus | 10677 | 6 | |
| Series 400 | MultiClass S 416 H | 10.7 | Diesel | 2016 08 | - | OM470.908 | 265 | 360 | De bus | 10677 | 6 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
