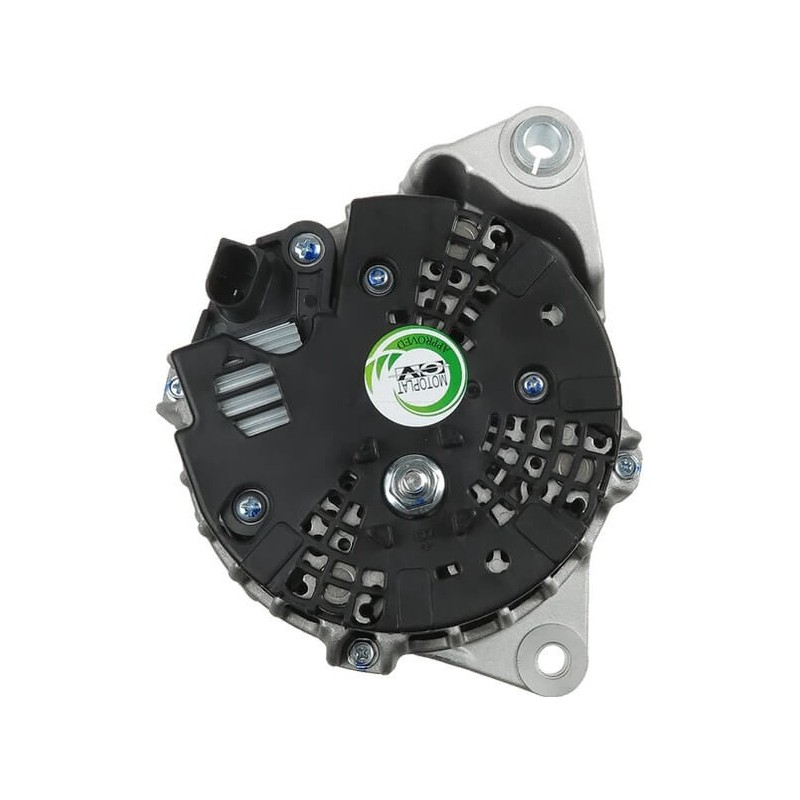

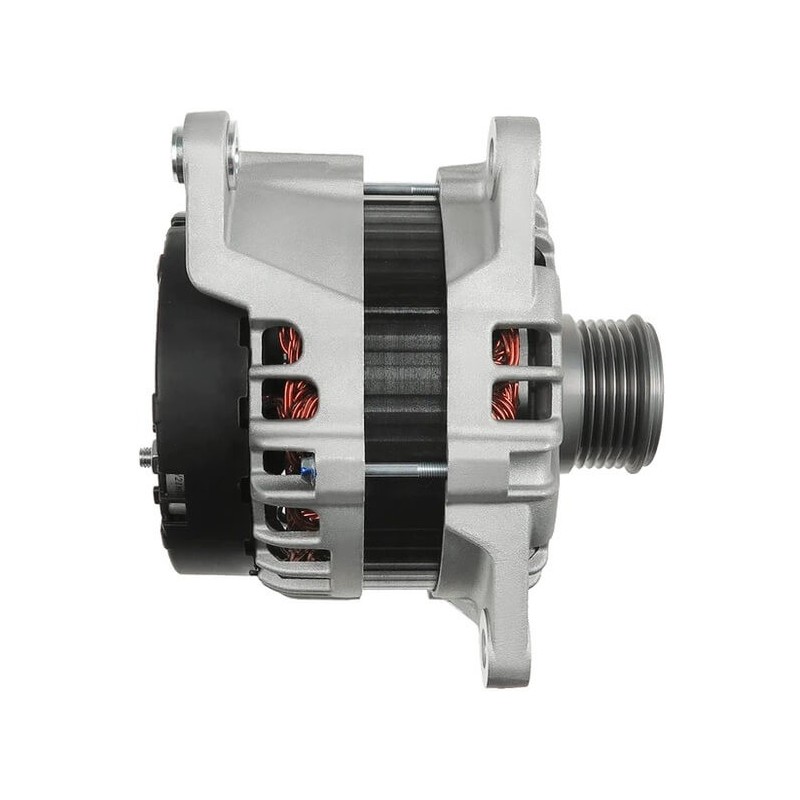

Alternator replacing 0125811039 / 0125811040 for Iveco
| 0125811039 | BOSCH |
| 0125811040 | BOSCH |
| UD17380A | AS-PL |
| SEG0125811039 | WOODAUTO |
| 555138RIB | KUHNER |
| 5801580941 | IVECO |
| 0986085510 | BOSCH |
| 505.905.210.280 | PSH |
| CAL10023GS | CASCO |
| 28-8655 | ELSTOCK |
| 209625 | ERA |
| LRA04546 | LUCAS |
| LRA4546 | LUCAS |
| 443401 | VALEO |
| 444282 | VALEO |
| DRA1975 | DELCO |
More info

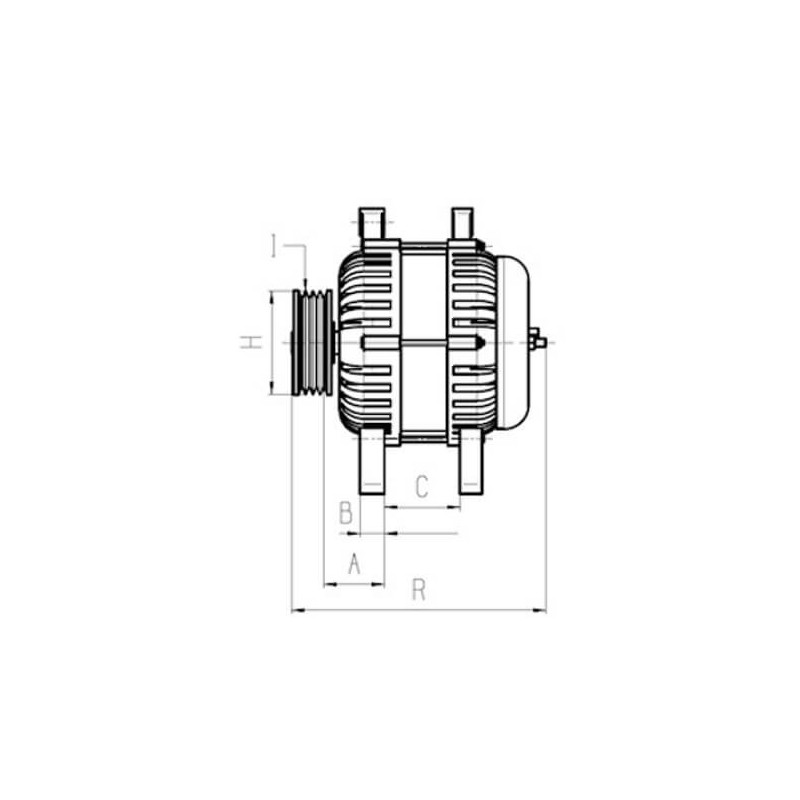

Physical information | ||
|---|---|---|
| A | Pulley dist. | 38.00 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist. | 80.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 10 |
| G | Belt. adj. bracket hole | 11.00 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 94.00 |
| J | Radius 2 | 95.50 |
| K | B+ | M8 |
| K | Position/B+ in min. | 55 |
| N | Rotation | CW |
| O | Plug no. | PL174 |
| R | Total length mm | 188.00 |
| Terminal type | COM | |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Regulator type | IR | |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 210 | |
generic brand
for
| Brand | Model | Typ | Year |
| IVECO | Daily 35C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 35C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 35C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 35C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 50C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 50C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 50C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 50C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 55S18W 3.0 D | [F1CFL4117] | 01/01/16 |
| IVECO | Daily 55S18W 3.0 D | [F1CFL411W] | 01/01/16 |
| IVECO | Daily 60C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 60C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 60C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 60C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 35S17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 35S17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 35S17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 35S17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 65C15P 3.0 D | [F1CFL411E] | 01/01/14 |
| IVECO | Daily 65C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 65C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 65C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 65C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 70C15P 3.0 D | [F1CFL411E] | 01/01/14 |
| IVECO | Daily 40C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 40C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 70C17 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 40C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 70C17 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 40C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 70C17P 3.0 D | [F1CFL411F] | 01/01/14 |
| IVECO | Daily 70C17P 3.0 D | [F1CFL411H] | 01/01/14 |
| IVECO | Daily 70C18 3.0 D | [F1CFL4117] | 01/01/16 |
| IVECO | Daily 70C18 3.0 D | [F1CFL411W] | 01/01/16 |
| IVECO | Daily 70C18 3.0 D | [F1CGL411B] | 01/01/16 |
