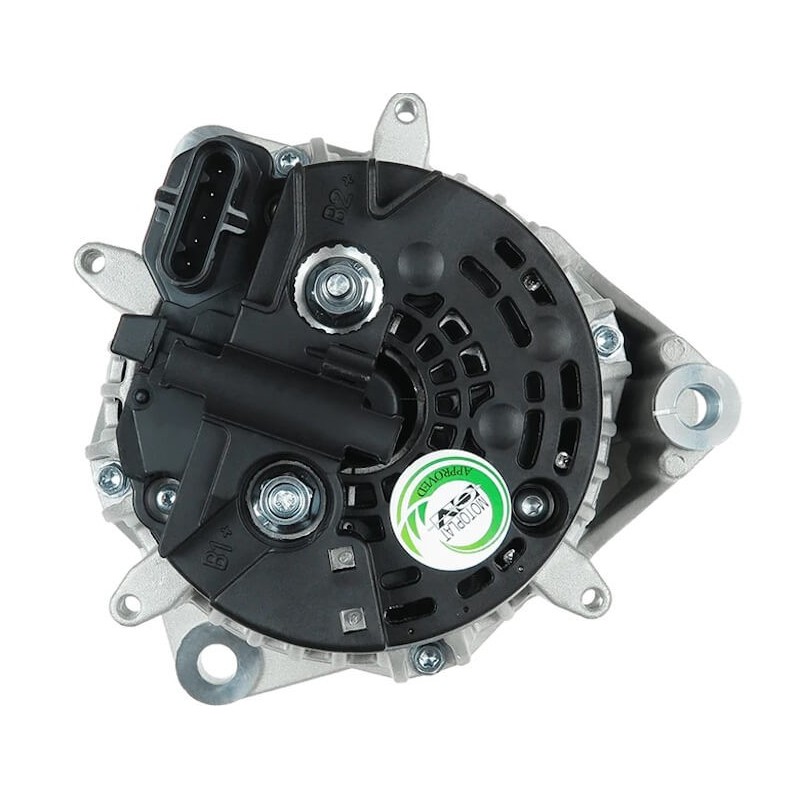

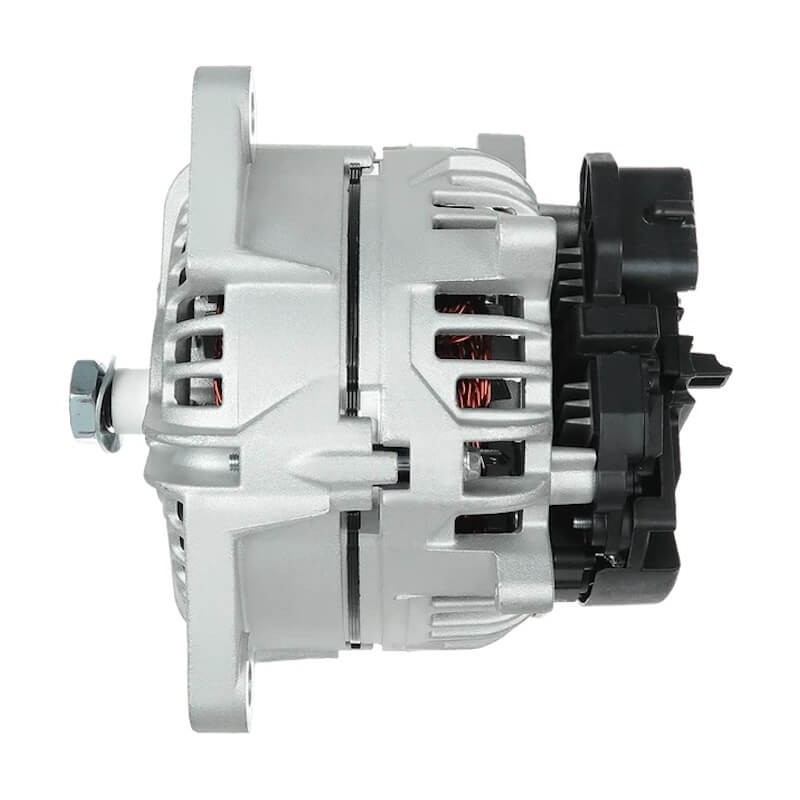

Alternator replacing 0124555003 / 0124555040 / 0124555041

Display all pictures

Alternator replacing 0124555003 / 0124555040 / 0124555041

Reference: W113284

Condition: New product

4 Item Items

WITHOUT pulley

0124555003	Bosch
0124555040	Bosch
0124555041	Bosch
0124555123	Bosch
0124555124	Bosch
0124555139	Bosch
0986045490	Bosch ruil
0986046560	Bosch ruil
113284	Cargo
115491	Cargo
12201338	AES
1368327	DAF
1528592	DAF
1697022	DAF
1697321	DAF
19070010	Delco

More info

More info

Electrical Information
Voltage		28
Amp		80

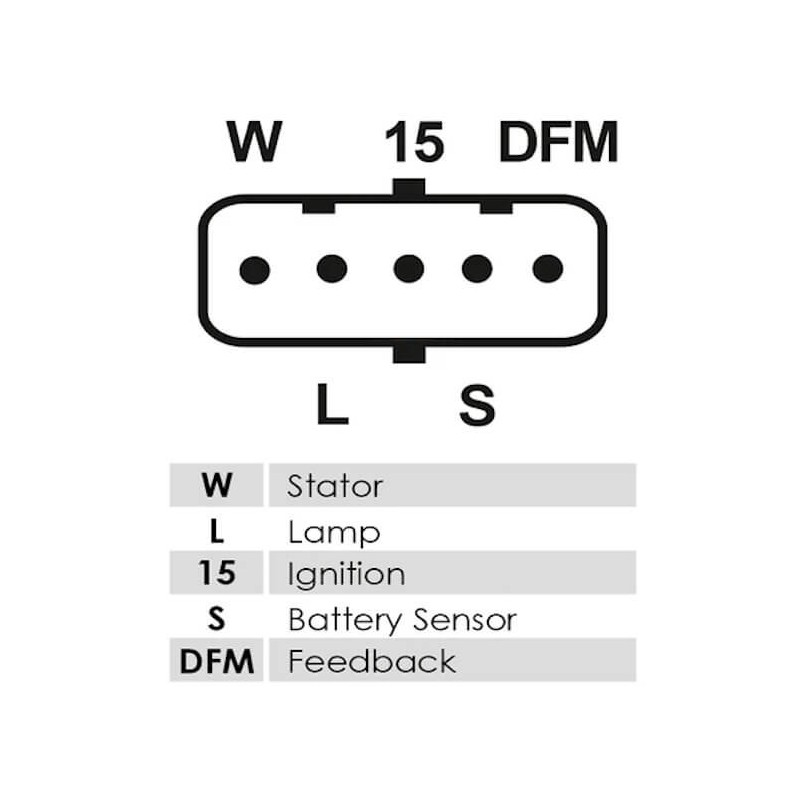

Plug type		W

Physical Information
D	Bracket hole	10.90
G	Belt. adj. bracket hole	12.50
B	Width/holder arm	80.50
E	Belt. adj. brackethole pos.	10
E	Ceinture from soutien réglable/ pos. 2	50
j	Radius	93.00
j	Radius 2	90.00
j	Radius 3	90.00
k	Position B +	M8
n	Rotation	Cr
o	Plug no. 1	PL82
G	Belt. adj. bracket hole 2 2	12.50
Q	Tipo prise W	Plug
R	Total length mm	183.50

Generic brand

replacing

0124555003	BOSCH
0124555040	BOSCH
0124555041	BOSCH
0986046560	BOSCH
113284	CARGO
115491	CARGO
12589N	WAI / TRANSPO
1368327	DAF
160-55214	DIXIE
1697022	DAF
20101036BN	REAL
20101036OE	REAL
2010630	SANDO
301694RI	KUHNER
301694RIB	KUHNER
440132	VALEO
48-4845	ELSTOCK
861279GB	PRESTOLITE
89212320	POWERMAX
8EL012584-301	HELLA
906.501.080	PSH
A0120	AS-PL
AG0002	GHIBAUDI
ALB1694	KRAUF
ALB9694	KRAUF
ALT10771	WOODAUTO
ALT126300	SIOM
ALTS580	3EFFE
CA1694IR	HC PARTS
CAL10630	CASCO
CAL10630AS	CASCO
CAL10630ES	CASCO
CAL10630GS	CASCO
CAL10630OS	CASCO
CAL10630RS	CASCO
EAA-221297	EAA
LRA02534	LUCAS
LRA2534	LUCAS
441841	LOGISTIK
A24BH0093AS	SIDAT
A24BH0093	SIDAT
387011787001	ISUZU
5610076	MEAT & DORIA
ALT1322	ELECTROLOG
1368327R	DAF
1528592	DAF
1697321	DAF
1977229	DAF
2165378R	DAF
2165381R	DAF

Fits:

Brand	Model	Typ	Year
BOVA	FHD 10 12.6	[XE250C]	01/09/01
BOVA	FHD 12 12.6	[XE250C]	01/09/01
BOVA	FHD 13 12.6	[XE250C]	01/09/01
BOVA	FLD 12 12.6	[XE250C]	01/09/01
BOVA	FLD 13 12.6	[XE250C]	01/09/01
BOVA	HD 120 12.6	[XE250C]	01/10/99
BOVA	HD 122 12.6	[XE250C]	01/10/99
DAF	CF 85.380 12.6	[XE280C]	01/01/01
DAF	85 CF.430 12.6	[XF315M]	02.1998-12.2000
DAF	CF 85.430 12.6	[XE315C]	01/01/01
DAF	XF 95.380 12.6	[XE280C]	01/01/97
DAF	CF 85.430 12.6	[XE315C]	01/04/01
DAF	XF 95.380 12.6	[XE280C]	01/09/02
DAF	CF 85.430 12.6	[XE315C]	01/12/05
DAF	XF 95.380 12.6	[XF280M]	01/01/97
DAF	CF 75.250 9.2	[PE183C]	01/01/01
DAF	XF 95.430 12.6	[XE315C]	01/01/97
DAF	75 CF.250 9.2	[PF183M]	02.1998-12.2000
DAF	CF 75.250 9.2	[PR183S]	01/01/01
DAF	CF 85.480 12.6	[XE355C]	01/01/01
DAF	XF 95.430 12.6	[XE315C]	09.2002-12.2006
DAF	XF 95.430 12.6	[XE315C]	01/09/02
DAF	CF 85.480 12.6	[XE355C]	01/04/01
DAF	CF 75.250 9.2	[PR183S]	01/10/06
DAF	CF 85.480 12.6	[XE355C]	01/12/05
DAF	CF 75.310 9.2	[PE228C]	01/01/01
DAF	XF 95.430 12.6	[XF315M]	01/01/97
DAF	CF 75.310 9.2	[PE228S]	01/01/01
DAF	95 XF.380 12.6	[XF280M]	01.1997-09.2002
DAF	XF 95.480 12.6	[XE355C]	01/01/97
DAF	CF 75.310 9.2	[PR228S]	01/01/01
DAF	XF 95.480 12.6	[XE355C]	01/09/02
DAF	95 XF.430 12.6	[XF315M]	01.1997-09.2002
DAF	CF 75.310 9.2	[PR228S]	01/10/06
DAF	XF 95.480 12.6	[XE355C]	01/12/05
DAF	CF 75.310 9.2	[PR265S]	01/01/01
DAF	XF 95.480 12.6	[XF355M]	01/01/97
DAF	95 XF.480 12.6	[XF355M]	01.1997-09.2002
DAF	CF 75.360 9.2	[PE265C]	01/01/01
DAF	CF 75.360 9.2	[PE265S]	01/01/01
DAF	XF 95.530 12.6	[XE390C]	01/09/02
DAF	XF 95.530 12.6	[XE390C]	09.2002-12.2006
DAF	CF 75.360 9.2	[PR265S]	01/01/01
DAF	95 XF.530 14.0	[VF390M]	01.1997-09.2002
DAF	CF 75.360 9.2	[PR265S]	01/10/06
DAF	CF 85.340 12.6	[XE250C]	01/01/01
DAF	CF 85.360 12.6	[MX265]	01/10/06
DAF	85 CF.340 12.6	[XF250M]	02.1998-12.2000
DAF	85 CF.380 12.6	[XF280M]	02.1998-12.2000
SOLARIS	Vacanza 12 12.6	[XE250C]	06.2002-12.2006
