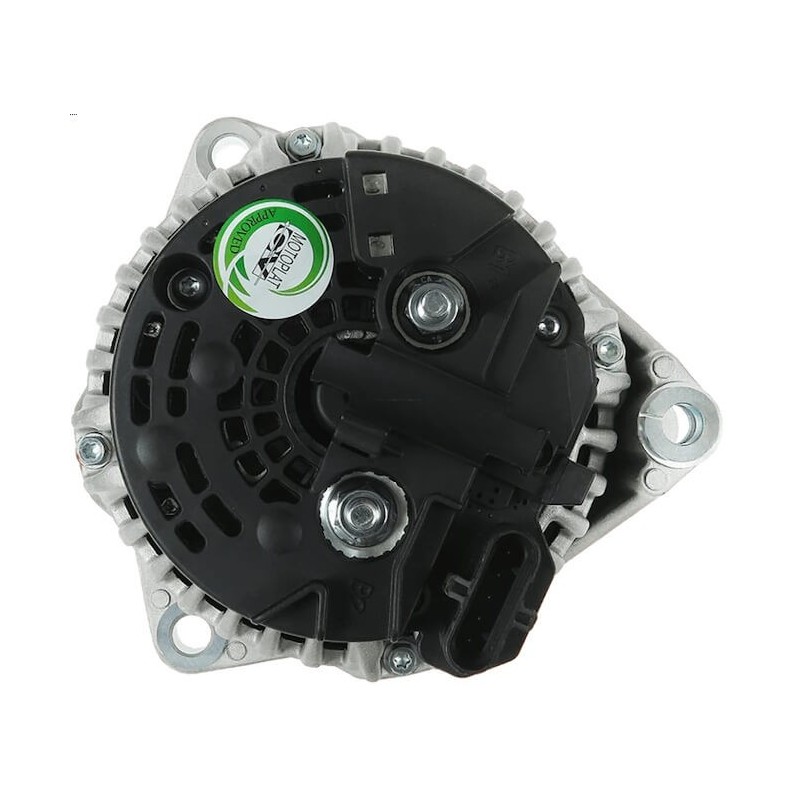

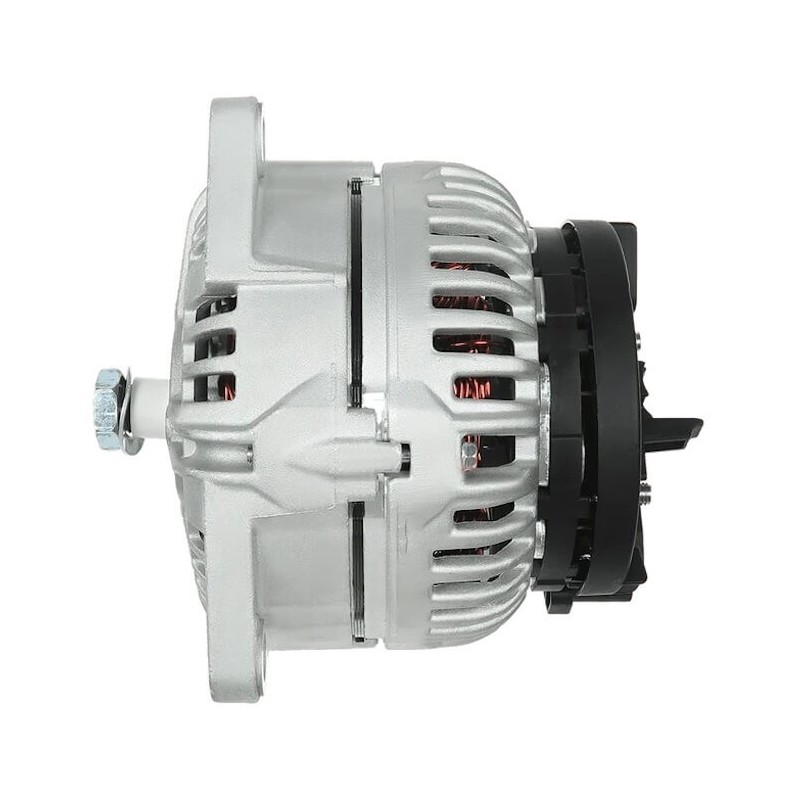

Alternator NEW BOSCH 0124655011

w115492

New product

1 Item

SEG AUTOMOTIVE

Alternator NEW  for MAN Trucks

= ISKRA / MAHLE IA9459 / AAN5399 / 11.209.607

= MAN 51.26101-7253 / 51.26101-7259 / 51.26101-7268 / 51.26101-7559 / 51.26101-9250

Sold WITHOUT pulley

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

249,90 € Inc VAT

Add to wishlist

More info

Physical Information
DBracket hole11.00
GBelt. adj. bracket hole12.30
BWidth/holder arm79.50
EBelt. adj. brackethole pos.10
ECeinture from soutien réglable/ pos. 250
jRadius93.00
jRadius 290.00
jRadius 390.00
kPosition B +M8
nRotationCr
oPlug no. 1PL82
GBelt. adj. bracket hole 2 212.30
QTipo prise WPlug
RTotal length mm198.00
Electrical Information
Voltage28
Amp110

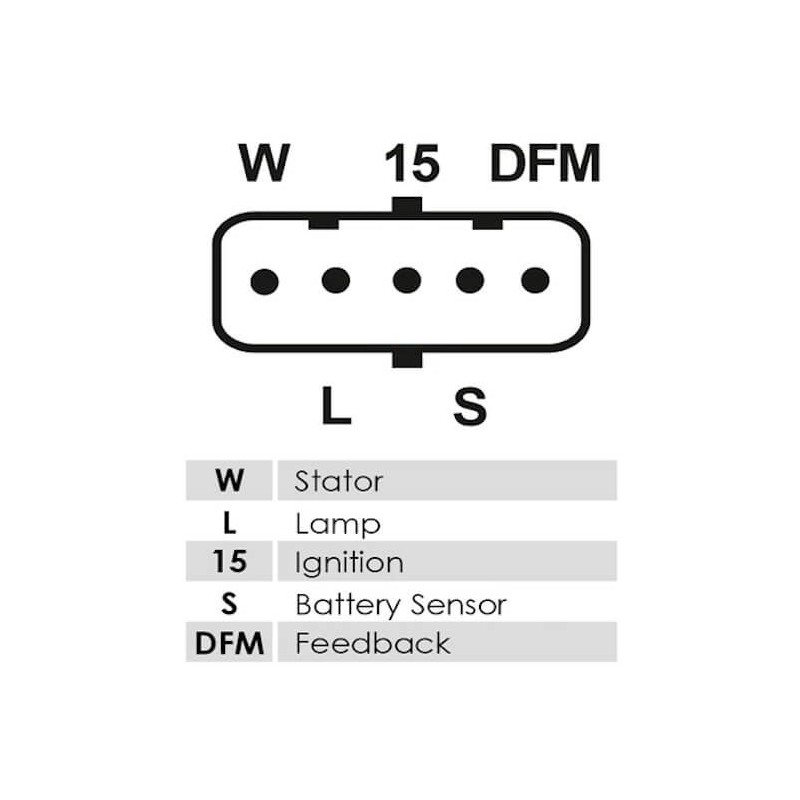

Plug typeW

replacing

0124655011Bosch
0124655047Bosch
012465504ABosch
0124655194Bosch
0986047520Bosch ruil
10326243Opel
11209611Mahle
115492Cargo
12201170AES
19092050Remy
1986A00519Bosch
1986A00970Bosch
485557Elstock
51261017253MAN
51261017259MAN
51261017268MAN
556508110PSH
72446572Mahle
72525343Mahle
860811Prestolite
AAN5399Mahle
ALT10305Wood Auto
BOS0124655011Wood Auto
DRB7520Remy
DRB7520XRemy
IA9459Mahle
LRA02943Lucas
LRA2943Lucas
MG795Mahle
RNL4752RNL
RNL4752NRRNL
RNL4752OERRNL
RNL4752PRNL
SEG0124655194Wood Auto
WOOALT10305Wood Auto

Fits :

BrandModelTypYahre
MAN18.360 10.5(TGA)[D2066LF38]01/01/06
MAN28.460 12.8(TGA)[D2876LF04]01/09/02
MAN19.480 12.4(TGS)[D2676LF02]01/02/11
MAN19.480 12.4(TGS)[D2676LF03]01/02/11
MAN19.480 12.4(TGS)[D2676LF20]01/02/11
MAN37.360 10.5(TGS)[D2066LF27]01/10/07
MAN19.400 10.5(TGS)[D2066LF06]01/02/11
MAN19.480 12.4(TGS)[D2676LF31]01/02/11
MAN37.360 10.5(TGS)[D2066LF38]01/10/07
MAN40.460 12.8(TGA)[D2876LF07]01/04/04
MAN19.400 10.5(TGS)[D2066LF49]01/02/11
MAN33.360 10.5(TGA)[D2066LF07]09.2007-09.2006
MAN33.410 12.0(TGA)[D2866LF28]01/10/00
MAN37.360 10.5(TGS)[D2066LF42]01/10/07
MAN15.250 6.9(TGM)[D0836LFL63]01/10/05
MAN19.400 10.5(TGS)[D2066LF63]01/02/11
MAN33.360 10.5(TGS)[D2066LF38]02.2009-06.2005
MAN33.410 12.0(TGA)[D2866LF32]01/10/00
MAN37.360 10.5(TGS)[D2066LF42]01/07/08
MAN28.510 12.8(TGA)[D2876LF05]01/09/02
MAN33.360 10.5(TGS)[D2066LF38]01/02/09
MAN28.410 12.0(TGA)[D2866LF28]01/09/02
MAN33.360 10.5(TGS)[D2066LF42]02.2009-06.2005
MAN33.360 10.5(TGS)[D2066LF42]02.2009-12.2005
MAN18.480 12.8(TGA)[D2876LF12]01/09/02
MAN41.440 10.5(TGS)[D2066LF25]01/10/07
MAN41.440 10.5(TGS)[D2066LF36]01/10/07
MAN41.440 10.5(TGS)[D2066LF36]01/07/08
MAN41.440 10.5(TGS)[D2066LF40]01/10/07
MAN41.440 10.5(TGS)[D2066LF40]01/07/08
MAN13.290 6.9(TGM)[D0836LFL64]01/10/05
MAN35.360 10.5(TGA)[D2066LF38]01/07/06
MAN35.360 10.5(TGS)[D2066LF27]01/10/07
MAN35.360 10.5(TGS)[D2066LF38]01/10/07
MAN35.360 10.5(TGS)[D2066LF38]01/08/08
MAN35.360 10.5(TGS)[D2066LF42]01/10/07
MAN24.480 12.8(TGA)[D2876LF12]01/09/02
MAN33.400 10.5(TGA)[D2066LF02]09.2007-03.2006
MAN35.360 10.5(TGS)[D2066LF42]01/08/08
MAN35.360 12.0[D2866LF27]01/10/03
MAN28.530 12.8(TGA)[D2876LF13]01/09/02
MAN33.530 12.8(TGA)[D2876LF13]01/09/02
MAN33.400 10.5(TGA)[D2066LF06]01/09/07
MAN40.480 12.8(TGA)[D2876LF12]01/04/04
MAN33.400 10.5(TGS)[D2066LF37]01/02/09
MAN40.480 12.8(TGA)[D2876LF25]01/04/04
MAN33.400 10.5(TGS)[D2066LF41]02.2009-09.2006
MAN28.480 12.4(TGA)[D2676LF02]01/02/06
MAN28.480 12.4(TGA)[D2676LF05]01/02/06
MAN28.480 12.4(TGA)[D2676LF14]01/02/06
MAN35.440 10.5(TGA)[D2066LF36]01/07/06
MAN26.330 6.9(TGM)[D0836LFL55]01/10/05
MAN35.440 10.5(TGA)[D2066LF36]01/11/06
MAN40.400 10.5(TGS)[D2066LF06]01/02/11
MAN40.400 10.5(TGS)[D2066LF49]01/02/11
MAN40.400 10.5(TGS)[D2066LF63]01/02/11
MAN15.280 6.9(TGM)[D0836LFL41]01/10/05
MAN15.280 6.9(TGM)[D0836LFL54]01/10/05
MAN28.540 12.4(TGA)[D2676LF13]01/08/06
MAN26.400 10.5(TGA)[D2066LF37]01/01/04
MAN26.400 10.5(TGA)[D2066LF37]01/04/06
MAN26.400 10.5(TGS)[D2066LF26]01/02/09
MAN26.400 10.5(TGS)[D2066LF37]01/10/07
MAN26.400 10.5(TGS)[D2066LF37]01/05/08
MAN18.340 6.9(TGM)[D0836LFL65]01/10/05
MAN26.400 10.5(TGS)[D2066LF37]01/07/08
MAN26.400 10.5(TGS)[D2066LF37]01/02/09
MAN28.310 12.0(TGA)[D2866LF26]01/09/02
MAN33.360 12.0(TGA)[D2866LF27]01/01/01
MAN26.280 6.9(TGM)[D0836LFL54]01/10/05
MAN26.400 10.5(TGS)[D2066LF41]01/07/08
MAN32.480 12.8(TGA)[D2876LF12]01/09/02
MAN33.360 12.0(TGA)[D2866LF27]01/09/02
MAN26.400 10.5(TGS)[D2066LF41]01/02/09
MAN33.360 12.0(TGA)[D2866LF37]01/09/02
MAN19.360 10.5(TGS)[D2066LF07]01/02/11
MAN19.360 10.5(TGS)[D2066LF48]01/02/11
MAN33.460 12.8(TGA)[D2876LF04]01/09/02
MAN19.360 10.5(TGS)[D2066LF64]01/02/11
MAN28.360 12.0(TGA)[D2866LF27]01/09/02
MAN32.440 10.5(TGS)[D2066LF36]01/08/08
MAN33.460 12.8(TGA)[D2876LF07]01/09/02
MAN35.480 12.4(TGA)[D2676LF05]01/07/06
MAN18.480 12.4(TGA)[D2676LF05]01/02/06
MAN28.320 10.5(TGA)[D2066LF39]01/06/04
MAN18.480 12.4(TGA)[D2676LF12]01/02/06
MAN28.320 10.5(TGS)[D2066LF39]01/07/08
MAN18.290 6.9(TGM)[D0836LFL64]01/10/05
MAN28.320 10.5(TGS)[D2066LF43]01/07/08
MAN28.440 10.5(TGA)[D2066LF25]01/09/05
MAN24.530 12.8(TGA)[D2876LF13]01/09/01
MAN28.440 10.5(TGA)[D2066LF36]01/09/05
MAN28.440 10.5(TGA)[D2066LF36]01/07/06
MAN40.410 12.0(TGA)[D2866LF28]01/04/04
MAN28.360 10.5(TGA)[D2066LF38]01/07/06
MAN28.440 10.5(TGS)[D2066LF36]01/08/08
MAN40.410 12.0(TGA)[D2866LF32]01/04/04
MAN26.340 6.9(TGM)[D0836LFL65]01/10/05
MAN28.360 10.5(TGS)[D2066LF38]01/08/08
MAN28.440 10.5(TGS)[D2066LF40]01/08/08
MAN28.360 10.5(TGS)[D2066LF42]01/08/08
MAN10.250 6.9(TGL)[D0836LFL63]01/04/05
MAN18.530 12.8(TGA)[D2876LF13]01/09/02
MAN41.390 10.5(TGA)[D2066LF02]01/09/07
MAN35.310 12.0(TGA)[D2866LF26]01/06/03
MAN35.310 12.0(TGA)[D2866LF26]01/11/03
MAN8.220 4.6(TGL)[D0834LFL65]01/04/05
MAN15.290 6.9(TGM)[D0836LFL64]01/10/05
MAN26.530 12.8(TGA)[D2876LF13]01/01/01
MAN18.240 6.9(TGM)[D0836LFL40]01/05/06
MAN26.530 12.8(TGA)[D2876LF13]01/09/02
MAN32.360 10.5(TGS)[D2066LF38]01/08/08
MAN41.350 10.5(TGA)[D2066LF03]01/09/07
MAN18.240 6.9(TGM)[D0836LFL53]01/05/06
MAN26.530 12.8(TGA)[D2876LF13]01/07/06
MAN41.480 12.8(TGA)[D2876LF12]01/07/06
MAN19.440 10.5(TGS)[D2066LF50]01/02/11
MAN19.440 10.5(TGS)[D2066LF62]01/02/11
MAN35.320 10.5(TGS)[D2066LF28]01/10/07
MAN37.320 10.5(TGS)[D2066LF28]01/10/07
MAN35.320 10.5(TGS)[D2066LF39]01/10/07
MAN37.320 10.5(TGS)[D2066LF39]01/10/07
MAN35.320 10.5(TGS)[D2066LF39]01/06/08
MAN37.320 10.5(TGS)[D2066LF43]01/10/07
MAN35.320 10.5(TGS)[D2066LF39]01/08/08
MAN13.250 6.9(TGM)[D0836LFL63]01/10/05
MAN35.320 10.5(TGS)[D2066LF43]01/10/07
MAN35.320 10.5(TGS)[D2066LF43]01/06/08
MAN18.540 12.4(TGA)[D2676LF13]01/08/06
MAN35.320 10.5(TGS)[D2066LF43]01/08/08
MAN8.250 6.9(TGL)[D0836LFL63]01/04/05
MAN35.480 12.8(TGA)[D2876LF12]01/09/03
MAN35.480 12.8(TGA)[D2876LF12]01/10/03
MAN35.410 12.0(TGA)[D2866LF28]01/10/03
MAN35.480 12.8(TGA)[D2876LF12]01/07/06
MAN10.220 4.6(TGL)[D0834LFL65]01/04/05
MAN19.440 12.4(TGS)[D2676LF04]01/02/11
MAN26.360 10.5(TGA)[D2066LF38]01/05/04
MAN26.360 10.5(TGA)[D2066LF38]01/06/04
MAN26.360 10.5(TGA)[D2066LF38]01/04/06
MAN12.250 6.9(TGL)[D0836LFL63]01/04/05
MAN26.360 10.5(TGS)[D2066LF27]01/08/08
MAN39.440 10.5(TGA)[D2066LF36]01/07/06
MAN26.360 10.5(TGS)[D2066LF38]01/10/07
MAN26.480 12.4(TGA)[D2676LF01]01/02/06
MAN33.480 12.8(TGA)[D2876LF12]01/09/02
MAN12.220 4.6(TGL)[D0834LFL65]01/04/05
MAN26.360 10.5(TGS)[D2066LF38]01/04/08
MAN39.480 12.4(TGA)[D2676LF05]01/07/06
MAN41.400 10.5(TGA)[D2066LF06]01/09/07
MAN26.320 10.5(TGA)[D2066LF39]01/04/06
MAN26.360 10.5(TGS)[D2066LF38]01/05/08
MAN26.480 12.4(TGA)[D2676LF05]01/01/06
MAN40.440 10.5(TGS)[D2066LF50]01/02/11
MAN41.400 10.5(TGA)[D2066LF06]01/12/08
MAN15.340 6.9(TGM)[D0836LFL65]01/10/05
MAN26.320 10.5(TGS)[D2066LF39]01/10/07
MAN26.360 10.5(TGS)[D2066LF38]01/08/08
MAN26.480 12.4(TGA)[D2676LF05]01/02/06
MAN40.440 10.5(TGS)[D2066LF62]01/02/11
MAN26.320 10.5(TGS)[D2066LF39]01/07/08
MAN26.360 10.5(TGS)[D2066LF42]04.2008-03.2009
MAN26.320 10.5(TGS)[D2066LF43]01/07/08
MAN26.360 10.5(TGS)[D2066LF42]01/08/08
MAN26.360 10.5(TGX)[D2066LF38]01/10/07
MAN35.400 10.5(TGA)[D2066LF37]01/02/04
MAN41.360 10.5(TGA)[D2066LF07]01/12/08
MAN26.360 10.5(TGX)[D2066LF38]01/07/08
MAN35.400 10.5(TGA)[D2066LF37]01/07/06
MAN26.360 10.5(TGX)[D2066LF42]01/07/08
MAN35.400 10.5(TGA)[D2066LF37]01/11/06
MAN32.400 10.5(TGS)[D2066LF26]01/10/07
MAN35.400 10.5(TGS)[D2066LF26]01/10/07
MAN41.360 10.5(TGS)[D2066LF38]01/07/08
MAN28.400 10.5(TGA)[D2066LF26]01/04/06
MAN32.400 10.5(TGS)[D2066LF37]01/10/07
MAN35.400 10.5(TGS)[D2066LF37]01/10/07
MAN41.360 10.5(TGS)[D2066LF42]01/07/08
MAN18.250 6.9(TGM)[D0836LFL63]01/10/05
MAN28.400 10.5(TGA)[D2066LF37]01/04/06
MAN32.400 10.5(TGS)[D2066LF37]01/08/08
MAN35.400 10.5(TGS)[D2066LF37]01/06/08
MAN28.400 10.5(TGA)[D2066LF37]01/07/06
MAN32.400 10.5(TGS)[D2066LF41]01/10/07
MAN35.400 10.5(TGS)[D2066LF37]01/08/08
MAN28.400 10.5(TGS)[D2066LF37]01/08/08
MAN35.400 10.5(TGS)[D2066LF41]01/06/08
MAN26.440 10.5(TGA)[D2066LF31]01/07/06
MAN28.400 10.5(TGS)[D2066LF41]01/08/08
MAN35.400 10.5(TGS)[D2066LF41]01/08/08
MAN26.440 10.5(TGA)[D2066LF36]01/01/04
MAN26.540 12.4(TGA)[D2676LF13]01/08/06
MAN28.480 12.8(TGA)[D2876LF12]01/09/02
MAN26.440 10.5(TGA)[D2066LF36]01/09/05
MAN26.440 10.5(TGS)[D2066LF25]01/02/09
MAN26.440 10.5(TGS)[D2066LF36]01/10/07
MAN41.530 12.8(TGA)[D2876LF13]01/09/02
MAN26.440 10.5(TGS)[D2066LF36]01/02/09
MAN41.530 12.8(TGA)[D2876LF13]01/12/04
MAN26.440 10.5(TGS)[D2066LF40]01/02/09
MAN41.530 12.8(TGA)[D2876LF13]01/07/06
MAN26.440 10.5(TGX)[D2066LF36]01/12/07
MAN15.240 6.9(TGM)[D0836LFL40]01/10/05
MAN26.440 10.5(TGX)[D2066LF36]01/05/08
MAN35.530 12.8(TGA)[D2876LF13]01/06/04
MAN18.440 10.5(TGA)[D2066LF25]01/09/05
MAN35.530 12.8(TGA)[D2876LF13]01/07/06
MAN15.240 6.9(TGM)[D0836LFL53]01/10/05
MAN18.440 10.5(TGA)[D2066LF36]01/09/05
MAN26.480 12.8(TGA)[D2876LF12]01/09/02
MAN40.440 12.4(TGS)[D2676LF04]01/02/11
MAN33.390 10.5(TGA)[D2066LF02]01/09/07
MAN18.360 10.5(TGA)[D2066LF07]01/01/06
MAN18.360 10.5(TGA)[D2066LF27]01/01/06
MAN33.390 10.5(TGA)[D2066LF06]09.2007-03.2006
