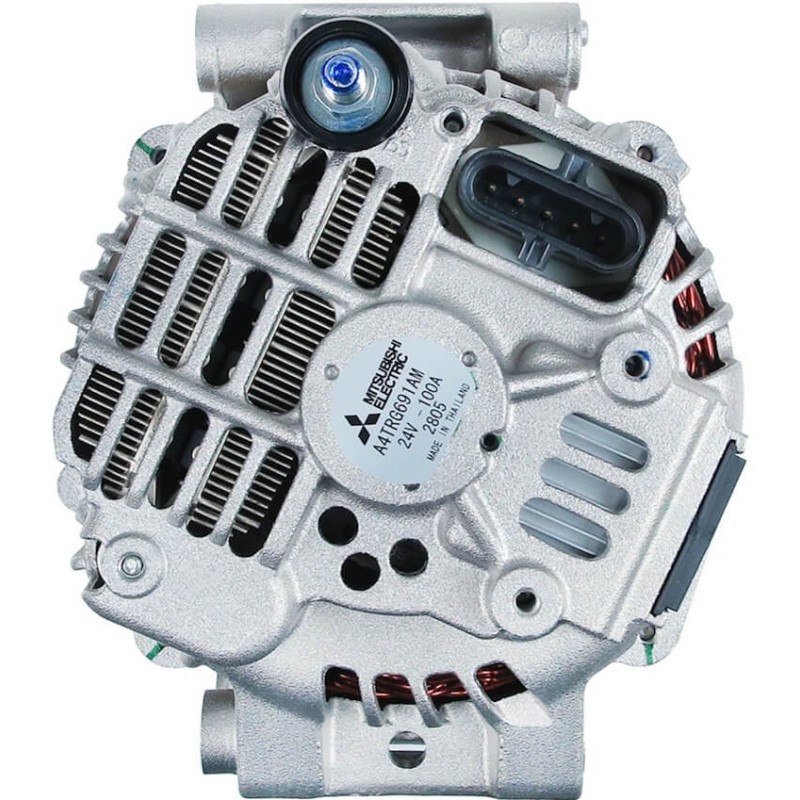

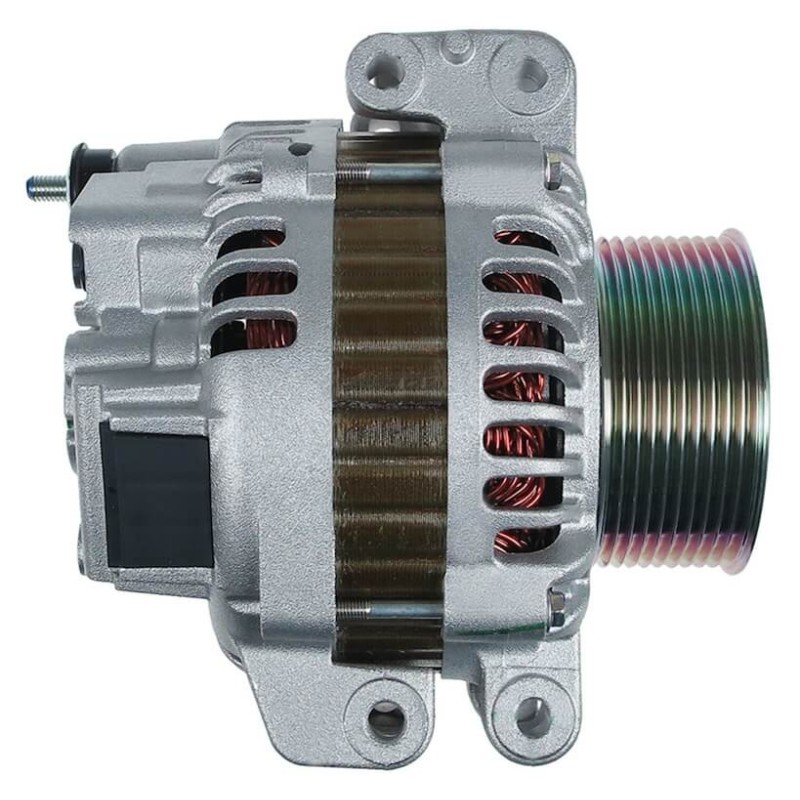

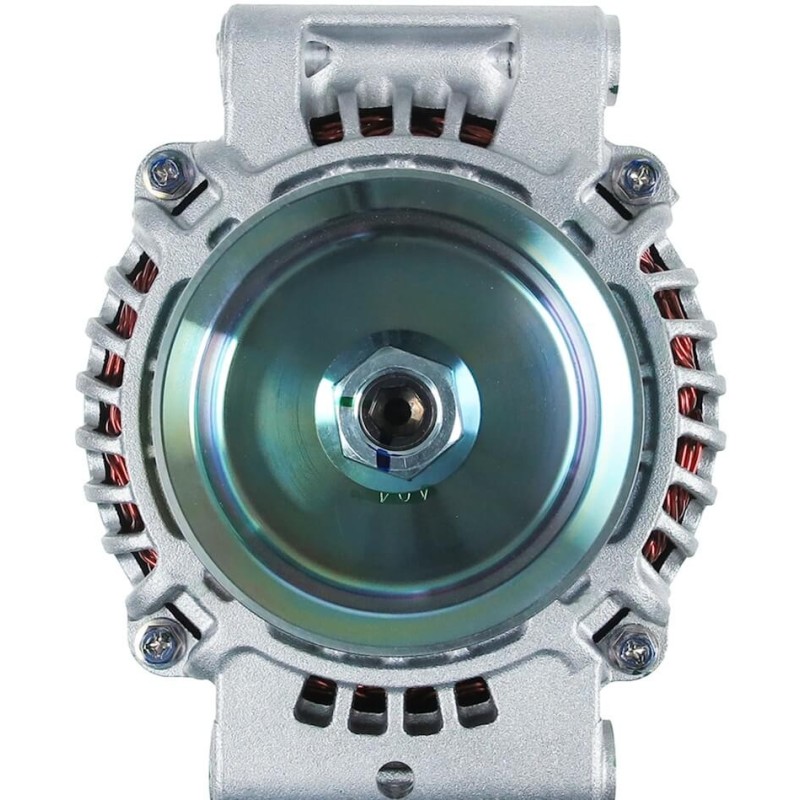

MITSUBISHI Alternator A004TRG691AM / A004TRG691 for SCANIA Truck

All of our alternators and starters are new and come with a two-year warranty.

About Us

WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.

Our Logistics

Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.

Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product

Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers

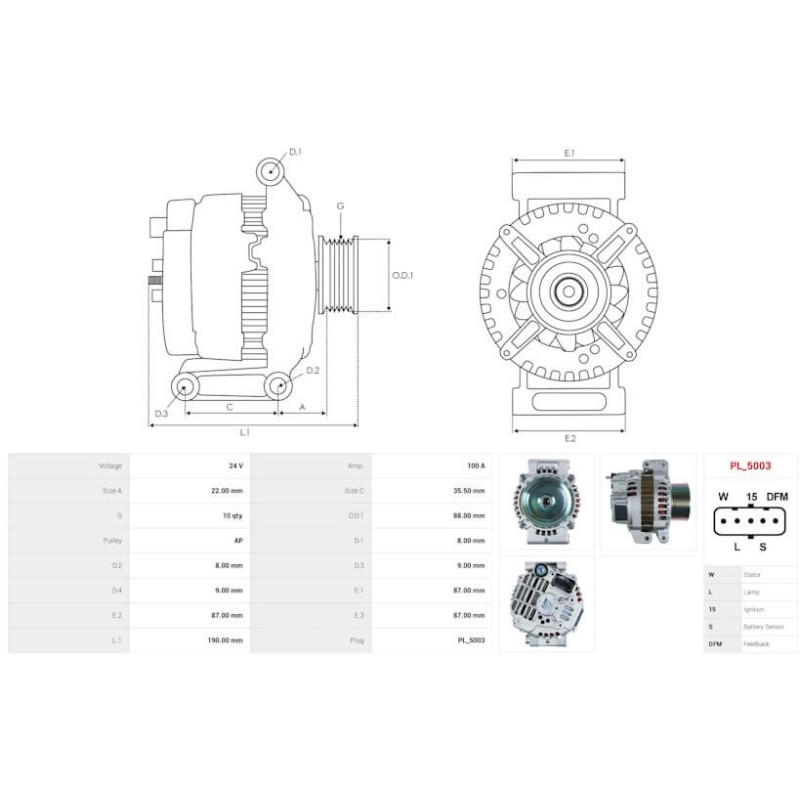

Specifications

Voltage [ V ] 24

Current [ A ] 100

Size A [ mm ] 22.00

Size C [ mm ] 35.50

G [ qty. ] 10

O.D.1 [ mm ] 88.00

Pulley AP

D.1 [ mm ] 8.00

D.2 [ mm ] 8.00

D.3 [ mm ] 9.00

D.4 [ mm ] 9.00

E.1 [ mm ] 87.00

E.2 [ mm ] 87.00

E.3 [ mm ] 87.00

L.1 [ mm ] 190.00

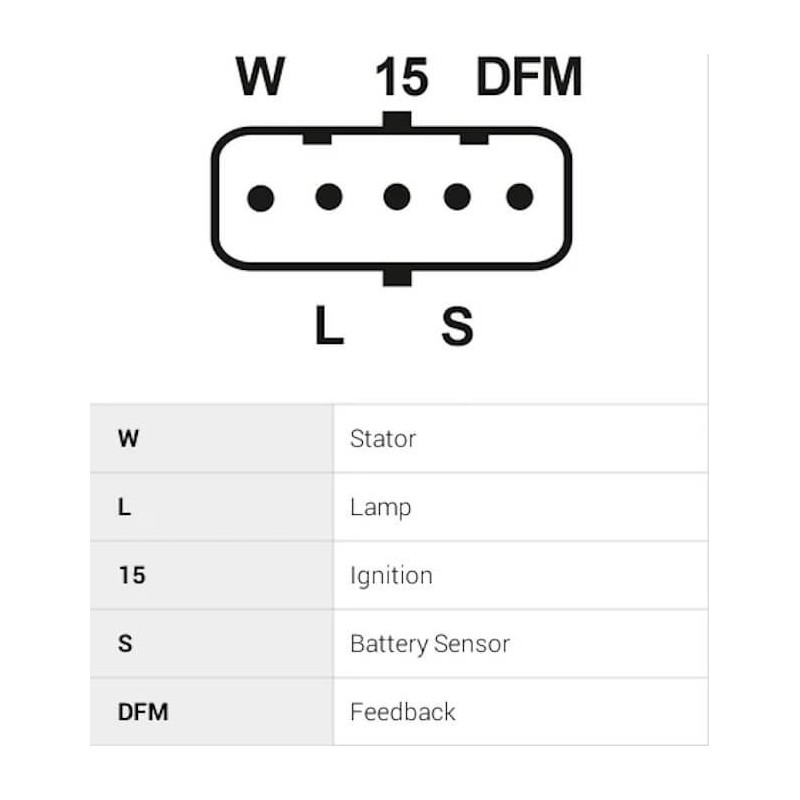

Connector PL_5003

PWM-controlled alternator!!! The IG/15 terminal is an electronic control terminal!!! In most cases, only the IG and S terminals are used for this application.
