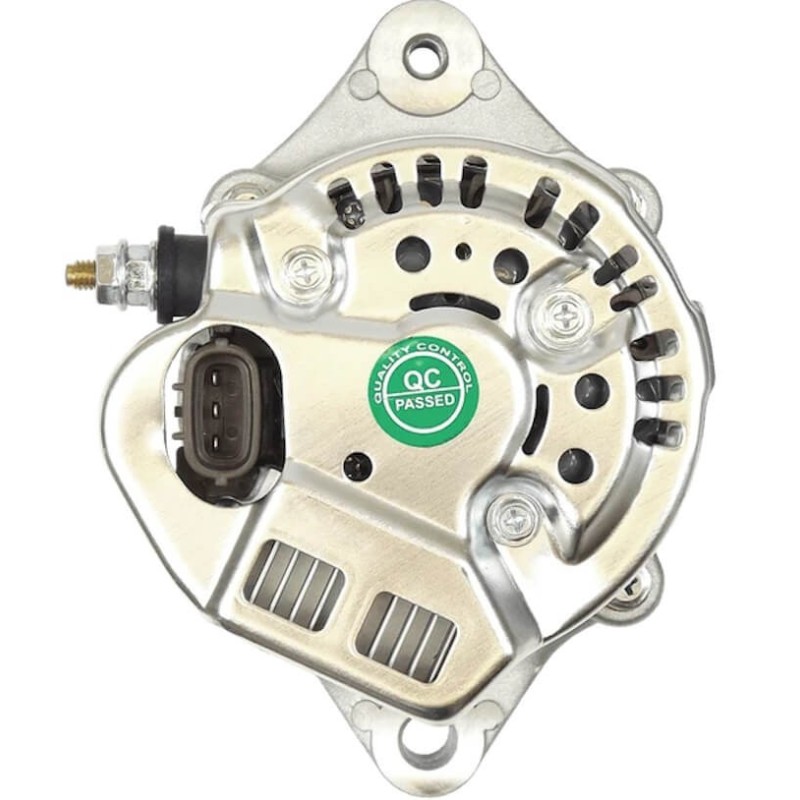

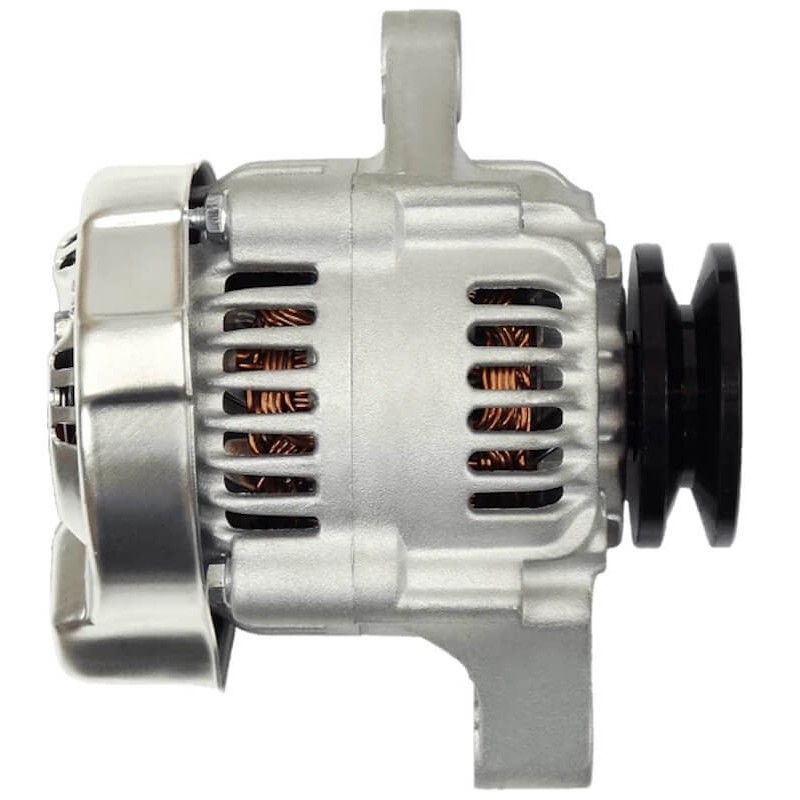

Alternator NEW for KUBOTA, Steiner
= DENSO 100211-4730 / 100211-4731 / 100211-4732 / 100211-4733
= KUBOTA 16678-64011 / 16678-64012
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Voltage 14
Amp 40
D = Bracket hole 10.50
G = Belt. adj. bracket hole M8
B = Width/holder arm 24.20
E = Belt. adj. brackethole pos. 60
J = Radius 70.00
J = Radius 67.50
Position B + M6
Rotation Cr

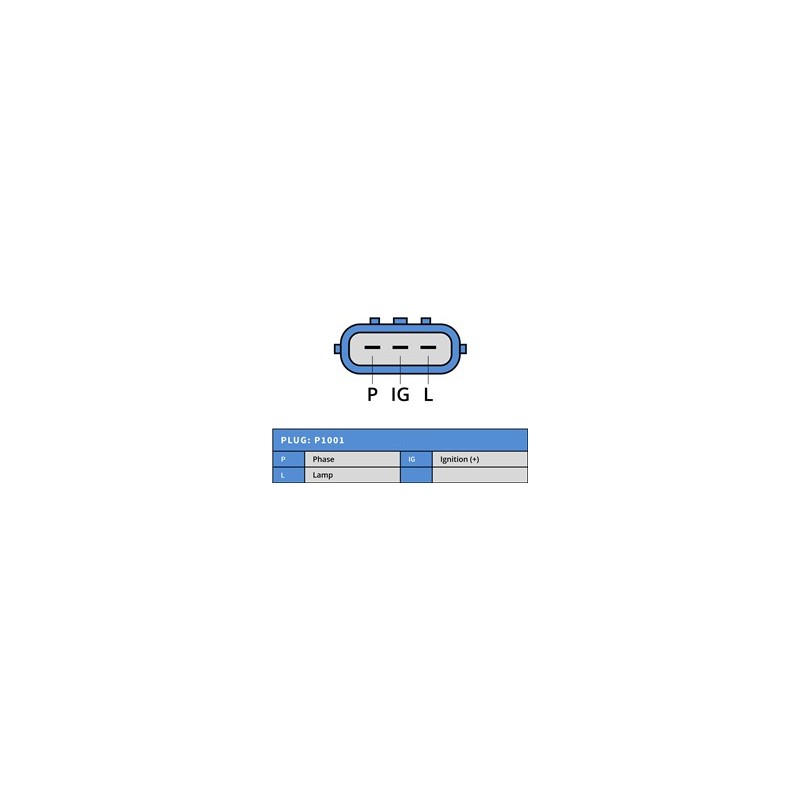

Plug no. 1 PL128
Fan If
Pulley Without
R = Total length mm 143.50
generic brand
| 0210802390 | Denso |
| 024730 | Andre Niermann |
| 1002114730 | Denso |
| 1002114731 | Denso |
| 1002114732 | Denso |
| 1002114733 | Denso |
| 1012111100 | Denso |
| 1012111281 | Denso |
| 1012111282 | Denso |
| 1012111283 | Denso |
| 1012111390 | Denso |
| 1012111450 | Denso |
| 113856 | Cargo |
| 114205 | Cargo |
| 12060937 | EuroTec |
| 12202 | EAI |
| 1667864010 | Kubota |
| 1667864011 | Kubota |
| 1667864012 | Kubota |
| 1667864013 | Kubota |
| 185046440 | Kubota |
| 1G01264011 | Kubota |
| 2122 | CEVAM |
| 284677 | Elstock |
| 290175 | PIC |
| 583108402 | DRI |
| 695503040 | PSH |
| 90295295 | Wilson |
| 912202 | DuBois |
| 930347 | EDR |
| 9337 | CEVAM |
| DAN2027 | Denso |
| DRA0347 | Remy |
| EF37430 | EDR |
| LRA02208 | Lucas |
| LRA2208 | Lucas |
fits:
For engines KUBOTA :
- D750 - D950 - DF972 - DG972 - D902 - D1105
- V1505 - V1505-TE - V1505-E
- Schäffer 222 - 222 S - 1336 - 3046
- BOCAT - B200
- BOBCAT - D1105
- GHEL - KUBOTA D1105
- GHEL - SL1640
- KUBOTA - Z602
| Brand | Model | Typ | Year |
| BELOS | Trans Pro 3440 | [D1105-T] | 01/01/08 |
| KUBOTA | D1105 | ||
| KUBOTA | V1505-B | 01/01/92 | |
| NORCAR | 760 | [D1105] | 01/01/07 |
| SCHAFFER | 222 | [D1105] | |
| SCHAFFER | 222S | [D1105] | 01/01/08 |
| SCHAFFER | 2336 | [V1505] | 01/01/08 |
| SCHAFFER | 3033S | [V1505-T] | 01/01/04 |
| SCHAFFER | 3046 Yard Loader | [V1505-T] | 01/01/07 |
| SCHAFFER | Comfort 45 | [V1505-T] | 01/01/04 |
| STEINER | 230 | ||
| TUCHEL | Trac Trio | [Z602-E3B] | 01/01/06 |
