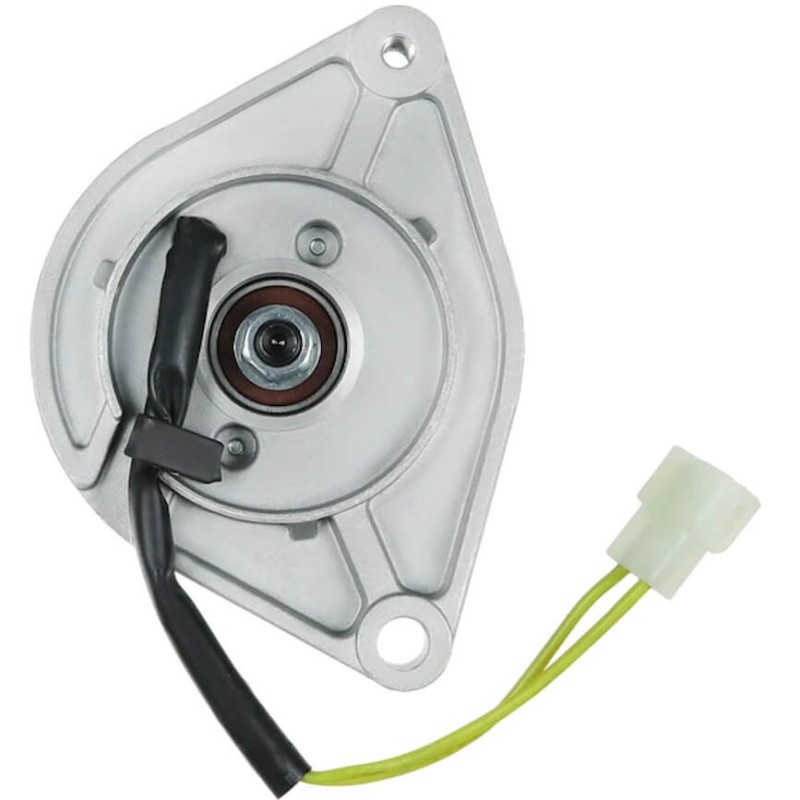

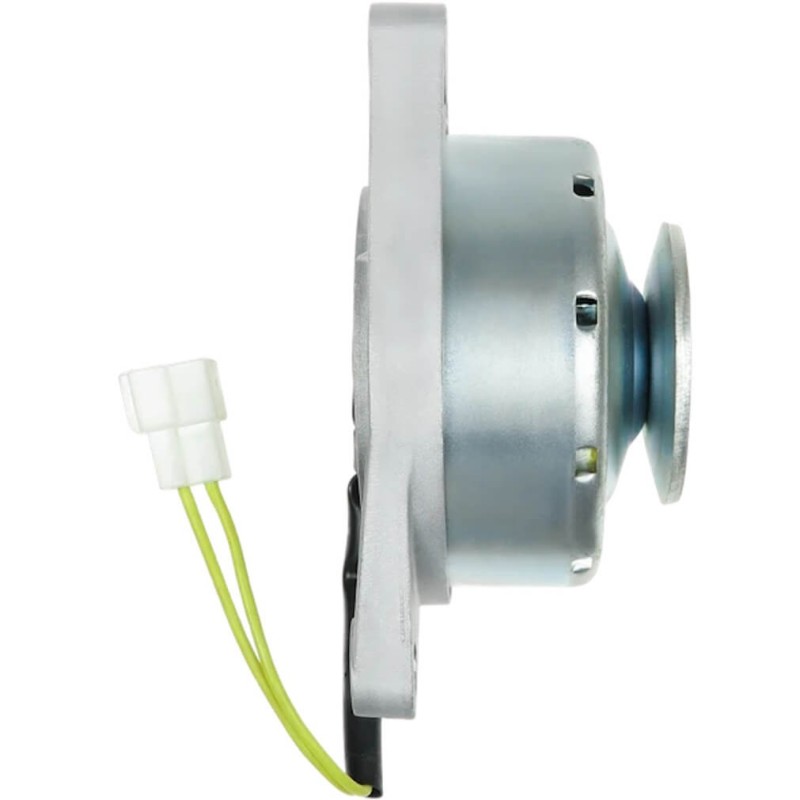

Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Previous
Next
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160
Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160

Alternator replacing GP8136 / GP9150 / CAL56101AS / 185046160

wA9284S | Brand : AS
12145077200 YANMAR
151-14110 DIXIE
2056101 SANDO
20670N WAI / TRANSPO
ALT42700 WOODAUTO
ALTS460 3EFFE
ALZ2045 KRAUF
ALZ3045 KRAUF
ALZ6045 KRAUF
CAL56101 CASCO
CAL56101AS CASCO
CAL56101ES CASCO
CAL56101GS CASCO
Read more
€79.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

12145077200 YANMAR
151-14110 DIXIE
2056101 SANDO
20670N WAI / TRANSPO
ALT42700 WOODAUTO
ALTS460 3EFFE
ALZ2045 KRAUF
ALZ3045 KRAUF
ALZ6045 KRAUF
CAL56101 CASCO
CAL56101AS CASCO
CAL56101ES CASCO
CAL56101GS CASCO
CAL56101OS CASCO
CAL56101RS CASCO
UD15430A AS-PL
185046160 PERKINS
GP8136 YANMAR
GP9150 YANMAR

Features

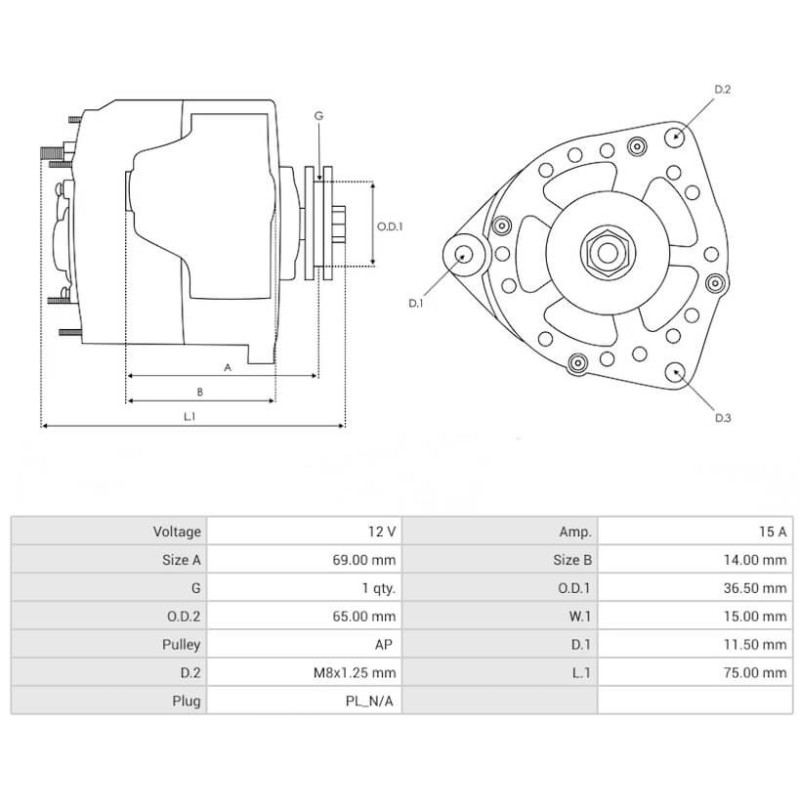

Specifications

Voltage [ V ] 12
Amp. [ A ] 15
Size A [ mm ] 69.00
Size B [ mm ] 14.00
G [ qty. ] 1
O.D.1 [ mm ] 36.50
O.D.2 [ mm ] 65.00
W.1 [ mm ] 15.00
Pulley AP
D.1 [ mm ] 11.50
D.2 [ mm ] M8x1.25
L.1 [ mm ] 75.00
Plug PL_N/A

Mounting on

Brand Model Typ Year
GENIE AL4000 403D-11G -
GENIE TML4000 403D-11G -
GENIE RL4000 403D-11G -
GENIE TML4000N F3M1008 -
TEREX AL4000 403D-11G -
YANMAR YM140 2T75UA 01.1984 - 12.1992
YANMAR YM145 2T75UA 01.1984 - 12.1992
YANMAR YM140D 2T75UA 01.1984 - 12.1992
YANMAR YM155D 2T75UA 01.1984 - 12.1992
YANMAR YM169D 3T75HA-A 01.1986 - 12.1989
YANMAR YM169 3T75HA-A 01.1986 - 12.1989
YANMAR YM276D 3T84HA 01.1981 - 12.1991
YANMAR YM276 3T84HA 01.1981 - 12.1991
