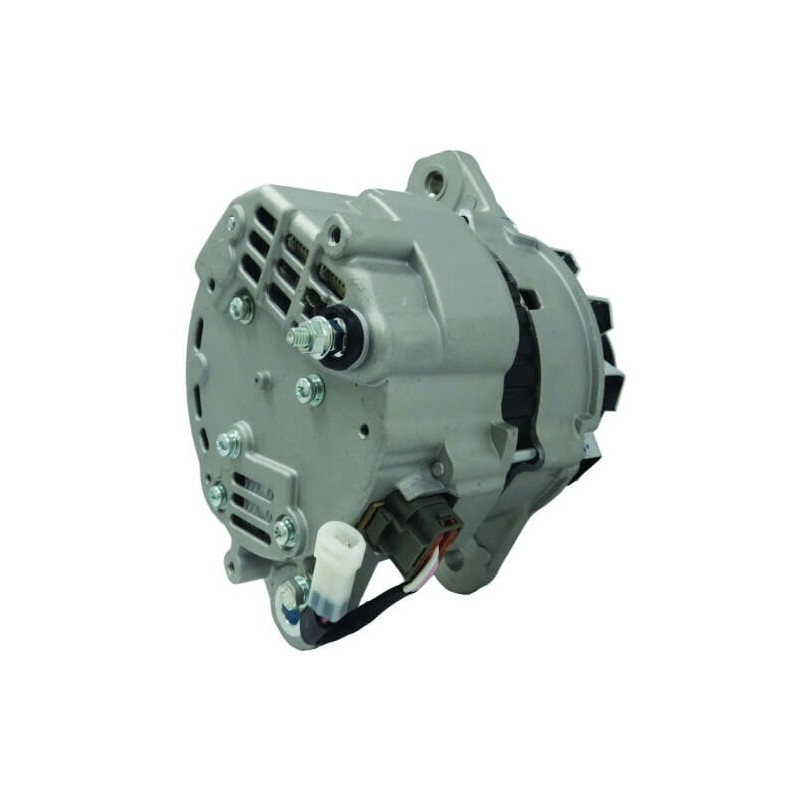

Alternator replacing A004TU3599 / 212-8561 / 34368-03800
Alternator for Caterpillar Ag. & Ind. (1996-2008)
ATTENTION MODEL PULLEY 12 GROOVES
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 40.30 |
| B | Width/holder arm | 13.50 |
| C | Mount. bracket dist. | 80.50 |
| D | Bracket hole | 12.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M12-1.25 |
| H | Pulley dia. | 80.50 |
| I | Grooves/pulley | 12 |
| J | Radius | 95.00 |
| J | Radius 2 | 95.00 |
| K | B+ | M6 |
| K | Position/B+ in min. | 12 |
| N | Rotation | CW |

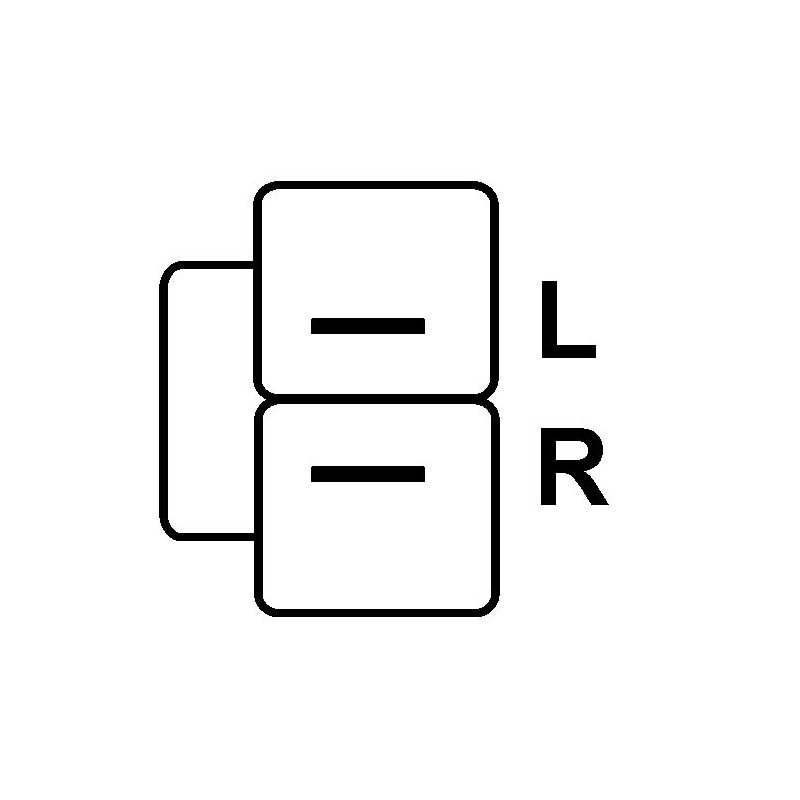

| O | Plug no. | PL89 |
| R | Total length mm | 221.00 |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Regulator type | IR | |
Electrical information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 50 | |
generic brand
