Alternator replacing 0124415016 / 0124415030 / 0124415031 / 0124415032
Alternator NEW replacing 0124415016 / 0124415030 / 0124415031 / 0124415032 /0986042790 / 0986047260 FORD 1450633, 1C1T-10300-AB, 1C1T-10300-AD, 1C1T-10300-AE, 1C1T-10300-AF, 2C1T-10300-AA, 2C1T-10300-AB, R1C1T-10300-AF
More info
Spécification Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 105 | |
Spécification Physique | ||
|---|---|---|
| A | Pulley dist. | 40.00 |
| B | Width/holder arm | 56.00 |
| C | Mount. bracket dist | 75.00 |
| D | Bracket hole | 10.33 |
| D | Trou from fixation support 2 | 12.95 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 10.75 |
| H | Pulley dia. | 53.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 90.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 50 |
| N | Rotation | Cr |

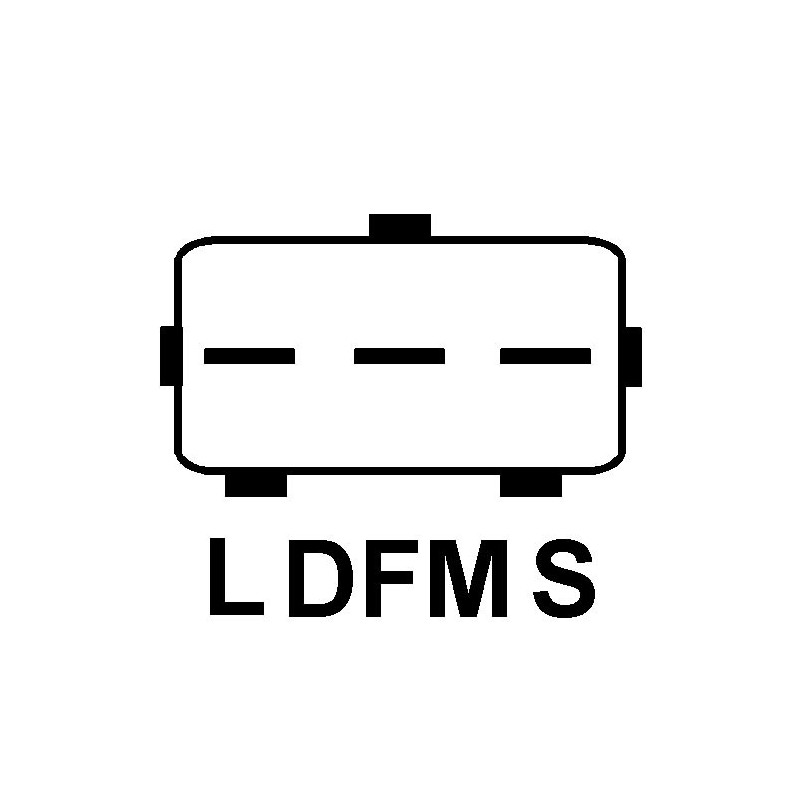

| O | Plug n° 1 | PL81 |
| R | Total length mm | 179.50 |
Replacing | |
|---|---|
| 0124415016 | BOSCH |
| 0124415030 | BOSCH |
| 0124415031 | BOSCH |
| 0124415032 | BOSCH |
| 1450633 | FORD |
| 1C1T10300AB | VOLKSWAGEN |
| 1C1T10300AD | FORD |
| 1C1T10300AE | FORD |
| 1C1T10300AF | FORD |
| 2C1T10300AB | FORD |
| 2C1T10300AA | FORD |
| 4407889 | FORD |
| CA1636IR | HC-PARTS |
| R1C1T10300AF | FORD |
generic brand
Mounted on :
| Model | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
| Transit | Diesel | 2000 08 | - | ABFA | Diesel Di | 74 | 100 | Boîte/Trucksnette | 1998 | 4 | FABY,FACY | |
| Transit | Diesel | 2000 08 | - | ABFA | Diesel Di | 74 | 100 | Pick-up | 1998 | 4 | FM_Y,FN_Y | |
| Transit | Diesel | 2000 08 | - | F3FA | Diesel Di | 63 | 86 | Pick-up | 1998 | 4 | FMEY,FMFY,FNFY | |
| Transit | Diesel | 2000 06 | 2005 03 | Diesel | 74 | 101 | De bus | 1998 | 4 | FC_ _ | ||
| Transit | Diesel | 2000 08 | - | ABFA | Diesel Di | 74 | 100 | De bus | 1998 | 4 | FD_Y,FB_Y,FS_Y,FZ_Y,F_EY,F_FY | |
| Transit | Diesel | 2002 08 | - | FIFA | TDCi | 92 | 125 | De bus | 1998 | 4 | FD_Y,FB_Y,FS_Y,FZ_Y | |
| Transit | Diesel | 2000 08 | - | F3FA | Diesel Di | 63 | 86 | De bus | 1998 | 4 | FD_Y,FB_Y,FS_Y,FZ_Y,F_EY,FY,GY | |
| Transit | Diesel | 2000 08 | - | D3FA | Diesel Di | 55 | 75 | Boîte/Trucksnette | 1998 | 4 | FABY,FACY | |
| Transit | Diesel | 2002 03 | 2006 03 | FIFA | Diesel | 92 | 125 | De bus | 1998 | 4 | FC_ _ | |
| Transit | Diesel | 2000 08 | - | D3FA | Diesel Di | 55 | 75 | Pick-up | 1998 | 4 | FM_Y,FN_Y | |
| Transit | Diesel | 2000 06 | 2003 08 | D3FA | Diesel | 55 | 75 | De bus | 1998 | 4 | FC_ _ | |
| Transit | Diesel | 2000 08 | - | F3FA | Diesel Di | 63 | 86 | Boîte/Trucksnette | 1998 | 4 | FAEY,FAFY,FAGY | |
| Transit | Diesel | 2000 08 | - | D3FA | Diesel Di | 55 | 75 | De bus | 1998 | 4 | FD_Y,FB_Y,FS_Y,FZ_Y,F_EY,F_FY | |
| Transit | Diesel | 2002 08 | - | FIFA | TDCi | 92 | 125 | Pick-up | 1998 | 4 | FM_Y,FN_Y | |
| Transit | Diesel | 2002 08 | - | FIFA | TDCi | 92 | 125 | Boîte/Trucksnette | 1998 | 4 | FA_Y |
