Alternator replacing BOSCH 0124525056 / 0124525057 / PORSCHE 99760301202 / 99760301203
W115678

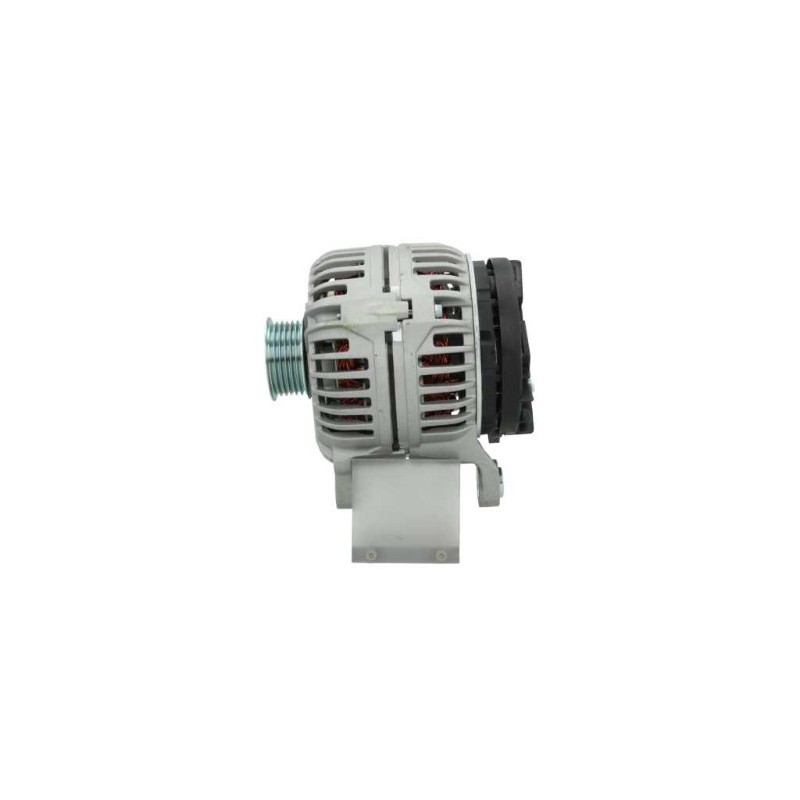

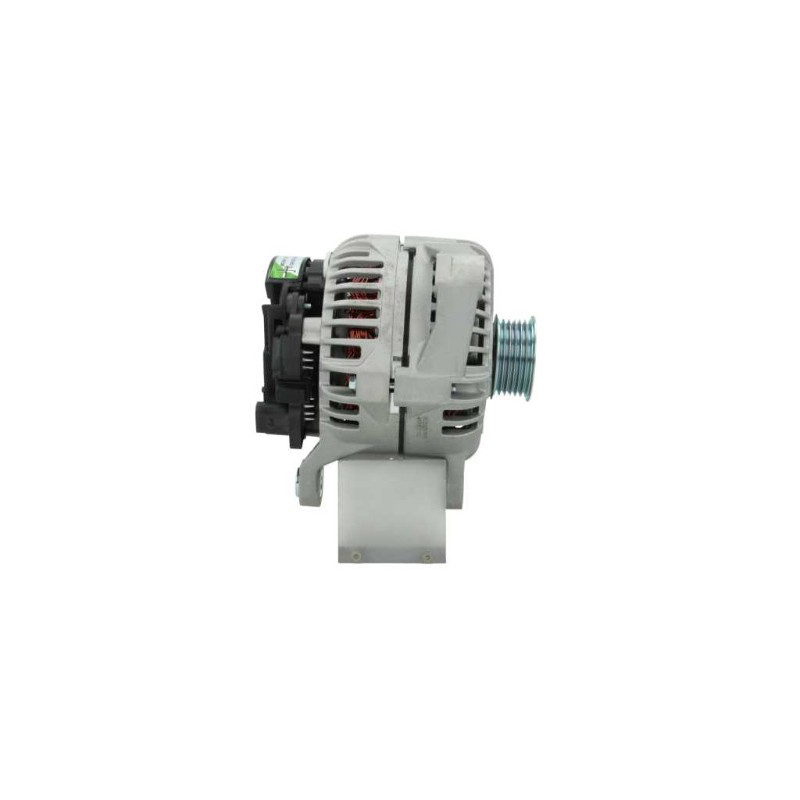

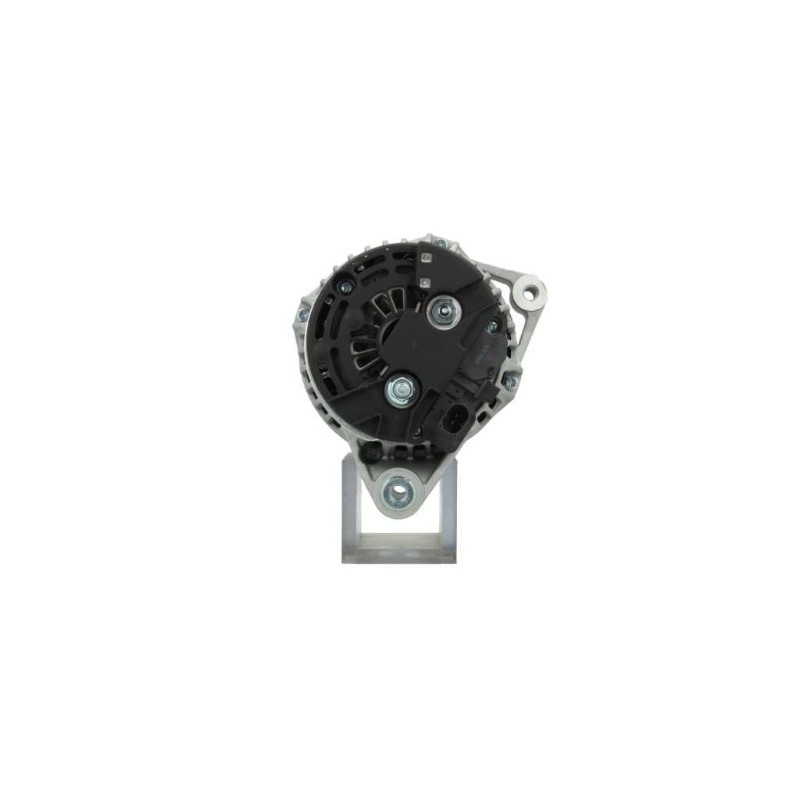

Alternator NEW replacing BOSCH 0124525056 / 0124525057 / PORSCHE 99760301202 / 99760301203
DRB7140 / LRA03090
Available as BOSCH under the reference w485501150
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |

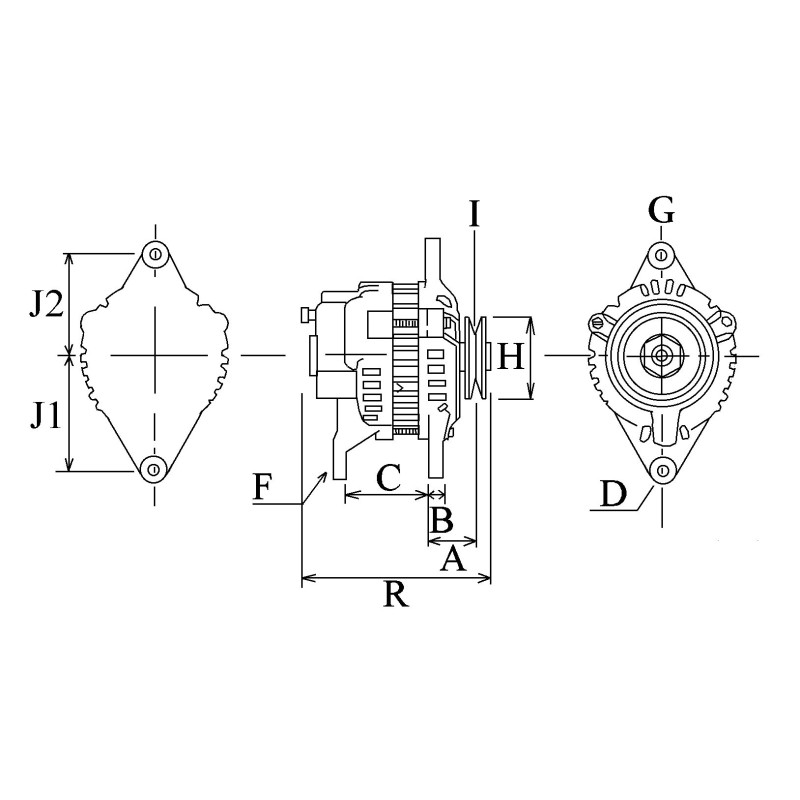

Physical Information | ||
|---|---|---|
| D | Bracket hole | M10 |
| G | Belt. adj. bracket hole | M10 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 47 |
| C | Mount. bracket dist | 82.00 |
| H | Pulley dia. | 53.00 |
| A | Pulley dist. | 32.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 94.00 |
| j | Radius 2 | 104.00 |
| k | Position B + | M8 |
| n | Rotation | CW |
| o | Plug no. 1 | PL61 |
| R | Total length mm | 184.00 |
Replacing | |
|---|---|
| 0124525056 | BOSCH |
| 0124525057 | BOSCH |
| 99760301202 | PORSCHE |
| 99760301203 | PORSCHE |
generic brand
Mounted on PORSCHE 911 / BOXSTER / CAYMAN / CARRERA
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
