Alternator
Alternator replacing AAN5405 / 72446642 / 1976292 / 1927312 / 1649066 / 11.209.616 /
€219.90
Alternator replacing MITSUBISHI A002TJ1291 / A002TJ1291AE / A002TJ1291ZE / A2TJ1291
w116009
Alternator NEW replacing MITSUBISHI A002TJ1291 / A002TJ1291AE / A002TJ1291ZE / A2TJ1291 / A2TJ1291AE / A2TJ1291ZE
NISSAN 23100-1KA1A / 23100-1KA1M
= DRA0859 / 0986082730
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Features
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
generic brand

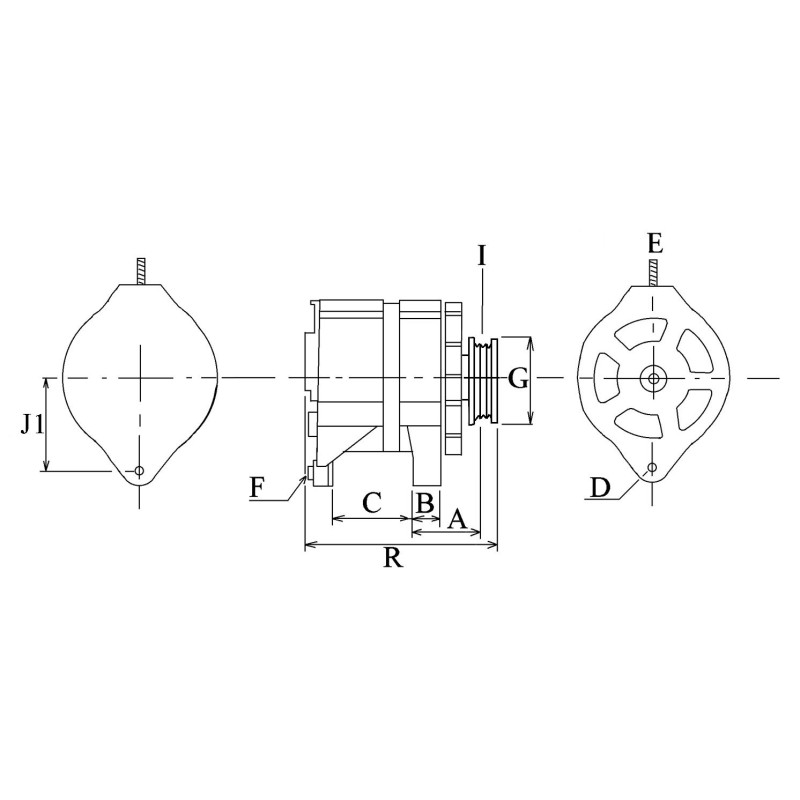

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 14.20 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 59.00 |
| H | Pulley dia. | 55.00 |
| A | Pulley dist. | 32.50 |
| i | Grooves/pulley | 7 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

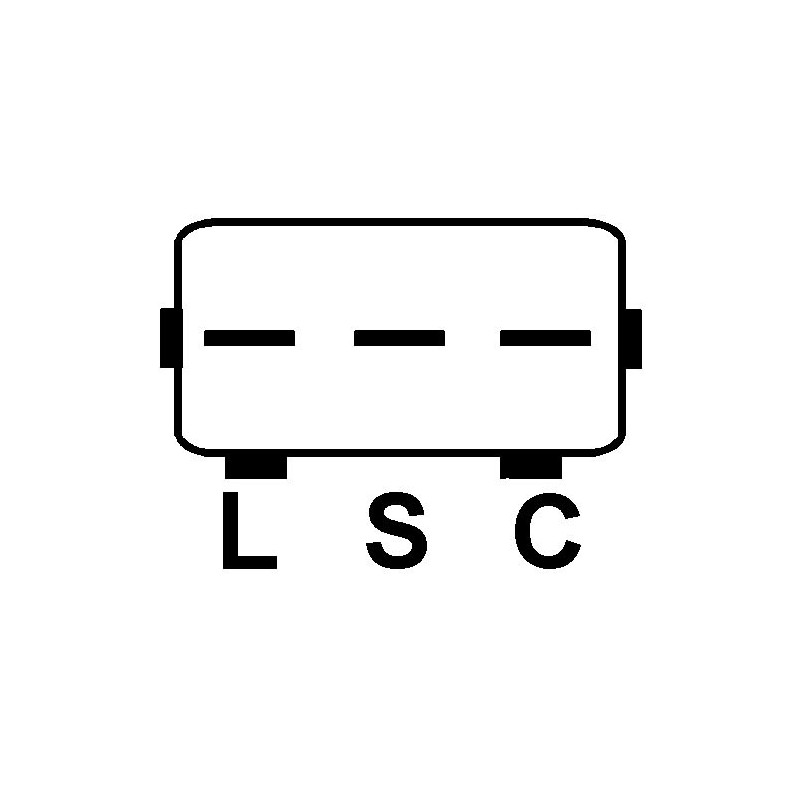

| o | Plug no. 1 | PL163 |
| R | Total length mm | 187.00 |
Replacing | |
|---|---|
| 23100-1KA1A | NISSAN |
| 23100-1KA1M | NISSAN |
| A002TJ1291 | MITSUBISHI |
| A002TJ1291AE | MITSUBISHI |
| A002TJ1291ZE | MITSUBISHI |
| A2TJ1291 | MITSUBISHI |
| A2TJ1291AE | MITSUBISHI |
| A2TJ1291ZE | MITSUBISHI |
| ca2183ir | HC-PARTS |
Mounted on :
NISSAN
| Juke | Juke | 1.6 | Unleaded | 2010 06 | HR16DE | 86 | 117 | Hayon | 1598 | 4 | ||
| Juke | Juke | 1.6 | Électrique/essence | 2012 01 | HR16DE | LPG | 85 | 116 | Hayon | 1598 | 4 | F15 |
| Juke | Juke | 1.6 | Unleaded | 2013 01 | HR16DE | 69 | 94 | Hayon | 1598 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
