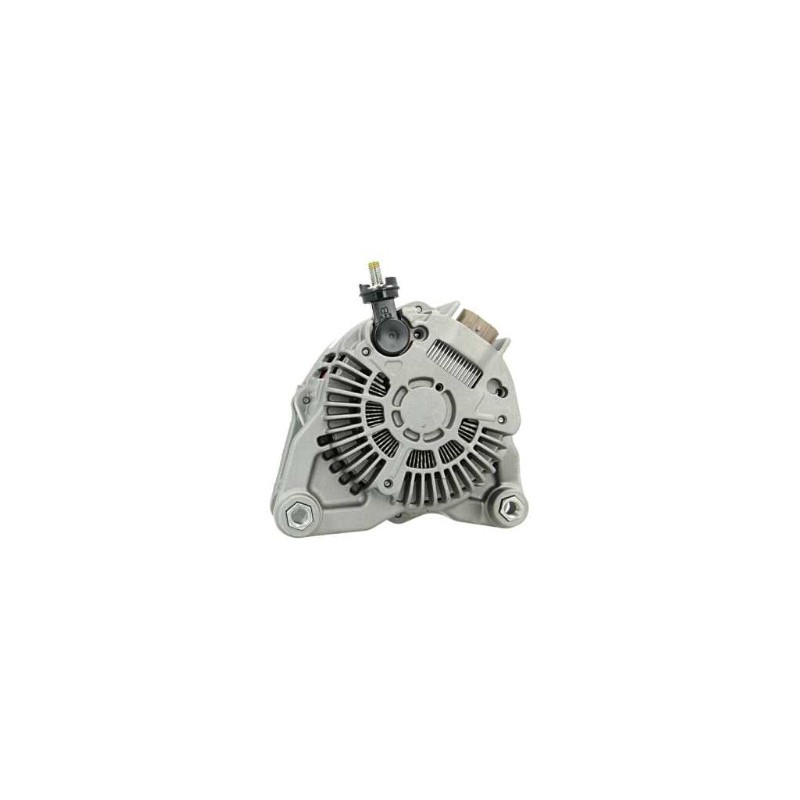

Alternator replacing MITSUBISHI A005TJ0591ZT / A005TJ0591ZX / A005TL0491 / A5TJ0591ZT / A5TJ0591ZX / A5TL0491
Alternator replacing MITSUBISHI A005TJ0591ZT / A005TJ0591ZX / A005TL0491 / A5TJ0591ZT / A5TJ0591ZX / A5TL0491
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |

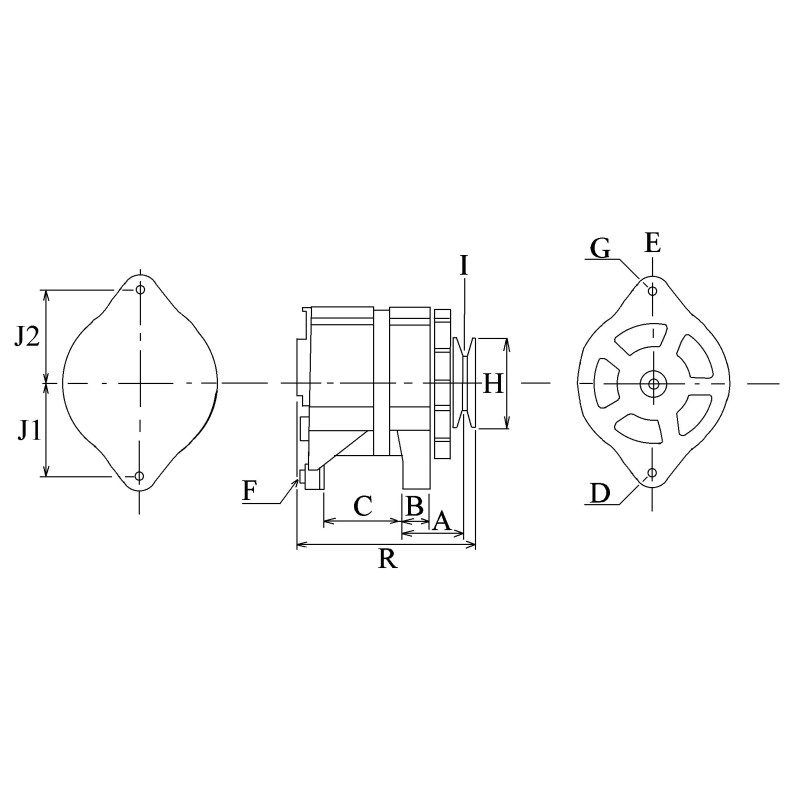

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 46 |
| C | Mount. bracket dist | 66.20 |
| H | Pulley dia. | 51.00 |
| A | Pulley dist. | 44.30 |
| i | Grooves/pulley | 6 |
| j | Radius | 93.00 |
| j | Radius 2 | 86.5 |
| k | Position B + | M8 |
| n | Rotation | CW |

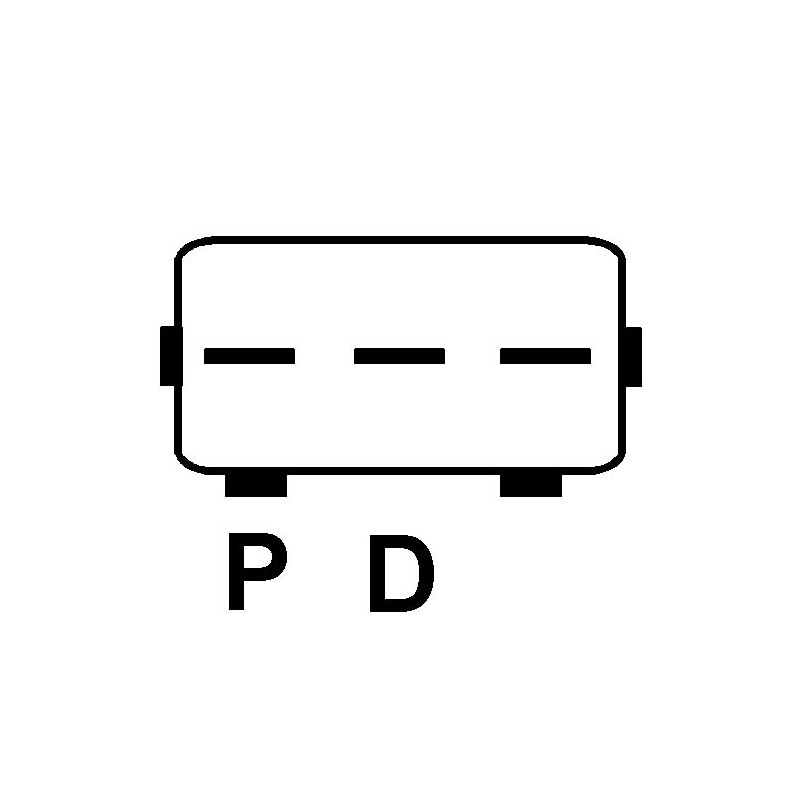

| o | Plug no. 1 | PL139 |
| G | Belt. adj. bracket hole 2 2 | M10 |
Replacing | |
|---|---|
| A005TJ0591ZT | MITSUBISHI |
| A005TJ0591ZX | MITSUBISHI |
| A005TL0491 | MITSUBISHI |
| A5TJ0591ZT | MITSUBISHI |
| A5TJ0591ZX | MITSUBISHI |
| A5TL0491 | MITSUBISHI |
| P51X-18-300 | MAZDA |
| P53N-18-300 | MAZDA |
| PE01-18-300 | MAZDA |
generic brand
Mounted on :
MAZDA
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
