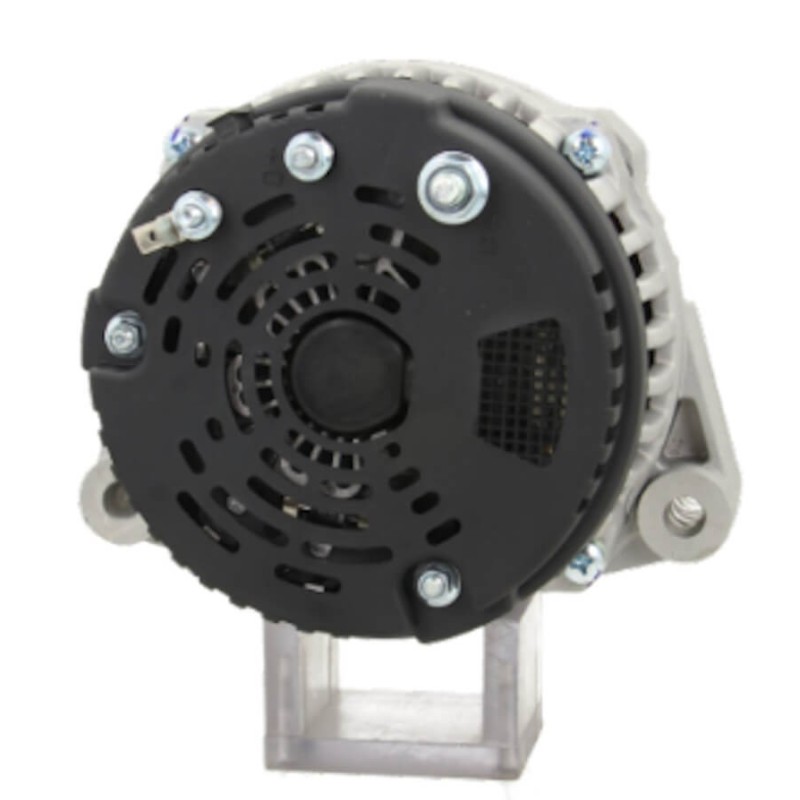

Alternator replacing BOSCH 0123520015 / SAME 294396100 / MAHLE AAN5308 / IA1057
Alternator NEW replacing BOSCH 0123520015 / SAME 294396100 / MAHLE AAN5308 / IA1057
Sold WITHOUT pulley
Version origine MAHLE disponible W56502150
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |

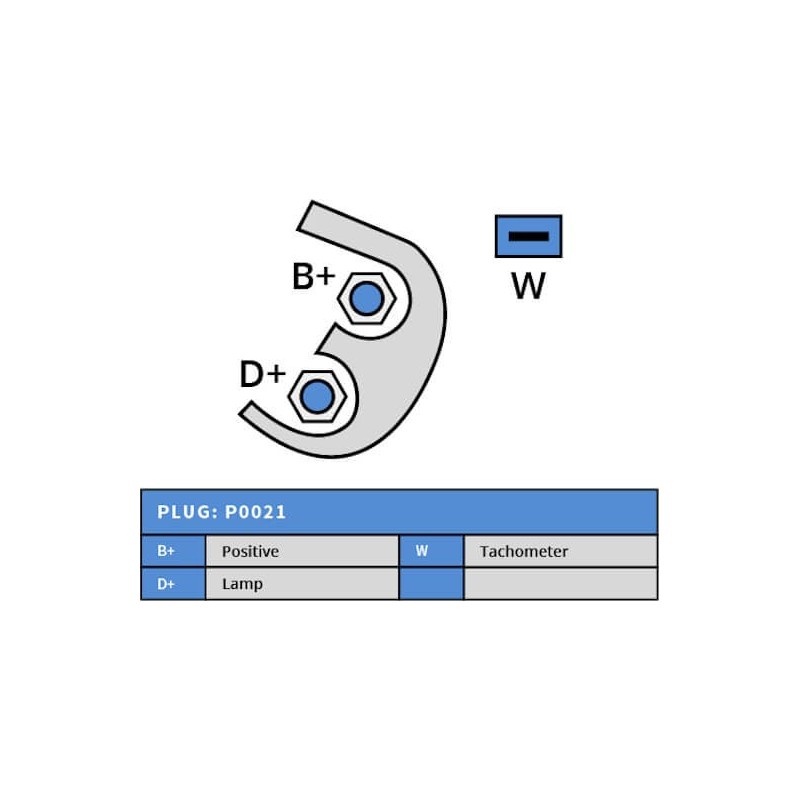

| Plug type | W | |

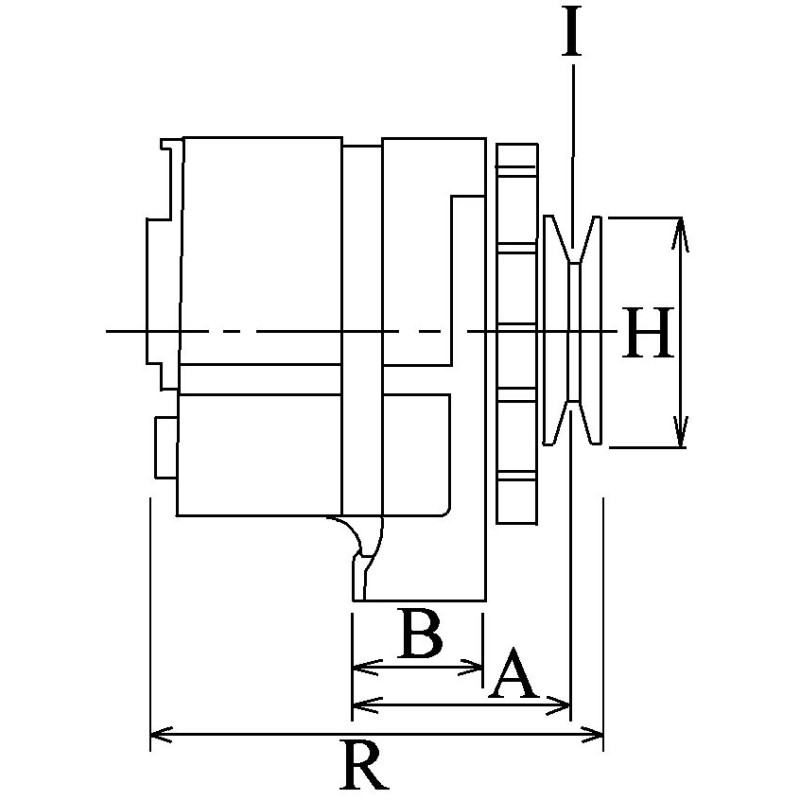

Physical Information | ||
|---|---|---|

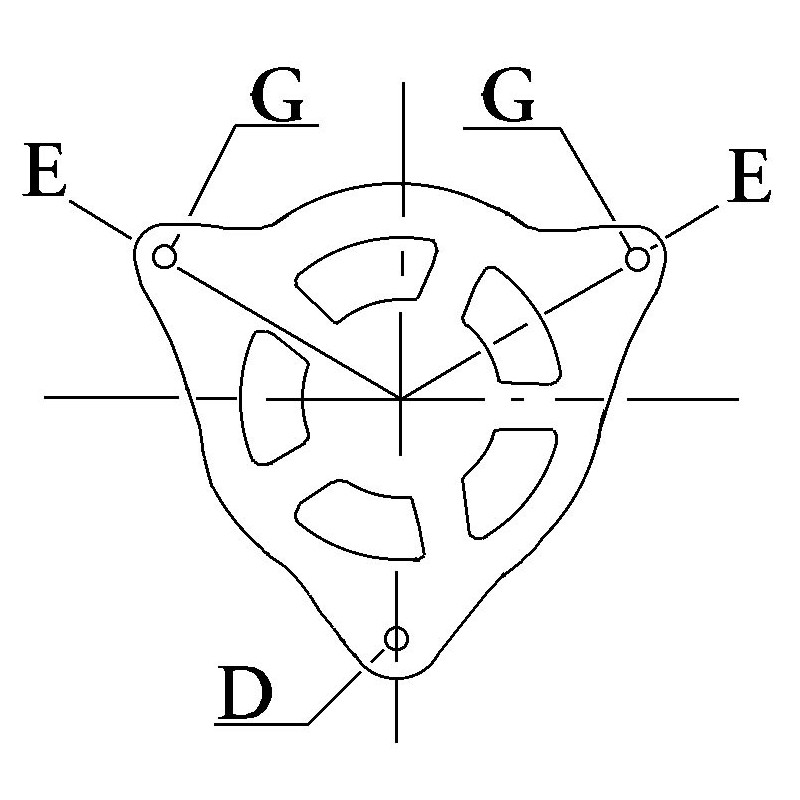

| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.20 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 50 |

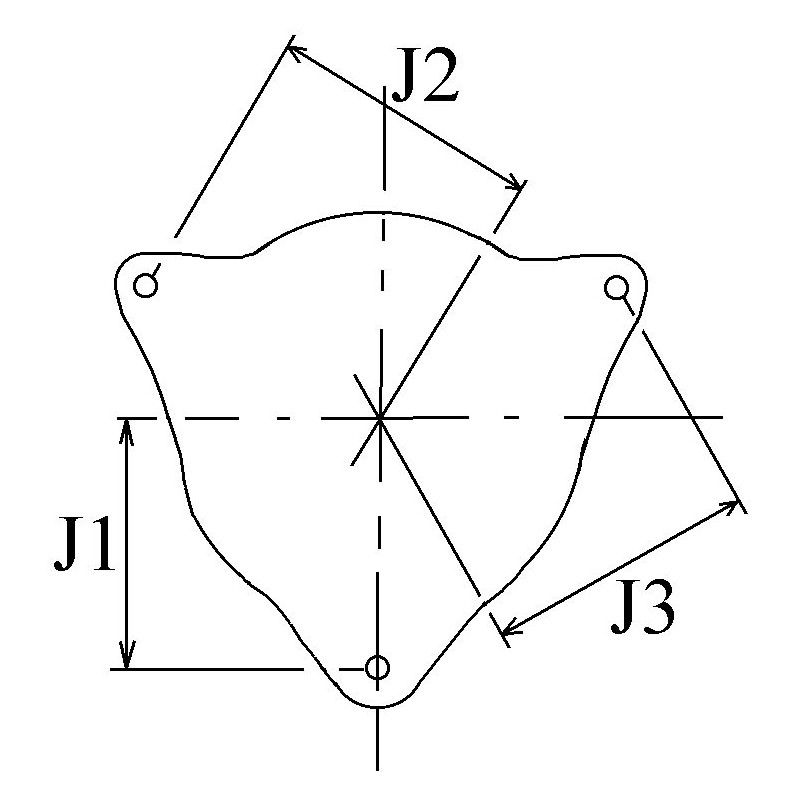

| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | Plug |
Replacing :
| 0123510060 |
| 0123510060CO |
| 0123520015 |
| 0123520030 |
| 0124615053 |
| 0124615053ASS |
| 0124615053OR+ |
| 0986043130 |
| 11203119 |
| 11203119CO |
| 11204149 |
| 1180758 |
| 1340893 |
| 284957 |
| 294396100 |
| 3789983IM91 |
| 51261017221 |
| 565502150 |
| 565502150014 |
| 565502150090 |
| 565502150210 |
| 565502150210001 |
| 565502150211 |
| 565502150215 |
| 565502150310 |
| 565502150310001 |
| 565502150311 |
| 565502150990 |
| 9203350 |
| AAN5136 |
| ALT7998s |
| G515900010100 |
| IA1057 |
| IA1057+ |
| KTR1131004300 |
| LRA02138 |
| LRA02841 |
| MG3 |
Mounted on :
| Véhicule | Tipo | Engine | Ltr | Date | |
|---|---|---|---|---|---|
| ARONA | AD | 185M | 1-cyl; 11HP | 0,5 | 01.78-12.88 |
| CLAAS | COMBINES | JAGUAR 850 | - | ||
| DEUTZ AG (KHD) | BF6M1012 | 6-cyl; | 4,8 | - | |
| DEUTZ AG (KHD) | BF6M1012C | 6-cyl. | 4,8 | - | |
| FENDT | FARMER | 308LSA | MWM TD226-B4; 82HP | 4,2 | 08.89- |
| FENDT | FARMER | 308LSE | MWM-TD226-4; 82HP | 4,2 | 02.80-12.90 |
| FENDT | FARMER | 309CA | DEUTZ BF4M 1012E; 95HP | 3,2 | 01.97-12.00 |
| FENDT | FARMER | 309LSA | DEUTZ BF4M 1012E; 95HP | 3,2 | 08.89- |
| FENDT | FARMER | 310LSA | MWM-TD226-4; 93HP | 4,2 | 08.89-12.96 |
| FENDT | FARMER | 311LSA | MWM D226 B-6; 110HP | 6,2 | 01.91- |
| FENDT | FARMER | 311LSE | MWM D226 B-6; 110HP | 6,2 | 01.91- |
| FENDT | FARMER | 312LSA | MWM-D226 B-6; 116HP | 6,2 | 01.91- |
| FENDT | FARMER | 409 | - | ||
| FENDT | FARMER | 409A | - | ||
| FENDT | FARMER | 410 | - | ||
| FENDT | FARMER | 410NA | - | ||
| FENDT | FARMER | 411 | - | ||
| FENDT | FARMER | 411NA | - | ||
| FENDT | FARMER | 412 | - | ||
| FENDT | FAVORIT | 510C, 510CA | MWM TD226 B-4; 105HP | 4,2 | 01.93-12.99 |
| FENDT | FAVORIT | 711 | DEUTZ 6-cyl: 115HP | 5,7 | 01.98-12.03 |
| FENDT | FAVORIT | 711 Vario | DEUTZ 6-cyl: 115HP | 5,7 | 01.98-12.03 |
| FENDT | FAVORIT | 712 | DEUTZ 6-cyl: 140HP | 5,7 | 01.99-12.03 |
| FENDT | FAVORIT | 712NA | DEUTZ 6-cyl: 140HP | 5,7 | 01.99-12.03 |
| FENDT | FAVORIT | 714 | DEUTZ 6-cyl: 140HP | 5,7 | 01.99-12.03 |
| FENDT | FAVORIT | 714NA | DEUTZ 6-cyl: 140HP | 5,7 | 01.99-12.03 |
| FENDT | FAVORIT | 716 | DEUTZ 6-cyl: 160HP | 5,7 | 01.99-12.03 |
| FENDT | FAVORIT | 716 Vario | DEUTZ 6-cyl: 160HP | 5,7 | 01.93-12.03 |
| FENDT | FAVORIT | 816 | D0826L1; 170HP | 6,9 | 01.93-12.03 |
| FENDT | FAVORIT | 916 | D0826L2; 260HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 916 Vario | D0826L2; 260HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 918NA | D0826L2 | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 920 Vario | D0826L2; 220HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 920NA | D0826L2; 220HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 924 Vario | D0826L2; 240HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 924NA | D0826L2; 240HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 926 | D0826L3; 260HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 926NA | D0826L3; 260HP | 6,9 | 01.99-12.03 |
| FENDT | FAVORIT | 926PL | D0826L3; 260HP | 6,9 | 01.99-12.03 |
| FENDT | VARIO | 300 | TCD2012 L4 2V | 4,0 | - |
| FENDT | VARIO | 400 | TCD2013 L6 4V | - | |
| JOHN DEERE | FARM | 6100, 6100L | 4-239 | 3,9 | 01.92-01.96 |
| JOHN DEERE | FARM | 6110, 6110L | 4045T | 4,5 | 01.98-01.01 |
| JOHN DEERE | FARM | 6210, 6210L | 4045T | 4,5 | 10.98-01.01 |
| JOHN DEERE | FARM | 6215 | 4045TL272 (USA) | 4,5 | 01.02-01.05 |
| JOHN DEERE | FARM | 6310, 6310L, 3610S | 4045T | 4,5 | 01.98-01.01 |
| JOHN DEERE | FARM | 6320, SE | 4045HL072/HLA70/HL270 (EU) | 4,5 | 01.02-01.05 |
| JOHN DEERE | FARM | 6410, L, S, SE | 4045T | 4,5 | 01.98-01.01 |
| JOHN DEERE | FARM | 6620 | 6068TL072/HLA070/HL272 (EU) | 6,8 | 01.02-01.05 |
