W114192

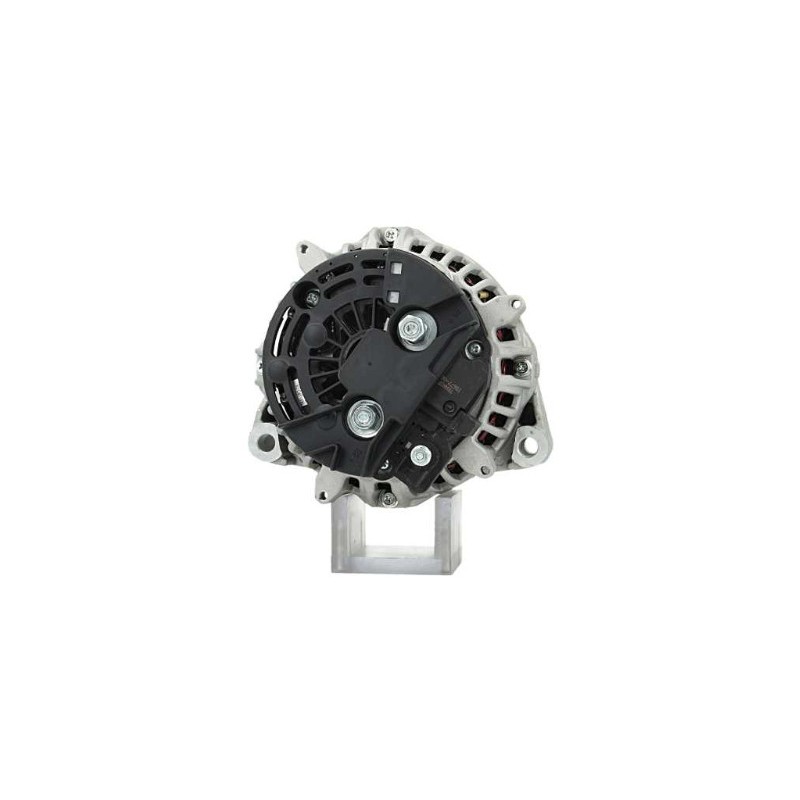

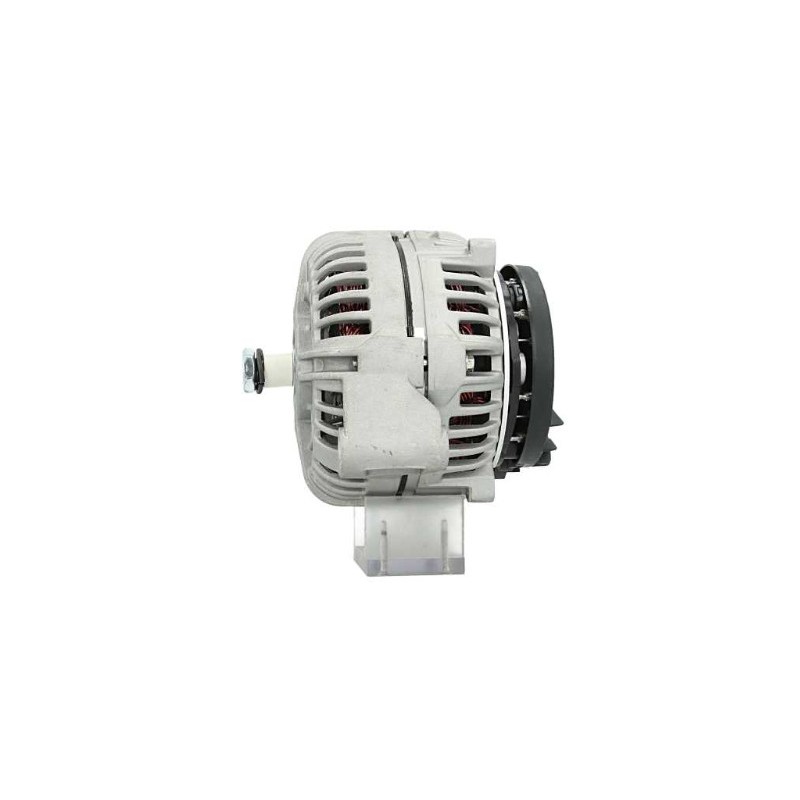

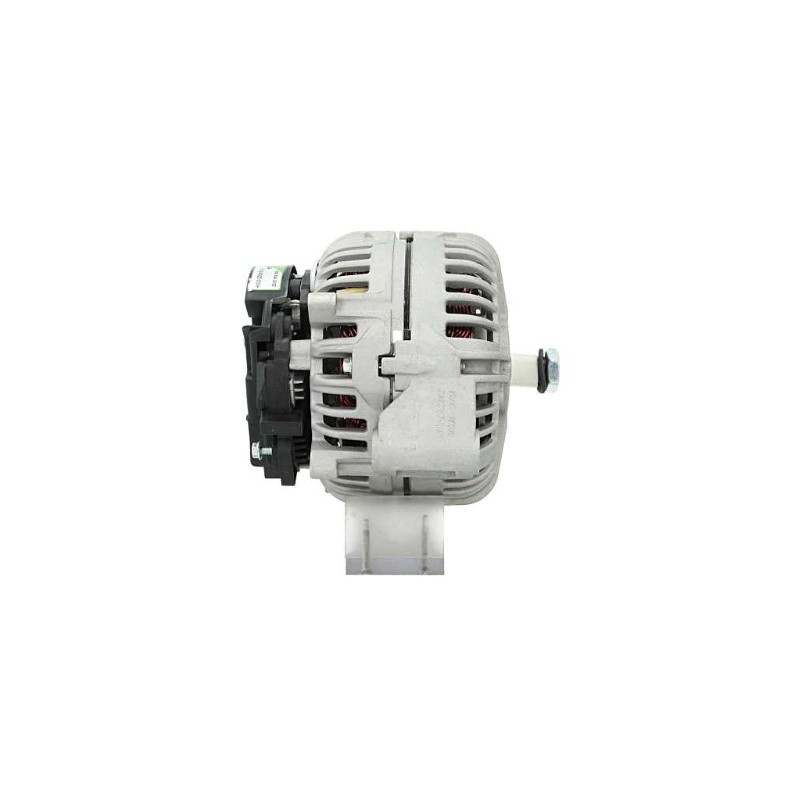

Alternator NEW replacing ISKRA 11203389 / 11204187/ AAN5346 / AAN5511

Sold WITHOUT pulley

Version origine MAHLE disponible W635504200

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

Read more
€199.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Electrical Information
Voltage 14
Amp 200
Plug type W

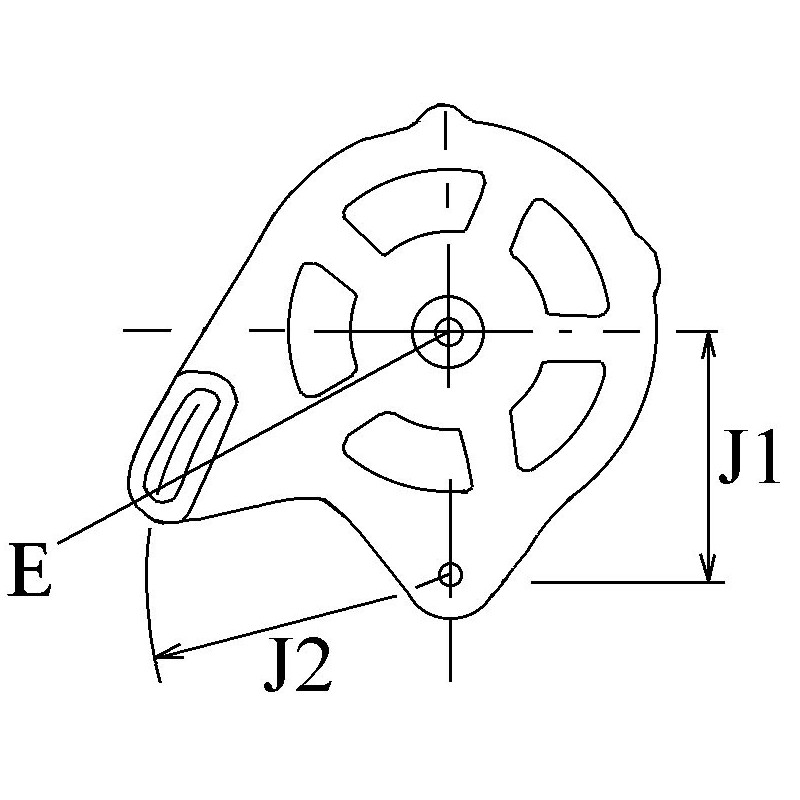

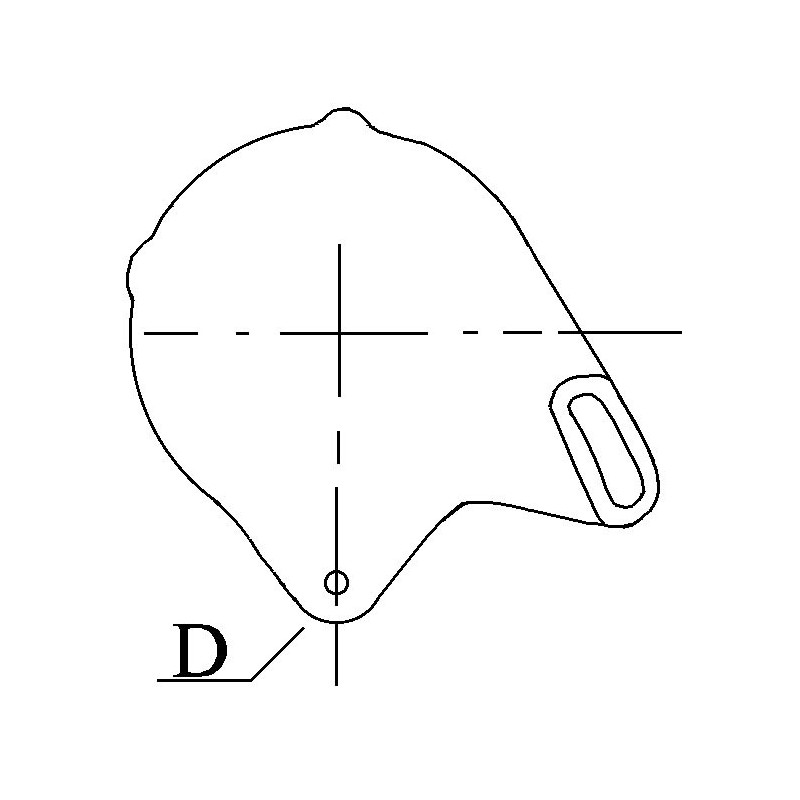

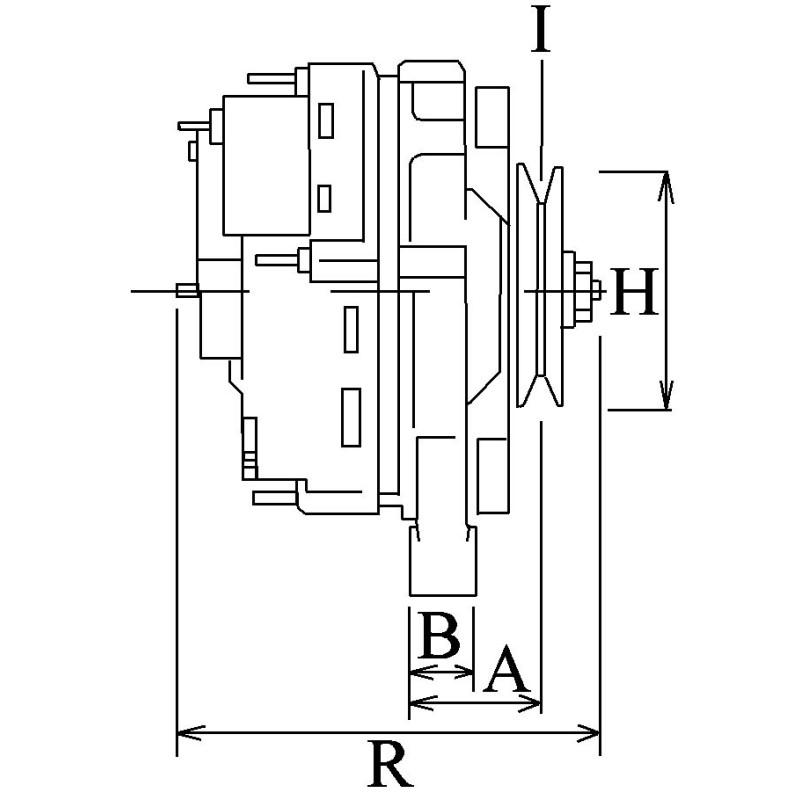

Physical Information
D Bracket hole 10.00
G Belt. adj. bracket hole 10.00
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 5
j Radius 90.00
j Radius 2 90.00
k Position B + M8
n Rotation Cr
o Plug no. 1 PL_NA
Q Tipo prise W Plug
R Total length mm 192.00
Replacing
01182544 KHD
01183187 KHD
11.203.389 ISKRA
11.204.187 ISKRA
1182544 KHD
AAN5346 ISKRA
AAN5511 ISKRA

Generic brand

Mounted on :

SPRAYER PANTERA 4502 TCD 6,1 L6; 160kW 6,1 -
BRAEUTIGAM HYDROTRAC TYP 160-40 TCD6,1 L6; 180kW; Tier 3b 6,1 -
BRAEUTIGAM HYDROTRAC TYP 165-40 TCD6,1 L6; 180kW; Tier 3b 6,1 -
BRAEUTIGAM HYDROTRAC TYP 200-40 TCD2013; 200kW; Tier III -
BRAEUTIGAM HYDROTRAC TYP 200-40 TCD7,8 L6; 250kW; Tier 3b 7,8 -
DEUTZ AG (KHD) BF12L0513C -
DEUTZ AG (KHD) TCD 4,1 L4 DEUTZ AG; TCD 4,1 L4 4,1 -
DEUTZ AG (KHD) TCD 6,1 L6 DEUTZ AG; TCD 6,1 L6 6,1 -
DEUTZ AG (KHD) TCD2012 L06 4V -
DEUTZ AG (KHD) TCD2013 L06 4V -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON 610 TTV -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON 620 TTV -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON L710 TCD2013 L06 2V; 189kW; Tier 3 7,1 01.11-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON L730 TCD2013 L06 2V; 213kW; Tier 3 7,1 01.11-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON M640 DEUTZ 2012 L06 4V 6,0 01.07-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON M650 DEUTZ 2012 L06 4V; 141kW 6,0 01.07-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON X710 DEUTZ 2013 L06 4V 7,1 01.06-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) AGROTRON X720 DEUTZ 2013 L06 4V 7,1 01.06-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6040 TCD6,1 L6; 184kW; Tier 4i 6,1 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6040 HTS TCD6,1 L6; 184kW; Tier 4i 6,1 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6060 TCD6,1 L6; 184kW; Tier 4i 6,1 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6060 HTS TCD6,1 L6; 211kW; Tier 4i 6,1 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6065 HTS TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6090 TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6090 HTS TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 60 SERIE 6095 HTS TCD7,8 L6; 267kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 9000 SERIE C 9205 TS TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 9000 SERIE C 9205 TSB TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 9000 SERIE C 9206 TS TCD7,8 L6; 267kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 9000 SERIE C 9206 TSB TCD7,8 L6; 226kW; Tier 4i 7,8 -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) COMBINES 9000 SERIE DH 9000 A -
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 5 5110 TTV TCD3,6 L4; 81kW; Tier 4i 3,6 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 5 5120 TTV TCD3,6 L4; 87kW; Tier 4i 3,6 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 5 5130 TTV TCD3,6 L4; 93kW; Tier 4i 3,6 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6120.4 TCD4,1 L4; 87kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6120.4 TTV TCD4,1 L4; 87kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6130.4 TCD4,1 L4; 94kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6140.4 TCD4,1 L4; 99kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6140.4 TTV TCD4,1 L4; 99kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6150 TCD6,1 L6; 110kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6150.4 TCD4,1 L4; 110kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6150.4 TTV TCD4,1 L4; 110kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6160 TCD6,1 L6; 122kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6160 TTV TCD6,1 L6; 116kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6160.4 TCD4,1 L4; 122kW; Tier 4i 4,1 01.12-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6160.4 TTV TCD 4,1 L4; 116kW, Tier 4i 4,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6180 TCD6,1 L6; 129kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6180 TTV TCD6,1 L6; 123kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6190 TCD6,1 L6; 142kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6190 TTV TCD6,1 L6; 138kW; Tier 4i 6,1 01.13-
DEUTZ-FAHR (SAME DEUTZ-FAHR GR.) SERIE 6 AGROTRON 6205 Tier4 Final; 152KW 207HP 6,1
