Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856

Alternator replacing MITSUBISHI A002TC1391ZC / A002TC1391ZE

Display all pictures

Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856

Reference: W114465

Condition: New product

2 Item Items

Alternator NEW replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856

Version ISKRA disponible sous la Reference wmahmg230

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

More info

More info

Information:

Electrical Information
Voltage		14
Amp		70

Physical Information
D	Bracket hole	11.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	51.00
E	Belt. adj. brackethole pos.	57
H	Pulley dia.	82.00
A	Pulley dist.	76.00
i	Grooves/pulley	1
j	Radius	86.00
j	Radius 2	85.00
k	Position B +	M8
n	Rotation	Cr

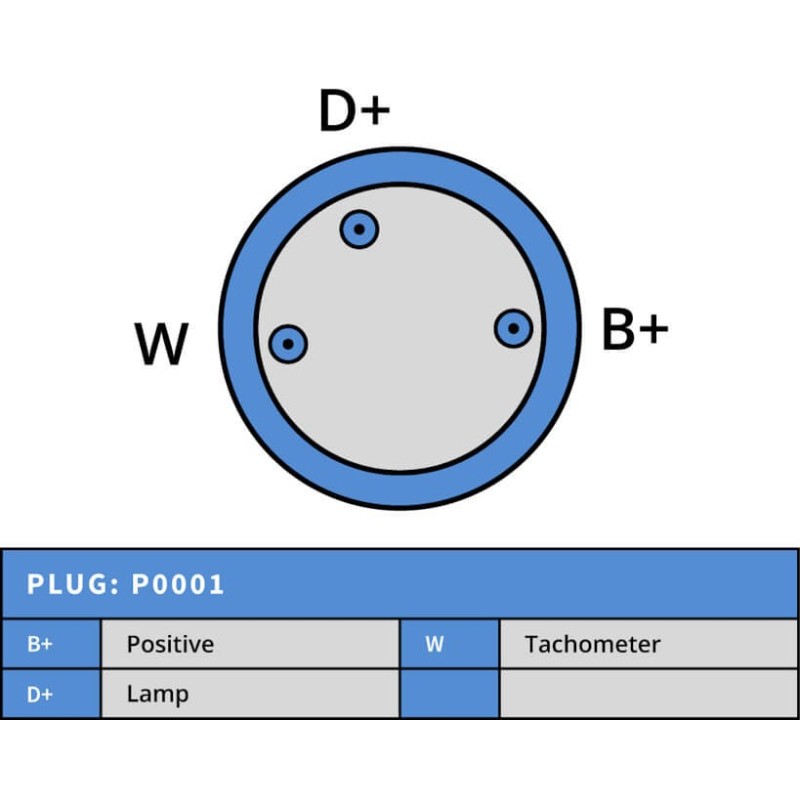

o	Plug no. 1	PL_NA
Q	Tipo prise W	Plug

Replacing:

11201856
11201945
60136
72735229
815027070
815027070090
815027070310
AAK3305
AAK3339
IA0856
LEA1136
MG230
MG230+

Mounted on :

DEUTZ AG (KHD)	F8L413		01.76-
VOLVO (BM)	2200,2204	(Tractors)	-
VOLVO (BM)	2250,2254	(Tractors)	-
VOLVO (BM)	430,500	(Tractors)	-
