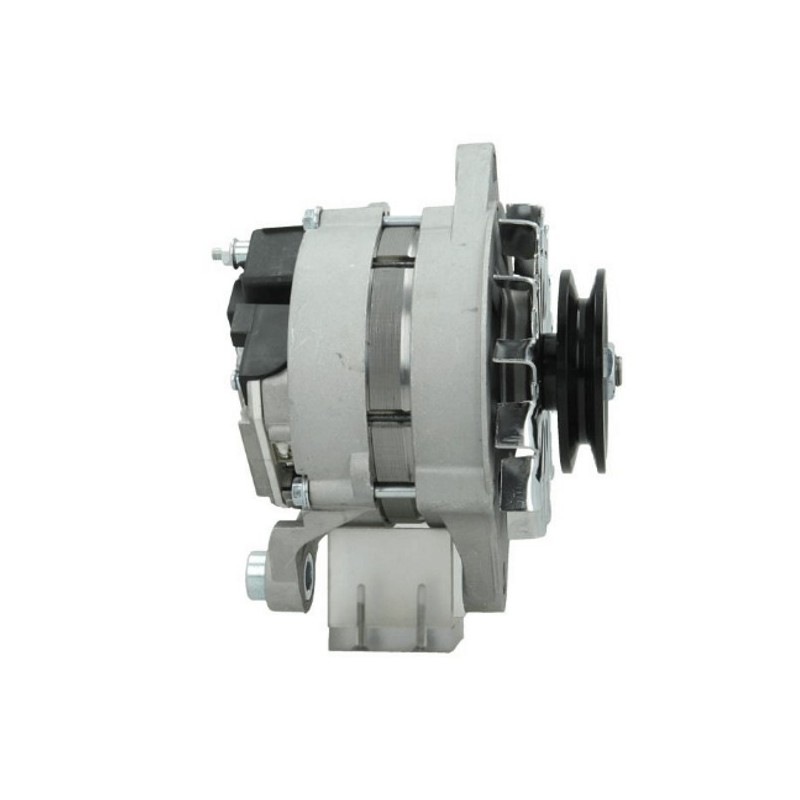

Alternator MAGNETI MARELLI 63320024 / 63321044

Information:

Voltage 14

Amp 60

D = Bracket hole M12

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 17.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 66.00

H = Pulley dia. 90.60

A = Pulley dist. 49.00

Grooves/pulley 1

J = Radius 82.50

J = Radius 79.50

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 165.50

= BOSCH 0120489336 / 0120488284 / 0986035760

= ISKRA AAK4530 / 11.201.585

= LUCAS LEA0017 / 61920275 / LRA975

= MAGNETI MARELLI 63321044 / 63321042 / 63320024

= DELCO REMY 19025068 / DRA3355

= FIAT 4799364 / 4808500 / 4808502 / 4808507

                              NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
