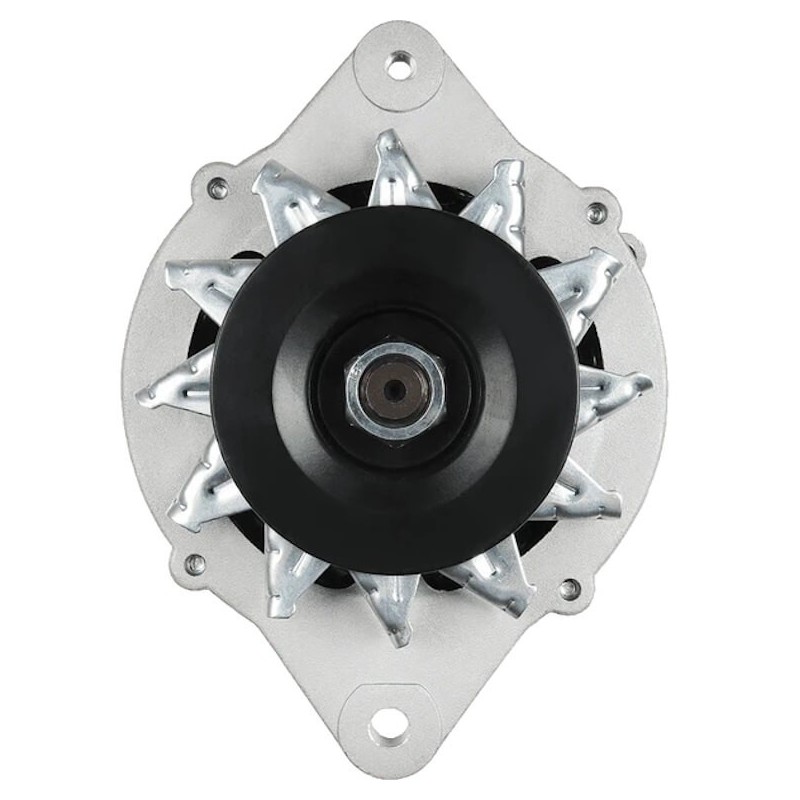

Alternator replacing HITACHI LR235-405T / LR235-405S / LR235- 405
| 0986036291 | Bosch ruil | |
| 0986080170 | Bosch ruil | |
| 111614 | Cargo | |
| 12060244 | EuroTec | |
| 166801035 | PSH | |
| 227114354 | DRI | |
| 23099C8604 | Nissan | |
| 23100C8604 | Nissan | |
| 23100C86R4 | Nissan | |
| 437796 | Valeo | |
| 480889 | Elstock | |
| 5357SP | Spidan |
More info
Information:

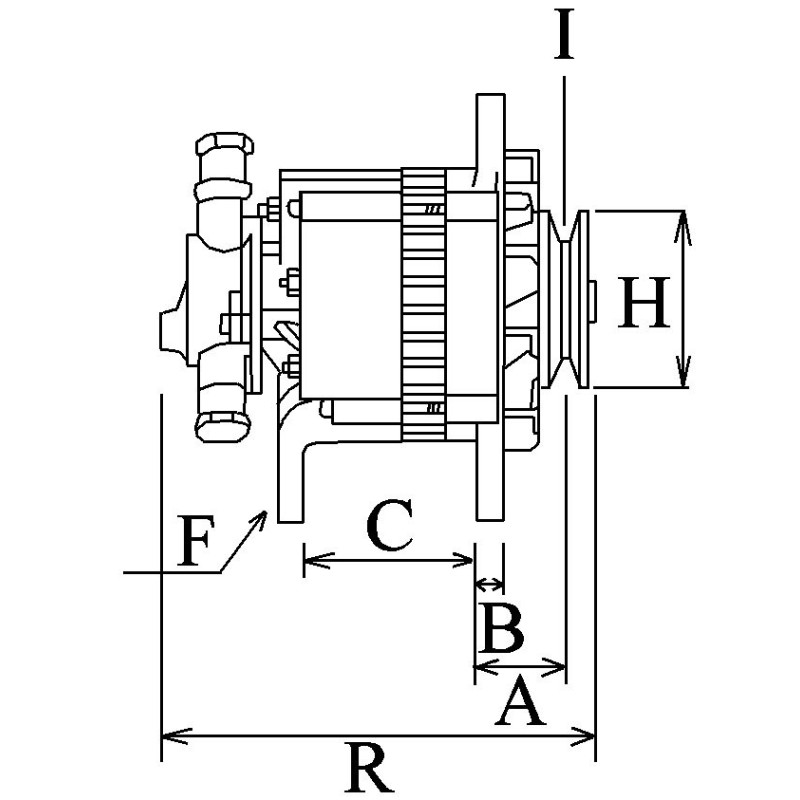

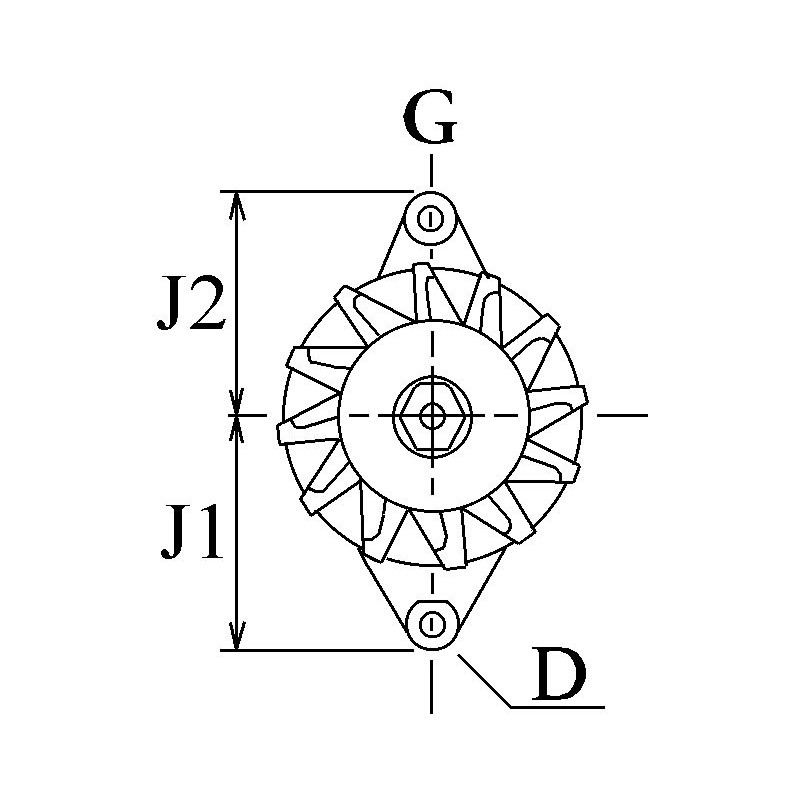

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80.50 |
| H | Pulley dia. | 83.00 |
| A | Pulley dist. | 42.00 |
| I | Grooves/pulley | 2 |
| J | Radius | 89.50 |
| J | Radius 2 | 83.00 |
| K | Position B + | M5 |
| N | Rotation | Cr |

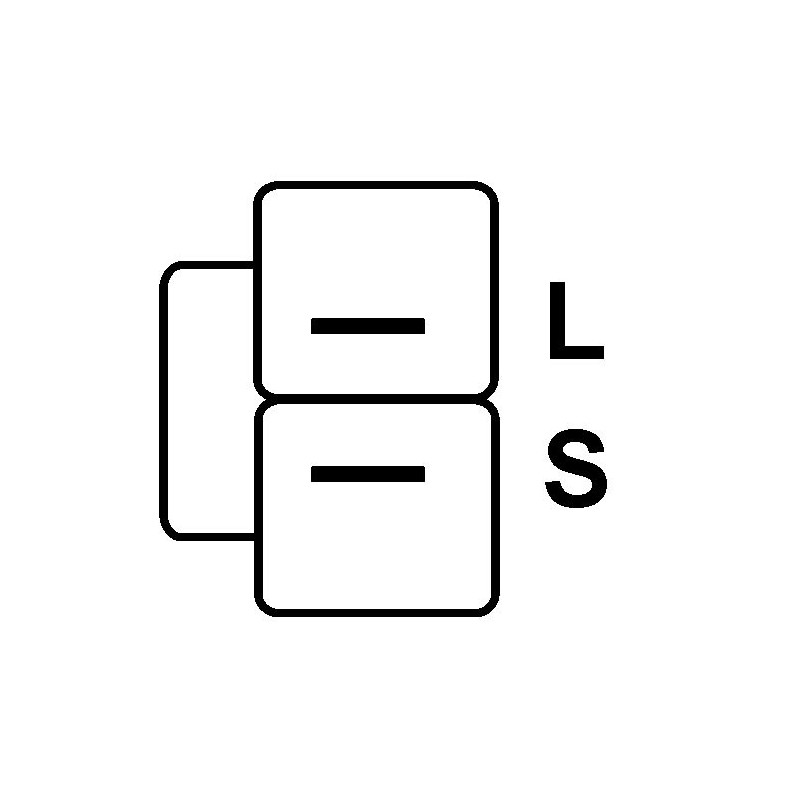

| O | Plug no. 1 | PL07 |
| R | Total length mm | 249.00 |
Replacing | |
|---|---|
| 23100-C8604 | NISSAN |
| JA672IR | HC-PARTS |
| LR235-402 | HITACHI |
| LR235-404 | HITACHI |
| LR235-404c | HITACHI |
| LR235-404s | HITACHI |
| LR235-404t | HITACHI |
| LR235-405 | HITACHI |
| LR235-405s | HITACHI |
| LR235-405t | HITACHI |
| 0986036291 | |
| 0986080170 | |
| 166801035 | |
| LR235402 | |
| LRA02431 | |
| 23099C8604 | |
| 23100C8604 | |
| KTR333602070 | |
| 23431N | |
| 437796 | |
| 5357SP | |
| 8EL726387001 | |
| 933334 | |
| ADA409 | |
| DRA3334 | |
| JA672IR | HJA672IR |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
