Alternator replacing DENSO 102211-5610 / 102211-5161 / 102211-5280

Information:

Voltage 14

Amp 70

D =Bracket hole 10.40

G =Belt. adj. bracket hole M8

B =Width/holder arm 58.00

E =Belt. adj. brackethole pos. 60

H =Pulley dia. 55.10

A =Pulley dist. 90.50

Grooves/pulley 4

J1 =Radius 79.50

J2 =Radius 83.45

Position B + M6

Rotation Cr

Plug no. 1 PL58

Fan If

Pulley Serpentine Pulley

R =Total length mm 159.50

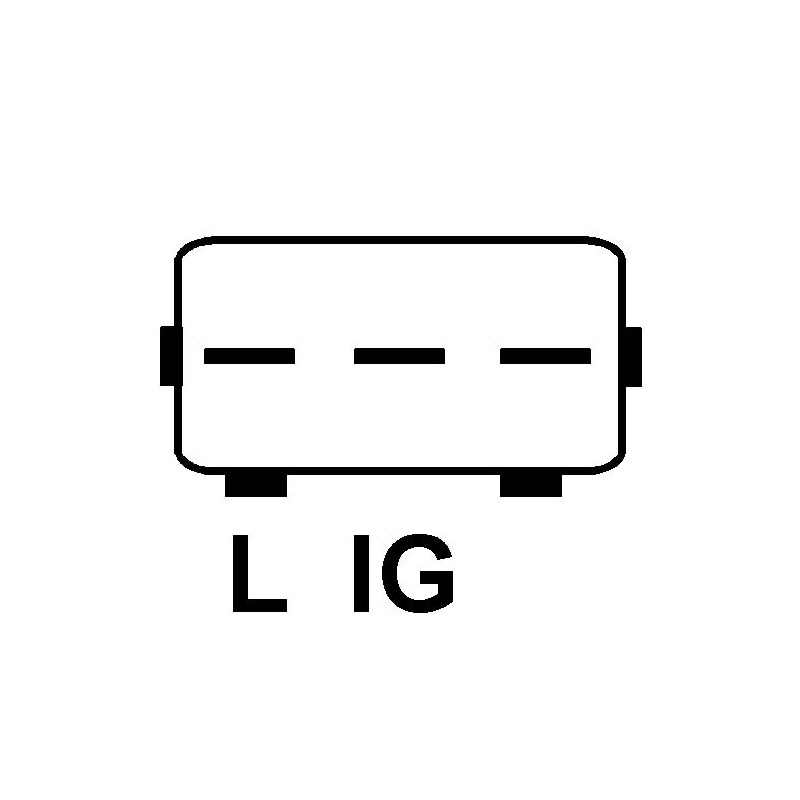

Tipo borne L-IG

= DENSO 102211-5610 / 102211-5280 / 101211-0551 / 102211-5021

102211-5161 / 102211-5160 / 102211-5151 / 101211-0720

101211-0721 / 101211-0550 / 101211-0722 / 101211-0723 / 102211-2190

102211-5070 / 102211-5020

= MITSUBISHI A5TA6891A / A5TA6891 / A5TA6191ZE / A5TA6191ZC / A5TA6191

A005TA6191 / A005TA6191ZC / A005TA6191ZE / A005TA6891 / A005TA6891A

= SUZUKI 31400-60g10 / 31400-60g11 / 31400-60g12 / 31400-60g13

31400-66D10 / 31400-66D11 / 31400-75f50 / 31400-75FD5

31400-77e20 / 31400-77E21 / 31400-77E22 / 31400-77E23

31400-79G00 / 31400-80G00 / 31400-83e00 / 31400-m79G00

                                                TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
