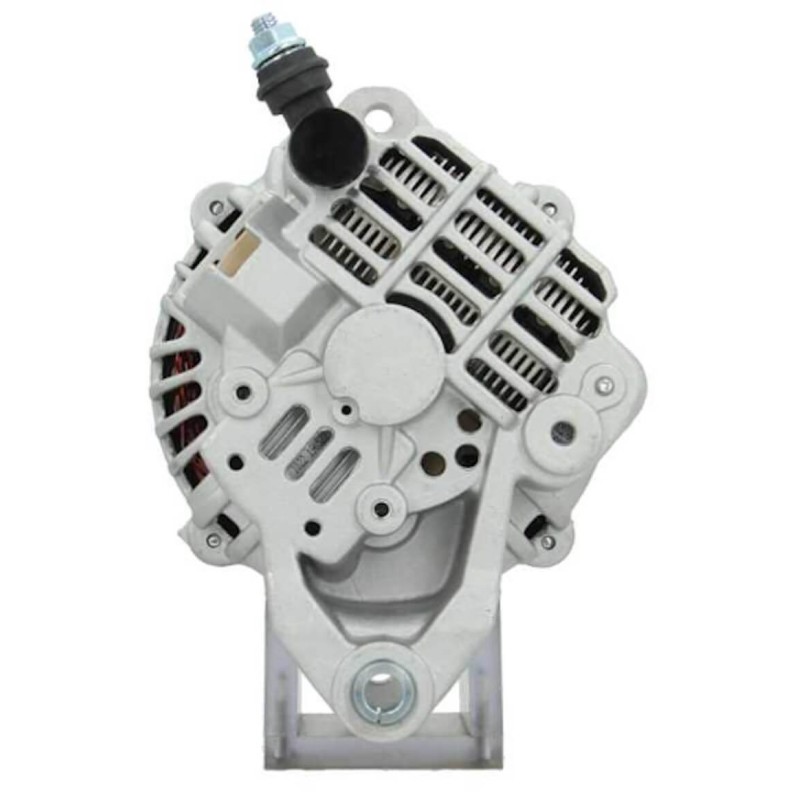

Alternator replacing HITACHI LR1100-724B / LR1100-724

Information :

Rotation Cr

Amp 100

Voltage 14

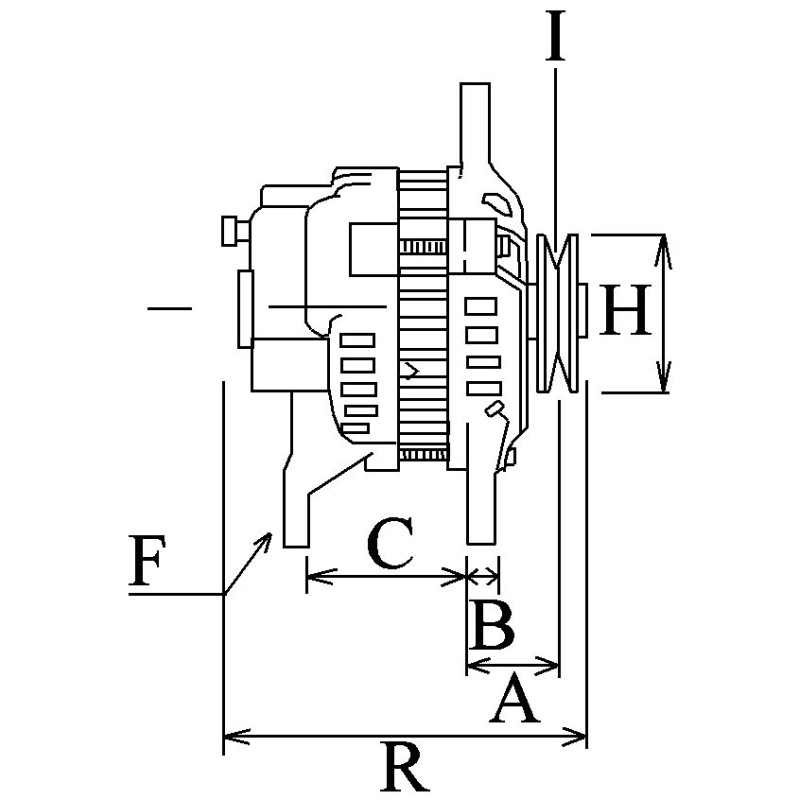

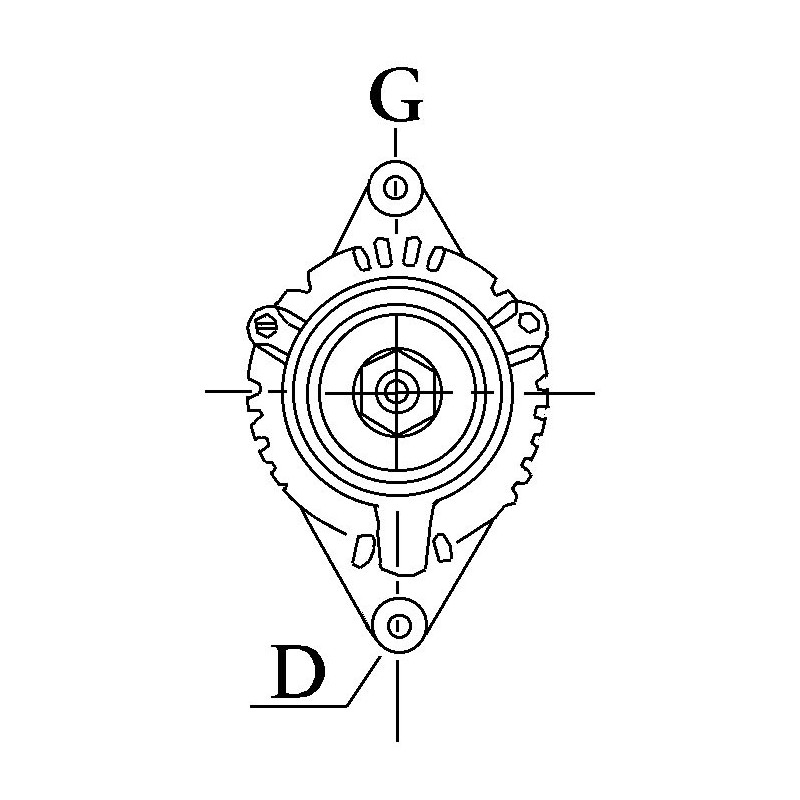

D =  Bracket hole 10.30

G =  Belt. adj. bracket hole 8.50

B =  Width/holder arm 13.20

E =  Belt. adj. brackethole pos. 60

C =  Mount. bracket dist 80.90

H = Pulley dia. 80.50

A =  Pulley dist. 41.50

Grooves/pulley 1

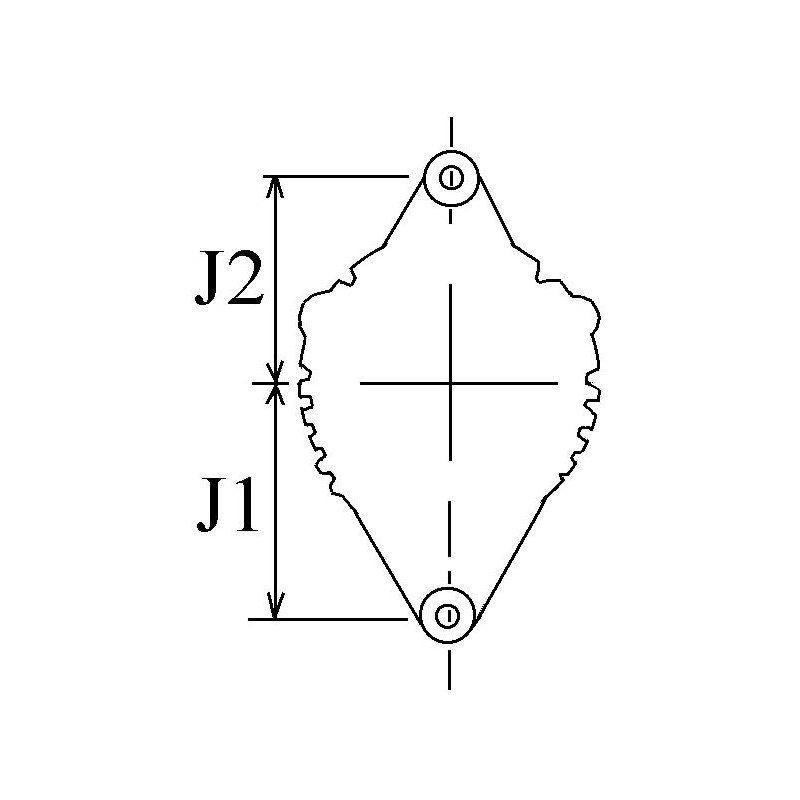

J =  Radius 90.00

J =  Radius 2 85.00

Position B + M8

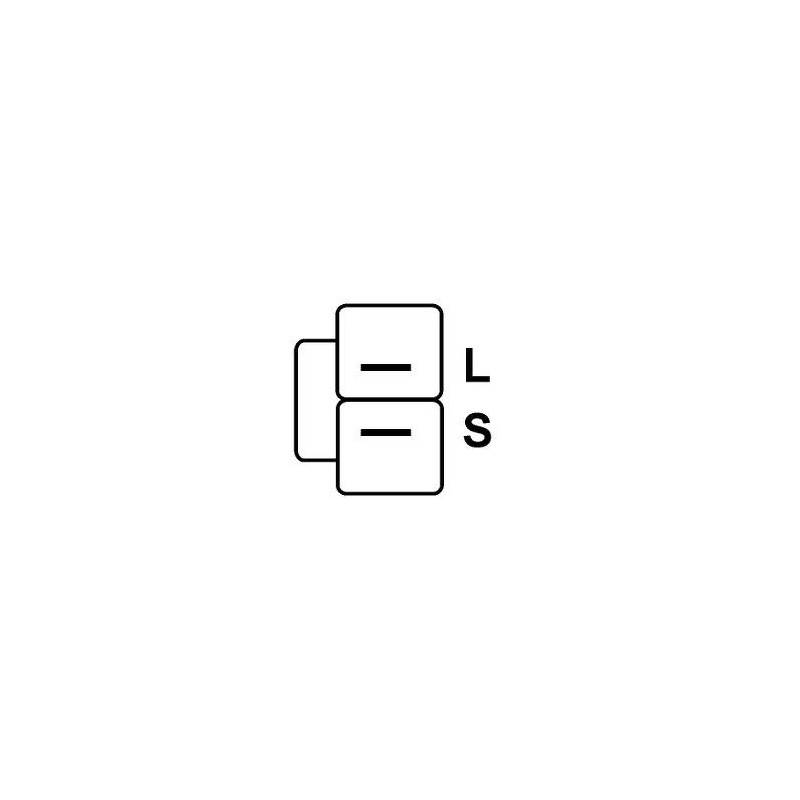

Plug no. 1 PL07

Fan If

Pulley Pulley

Tipo regulator Ir

R =  Total length mm 166.00

= NISSAN 23100-BN00A / 23100-bn300 / 23100-BN305

                              NO CORE EXCHANGE NEEDED

                                                   TWO YEARS WARRANTY
