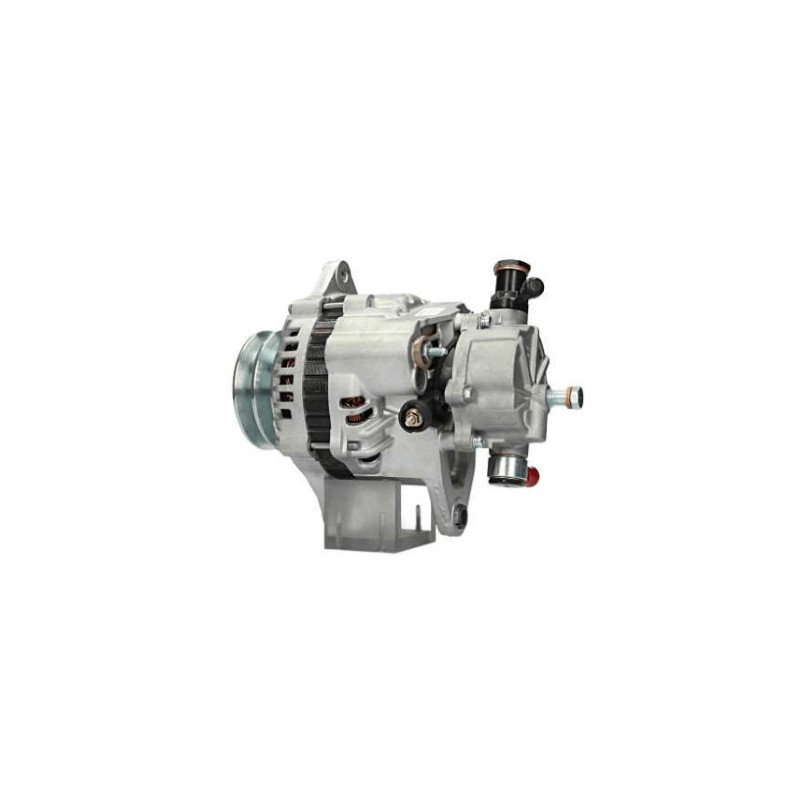

Alternator replacing 6033gb5007 / 6033gb5009 / 23100-7c000
Alternator replacing 6033gb5007 / 6033gb5009 / 23100-7c000 / 23100-7c001
0986049850 / DRA4234 / LRA01680 / N5111132
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |

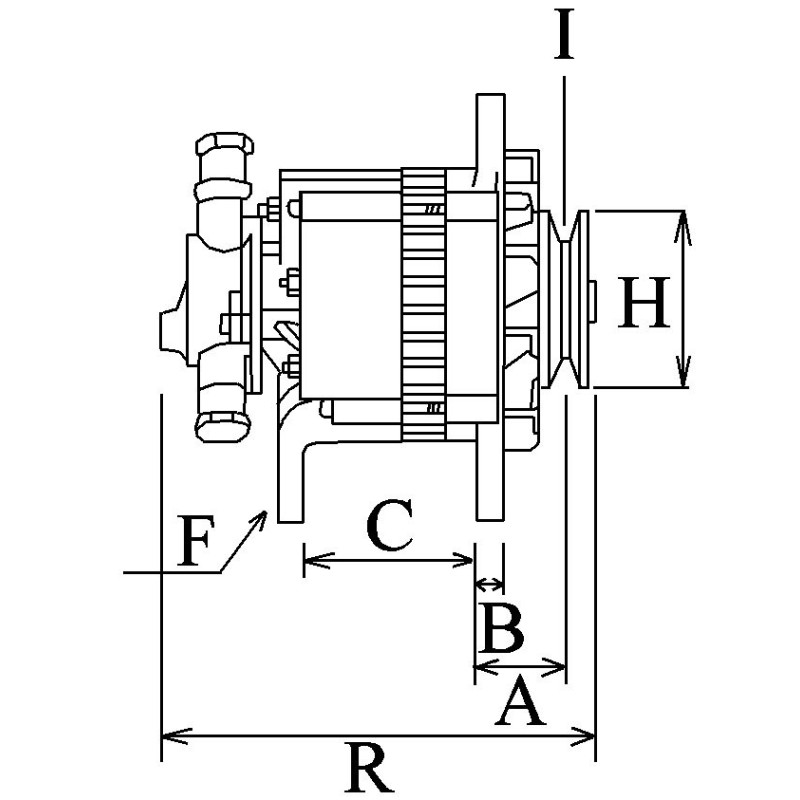

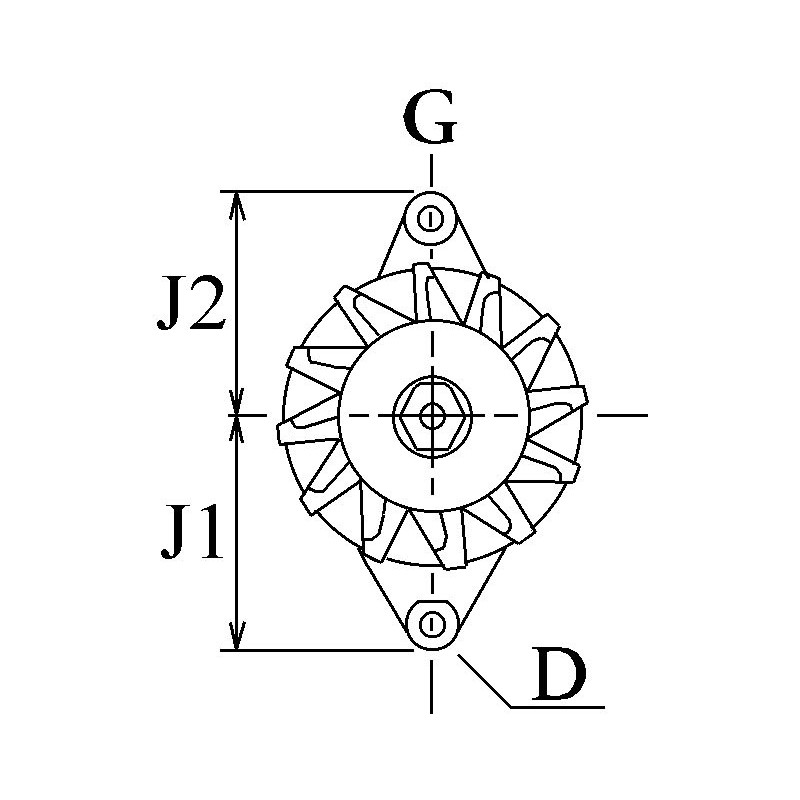

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.40 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.20 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80.70 |
| H | Pulley dia. | 97.00 |
| A | Pulley dist. | 41.50 |
| i | Grooves/pulley | 2 |
| j | Radius | 90.00 |
| j | Radius 2 | 85.00 |
| k | Position B + | M6 |
| n | Rotation | CW |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 243.00 |
Replacing les References ci fromssous | |
|---|---|
| 23100-7c000 | NISSAN |
| 23100-7c001 | NISSAN |
| 6033gb5007 | BOSCH |
| 6033gb5009 | BOSCH |
| 9120335002 | BOSCH |
| ja1525ir | HC-PARTS |
| 0986049850 |
| 113786 |
| 165828090 |
| 165828090+ |
| 231007C000 |
| 231007C001 |
| 231007C600 |
| 282905 |
| 5860SP |
| 6033GB5007 |
| 6033GB5009 |
| 9090238F |
| 9120335002 |
| 934234 |
| ALTH156 |
| DRA4234 |
| F042A0H156 |
| HJA1525IR |
| JA1525IR |
| LRA01680 |
| N5111132 |
fits:
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Serena | Serena | 2.3 | Diesel | 1995 01 | - | LD23 | Diesel | 55 | 75 | MPV | 2283 | 4 | C23M |
| Vanette | Vanette Cargo | 2.3 | Diesel | 1995 01 | - | LD23 | Diesel | 55 | 75 | Boîte/Trucksnette | 2283 | 4 | C23M |
| Vanette | Vanette Cargo | 2.3 | Diesel | 1996 01 | - | LD23 | Diesel | 55 | 75 | De bus | 2283 | 4 | C23M |
