Alternator replacing HITACHI LR170-413 / LR170-412T / LR170- 412S for NISSAN

For ce modèle le délai from livraison peut être from 4 to 5 jours

Information:

Voltage 14

Amp 70

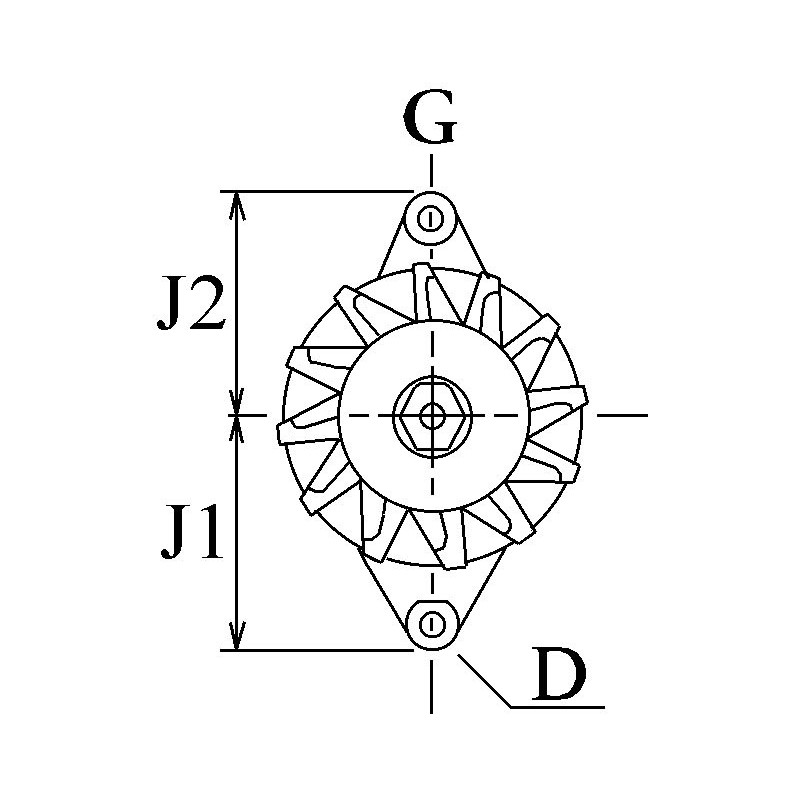

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

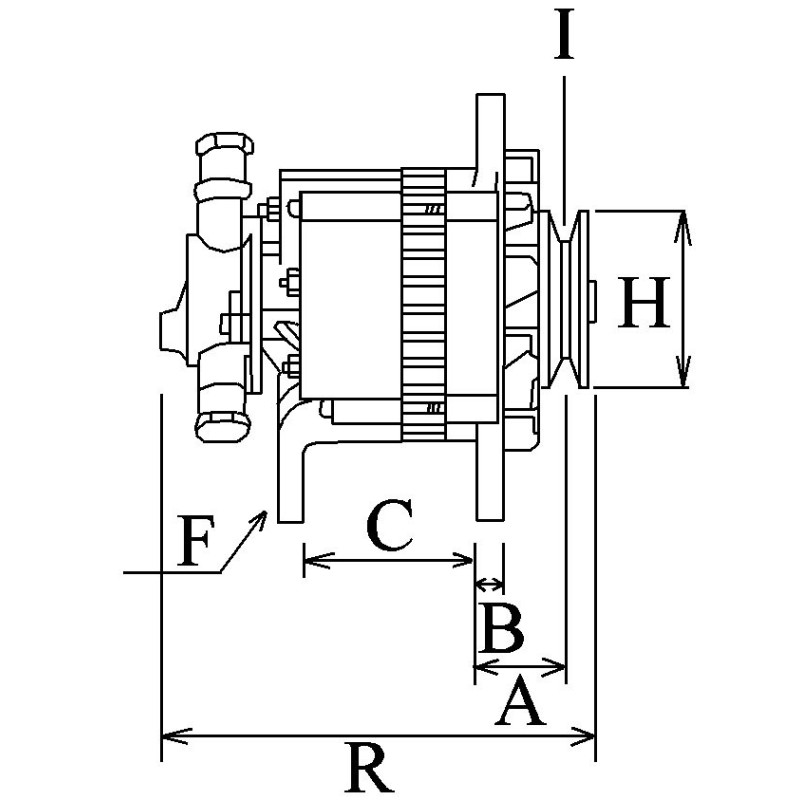

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.00

H = Pulley dia. 84.00

A = Pulley dist. 41.50

Grooves/pulley 2

J = Radius 89.50

J = Radius 85.00

Position B + M6

Rotation Cr

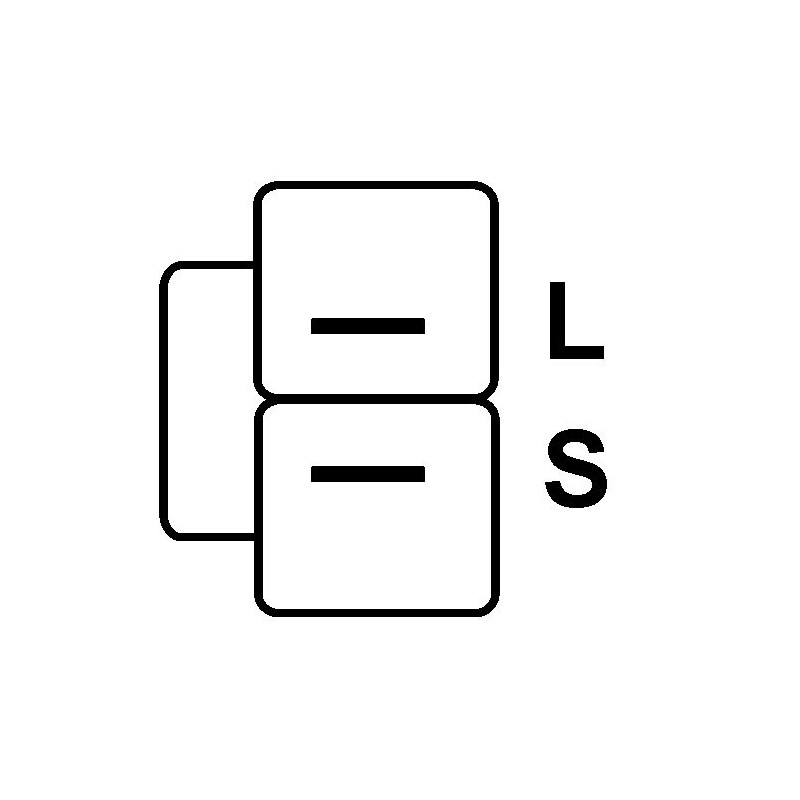

Plug no. 1 PL07

Fan Ef

Pulley Pulley double

R = Total length mm 250.00

= HITACHI LR170-413 / LR170-412T / LR170-412S / LR170-412 / LR170-408T / LR170-408S
LR170-408C / LR170-408B / LR170-408 / LR170-407T / LR170-407E / LR170-407S / LR170-407B / LR170-407

= NISSAN 23100-02n14 / 23100-02n15 / 23100-02n18 / 23100-02n19

23100-02n22 / 23100-02n23

                                       NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
