Alternator replacing DENSO 100211-2211 / 100211-2210 / 100211-1381

Information:

Voltage 14

Amp 55

D = Bracket hole 10.25

G = Belt. adj. bracket hole M8

B = Width/holder arm 57.90

E = Belt. adj. brackethole pos. 4

H = Pulley dia. 61.50

A = Pulley dist. 90.45

Grooves/pulley 3

J = Radius 77.55

J = Radius 83.60

Position B + M6

Rotation Cr

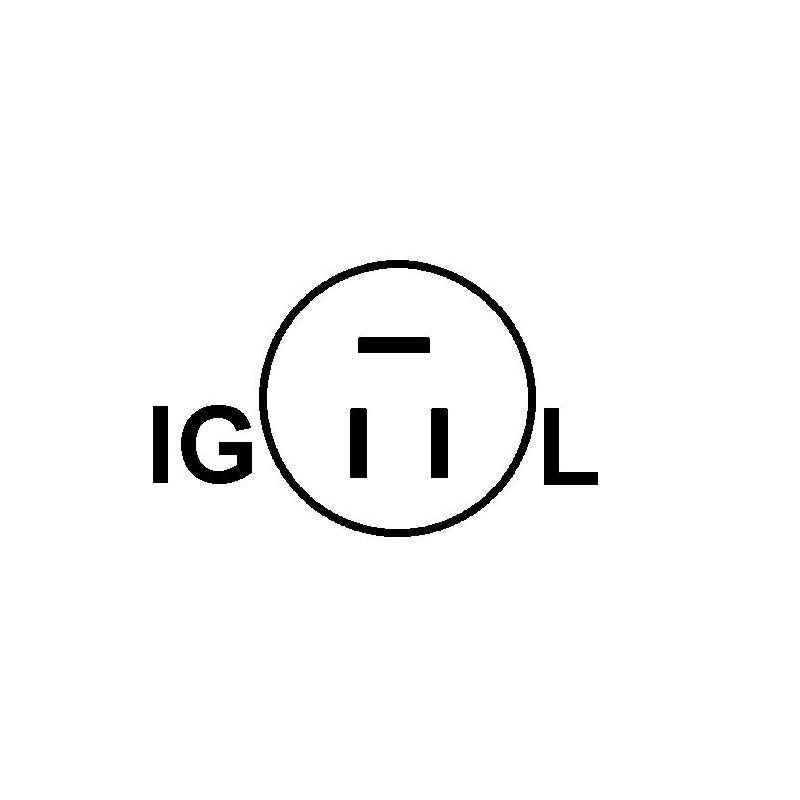

Plug no. 1 PL11

Fan If

Pulley Serpentine Pulley

Total length mm 153.00

= BOSCH 0986035111

= DELCO REMY DRA3023

= DENSO 100211-2211 / 100211-2210 / 100211-1381 / 100211-1278 100211-1271 / 100211-1270 / 100211-1261 / 100211-1277

= HONDA 31100-pe0-003 / 31100-pe0-004 / 31100-pe0-013

31100-pe0-014 / 31100-pe0-020 / 31100-pe0-023 / 31100-pe0-024

31100-pe0-034 / 31100-pe0-044 / 31100-pe0-924 / cha08

cha19 / cha33 / peo014 / peo034

= MITSUBISHI A001T01591 / A001T40191 / A001T41291

a1t01591 / a1t40191 / a1t41291

= VALEO 436515

generic brand

                           NO CORE EXCHANGE NEEDED E

                                                         TWO YEARS WARRANTY
