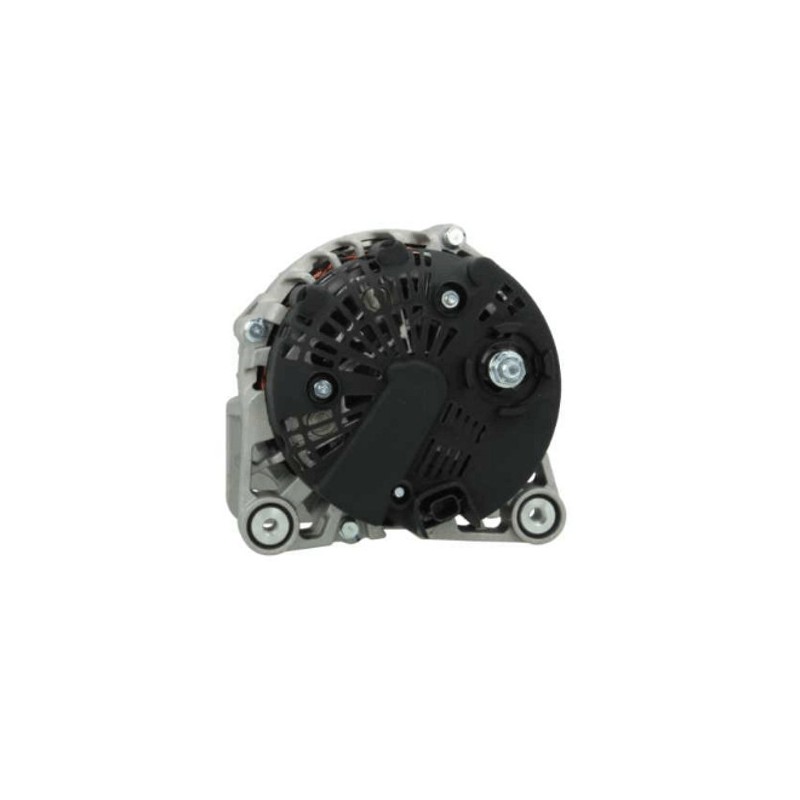

Alternator replacing VALEO TG15C059 / TG15C091 / TG15C125
Alternator NEW for RENAULT
7711497596 / 8200404461 / 8200525891 / 8200725683
DRA0784 / LRA03177 / 439577 / 440035
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 60.50 |
| H | Pulley dia. | 49.50 |
| A | Pulley dist. | 33.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

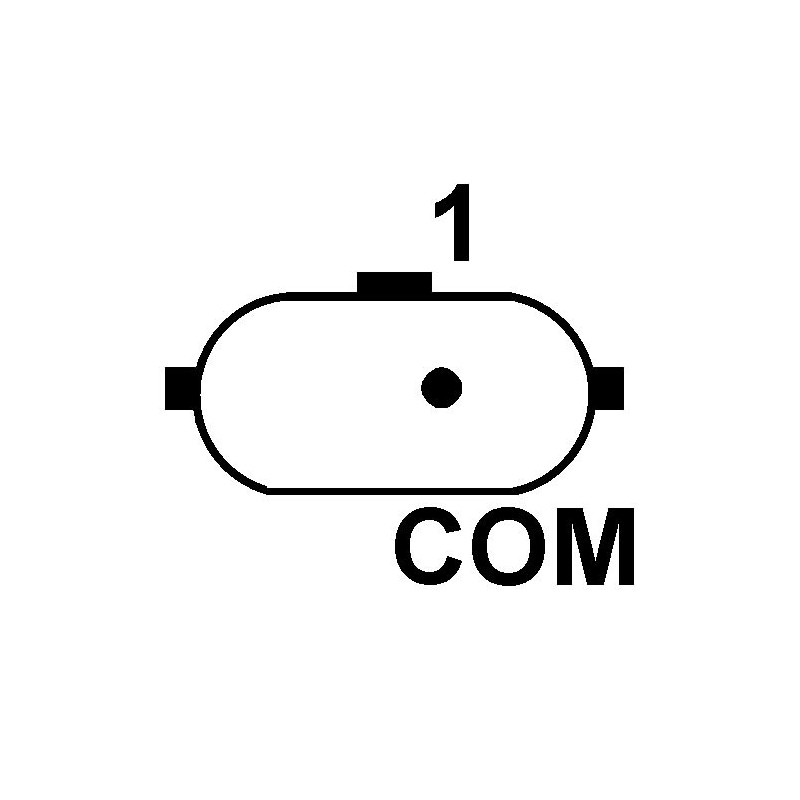

| o | Plug no. 1 | PL131 |
| D | Trou from fixation support 2 | 8.50 |
| R | Total length mm | 185.00 |
generic brand
Replacing | |
|---|---|
| 2543388 | VALEO |
| 2543597 | VALEO |
| 8200404461 | RENAULT |
| 8200525891 | RENAULT |
| 8200725683 | RENAULT |
| ca1936ir | HC-PARTS |
| TG15C059 | VALEO |
| TG15C091 | VALEO |
| TG15C125 | VALEO |
| 115857 |
| 231000024R |
| 2543388A |
| 286847 |
| 439577 |
| 440035 |
| 543597 |
| 575509150 |
| 6387SP |
| 7711497596 |
| 8200404461 |
| 8200525891 |
| 8200725683 |
| 930784 |
| A002TX0481 |
| A2TX0481 |
| CA1936IR |
| DRA0784 |
| HCA1936IR |
| LRA03177 |
| TG15C059 |
| TG15C091 |
| TG15C125 |
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Cylindres | Descrip- tion du type from | Remark | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R700 | DCi | 110 | 150 | Décapotable | 1995 | 4 | EM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R700 | DCi | 110 | 150 | Break | 1995 | 4 | KM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R722 | DCi | 110 | 150 | Décapotable | 1995 | 4 | EM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R700 | DCi | 110 | 150 | Hayon | 1995 | 4 | BM0/1_, CM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2007 01 | M9R724 | DCi | 127 | 173 | Hayon | 1995 | 4 | BM0/1_, CM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R722 | DCi | 110 | 150 | Hayon | 1995 | 4 | BM0/1_, CM0/1_ | ||
| Megane | Megane | 2.0 | Diesel | 2005 09 | M9R722 | DCi | 110 | 150 | Break | 1995 | 4 | KM0/1_ | ||
| Scénic | Grand Scénic | 2.0 | Diesel | 2005 09 | M9R700 | DCi | 110 | 150 | MPV | 1995 | 4 | JM0/1 | ||
| Scénic | Scénic | 2.0 | Diesel | 2005 09 | M9R721 | DCi | 110 | 150 | MPV | 1995 | 4 | JM0/1_ | ||
| Scénic | Scénic | 2.0 | Diesel | 2005 09 | M9R722 | DCi | 110 | 150 | MPV | 1995 | 4 | JM0/1_ |
