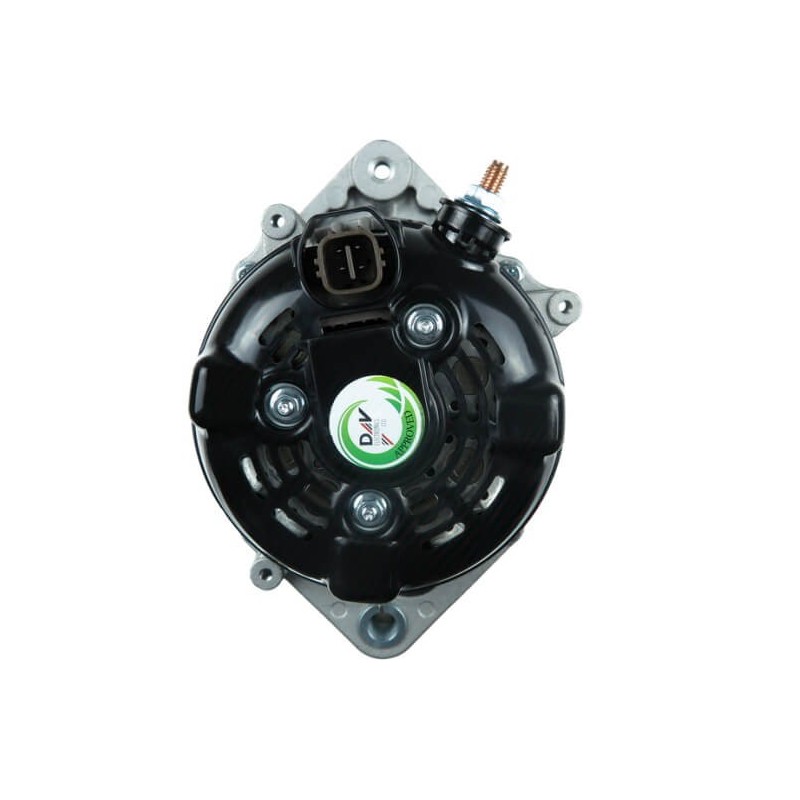

Alternator replacing 104210-3870 / 104210-3871 / 7701066399 / 8973614210
w115704
12061004 | EuroTec | |
2303451502 | DRI | |
285883 | Elstock | |
575904150 | PSH | |
7701066399 | Renault | |
8201268244 | Renault | |
8201268245 | Renault | |
8973614210 | Isuzu | |
8980337880 | Renault | |
9467 | CEVAM | |
DRA0789 | Remy | |
L82980 | ATL | |
LRA03271 | Lucas | |
TNA086 | TWA |
Features
Physical information | ||
---|---|---|
A | Pulley dist. | 96.50 |
B | Width/holder arm | 58.00 |
D | Bracket hole | 10.50 |
E | Belt. adj. brackethole pos. | 60 |
G | Belt. adj. bracket hole | M8 |
H | Pulley dia. | 49.00 |
I | Grooves/pulley | 6 |
J | Radius | 83.00 |
J | Radius 2 | 86.00 |
K | B+ | M8 |
K | Position/B+ in min. | 5 |
N | Rotation | CW |

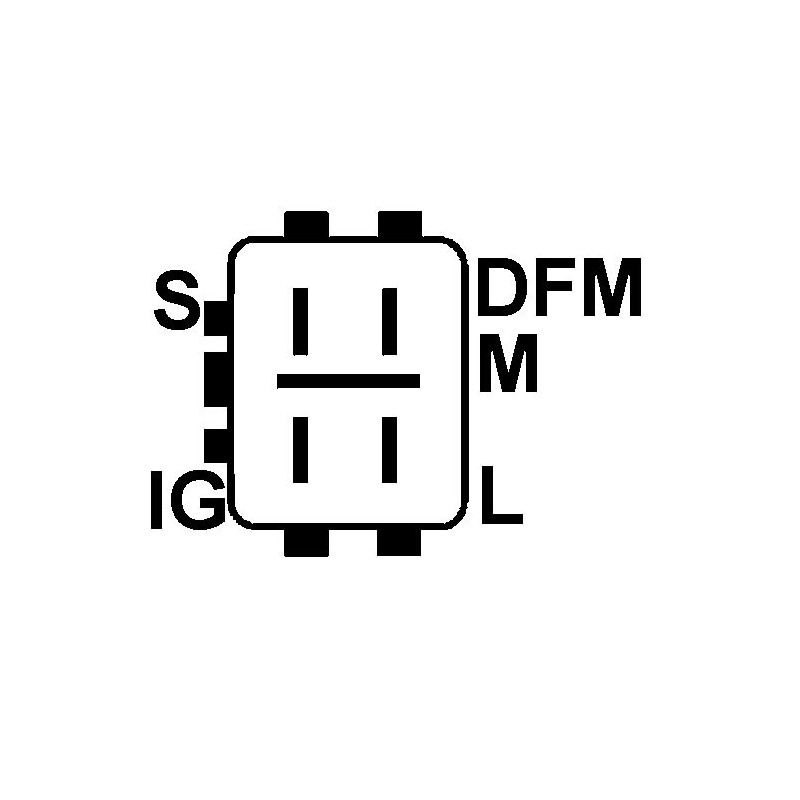

O | Plug no. | PL78 |
R | Total length mm | 170.00 |
Catalogue information | ||
---|---|---|
Pulley | SP/FW | |
Regulator type | IR | |
Prod. info | BN |
Electrical information | ||
---|---|---|
Voltage | 14 | |
Amp | 150 |
generic brand
replacing
104210387 | Denso |
1042103870 | Denso |
1042103871 | Denso |
1042103872 | Denso |
1042103873 | Denso |
115704 | Cargo |
12061004 | EuroTec |
2303451502 | DRI |
285883 | Elstock |
575904150 | PSH |
7701066399 | Renault |
8201268244 | Renault |
8201268245 | Renault |
8973614210 | Isuzu |
8980337880 | Renault |
9467 | CEVAM |
DRA0789 | Remy |
L82980 | ATL |
LRA03271 | Lucas |
TNA086 | TWA |
