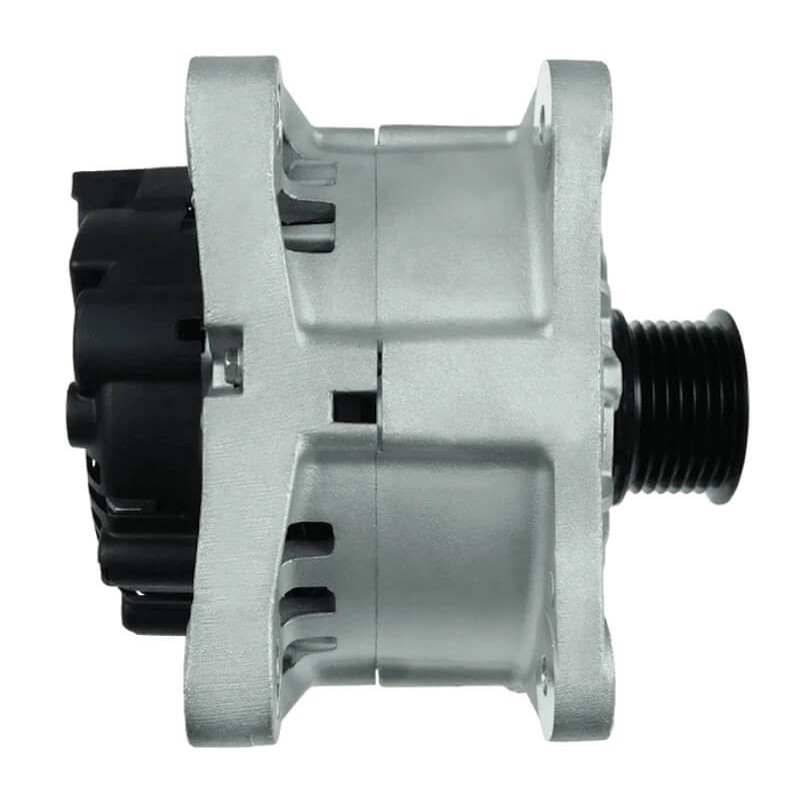

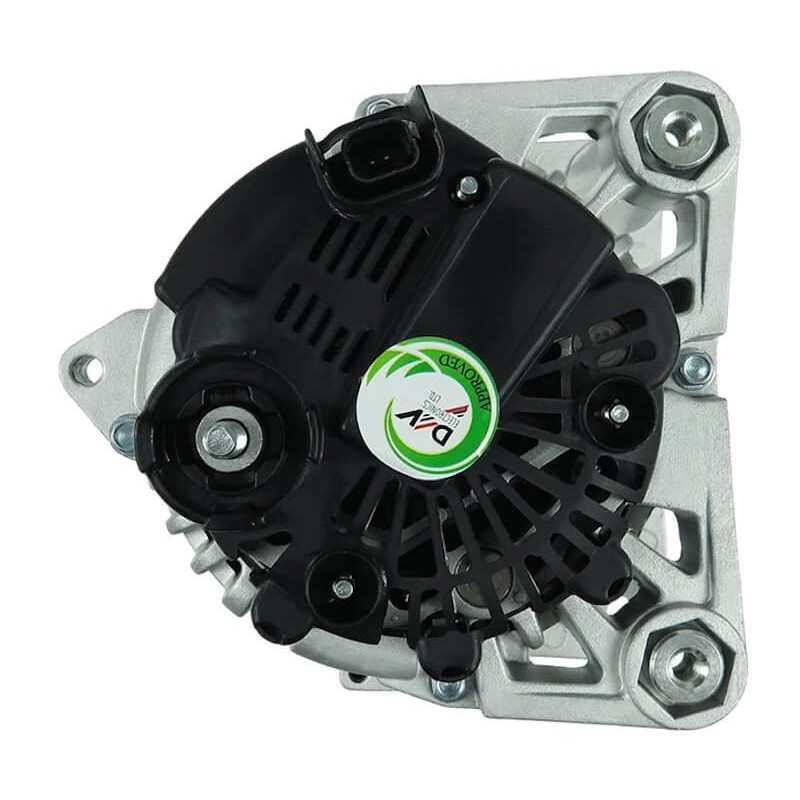

Alternator replacing VALEO TG11C061 / TG11C049 / TG11C022

Information:

Rotation Cr

Amp 110

Voltage 14

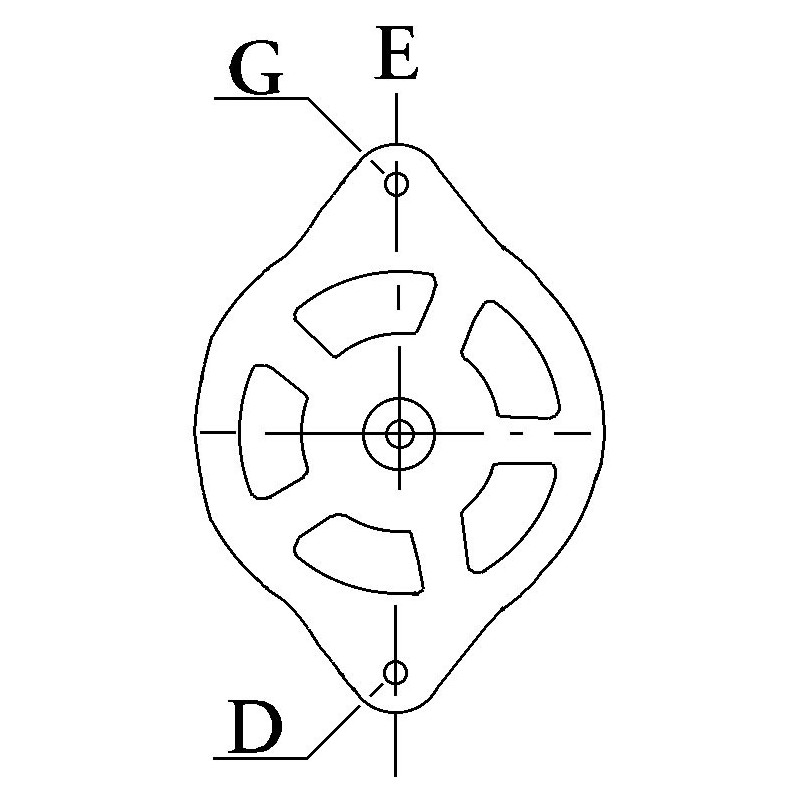

D = Bracket hole 8.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 13.80

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 60.50

H = Pulley dia. 49.00

A = Pulley dist. 32.50

Grooves/pulley 7

J = Radius 90.00

J = Radius 2 90.00

Position B + M8

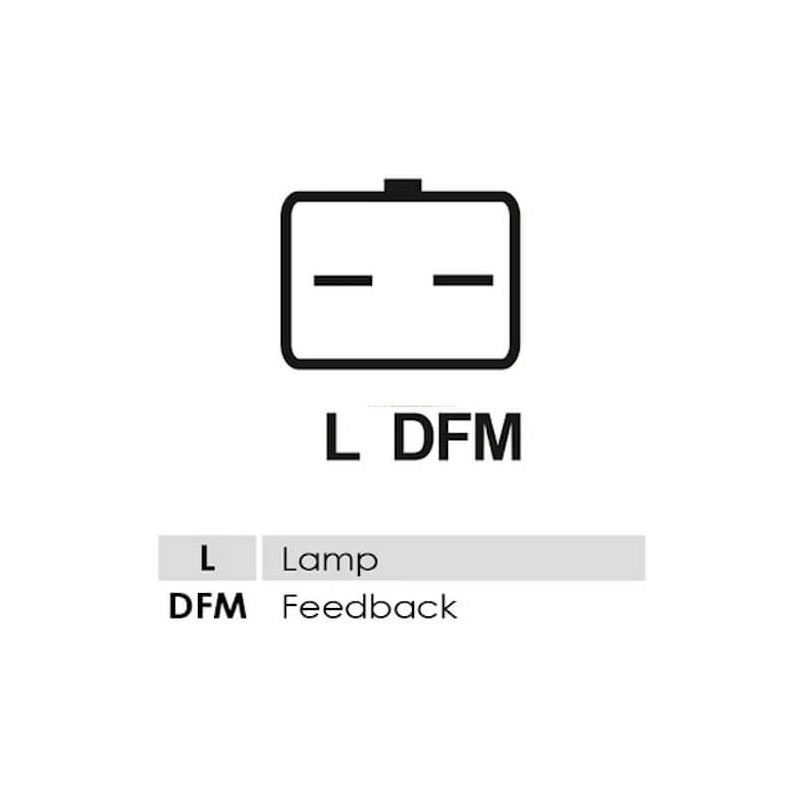

Plug no. 1 PL72

Fan If

Pulley Serpentine Pulley

R = Total length mm 184.00

fitsRENAULT :

- Megane 1,9 diesel and 2,0 essence

                   NO CORE EXCHANGE NEEDED

                                    TWO YEARS WARRANTY
