Alternator replacing MITSUBISHI A5TA6291ZEC / A5TA6291ZEB / A5TA6291H

Information:

Voltage 14

Amp 70

Plug type Df

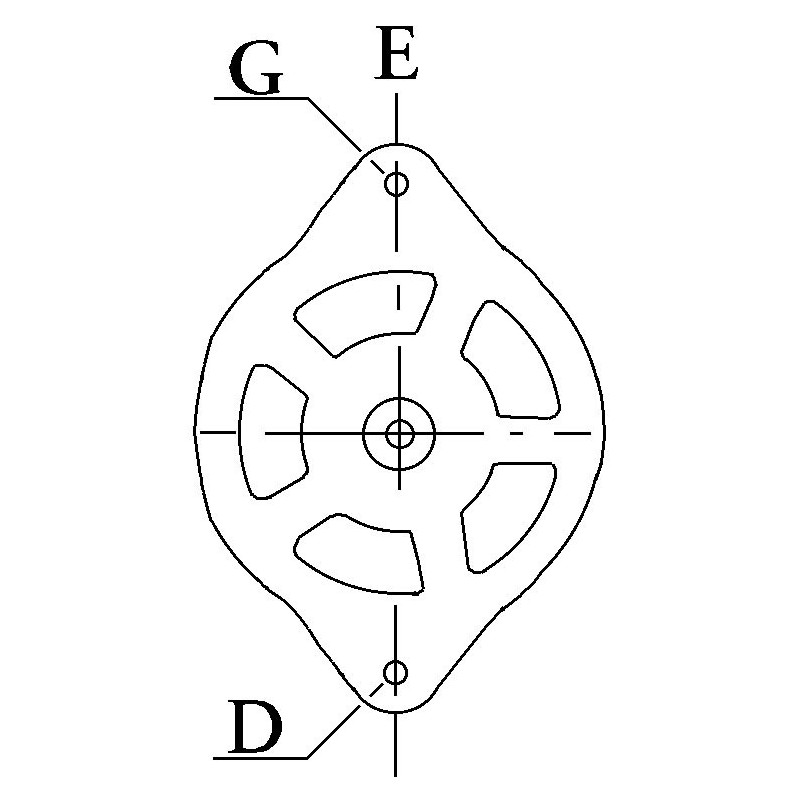

D = Bracket hole 10.10

G = Belt. adj. bracket hole 10.70

B = Width/holder arm 22.00

E = Belt. adj. brackethole pos. 47

C = Mount. bracket dist 45.50

H = Pulley dia. 54.32

A = Pulley dist. 42.50

Grooves/pulley 6

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

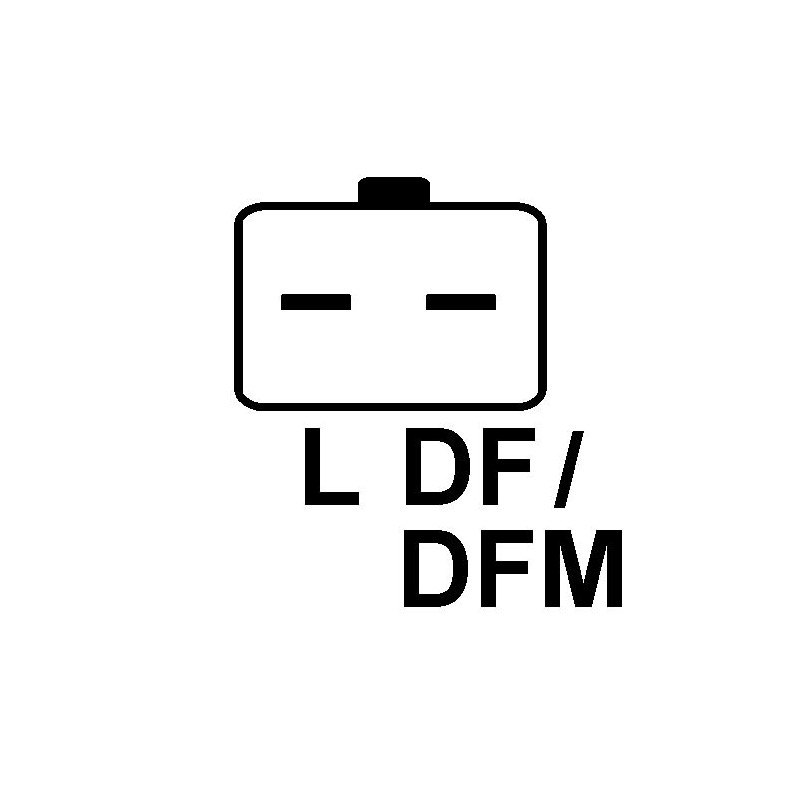

Plug no. 1 PL72

Fan If

Pulley Serpentine Pulley

R = Total length mm 160.00

generic brand

= MAGNETI MARELLI 63341733 / 63321828 / 63321733

= MITSUBISHI A5TA6291ZEC / A5TA6291ZEB / A5TA6291H / A5TA6291G / A5TA6291F /
A5TA6291E / A5TA6291D / A5TA6291C / A5TE6291B / A5TA6291A / A5TA6291

A001TA3391C / A001TA3391B / A001TA3391A / A001T3391 / A005TA6291ZEC / A005TA6291ZEB / A005TA6291H / A005TA6291G / A005TA6291F /
A005TA6291E / A005TA6291D / A005TA6291C / A005TE6291B / A005TA6291A / A005TA6291

A1TA3391C / A1TA3391B / A1TA3391A / A1T3391

= PEUGEOT 9633782580 / 9936204480 / 9638275580 / 9638275880 / 9641398480 / 9642879980

9644927080 / 9656956080 / 9665577580

= VALEO TG9B043 / TG7S014 / TG7S010 / SG7S015 / A11VI99 / A11VI106 / 2607208A
2607208 / 2543521A / 2543521 / 2542920A / 2542920 / 2542484A / 2542484

2542394B / 2542394 / 2542285A / 2542285

                               NO CORE EXCHANGE NEEDED

                                                         TWO YEARS WARRANTY
