Alternator BOSCH 0124515080 / 0124515005 for OPEL

Information:

Voltage 14

Amp 120

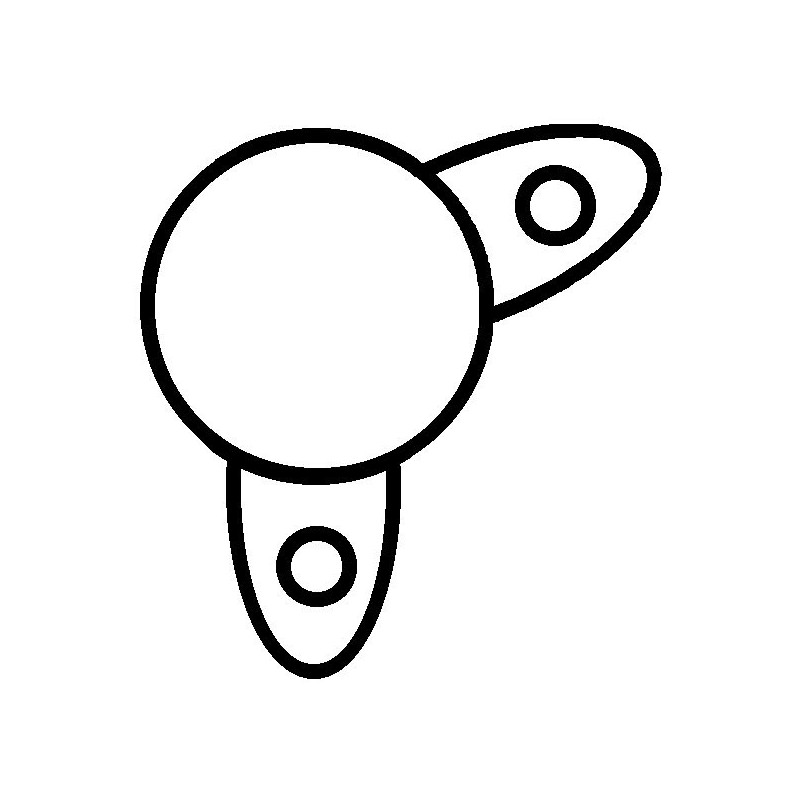

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 33.40

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 57.20

H = Pulley dia. 49.60

A = Pulley dist. 51.00

Grooves/pulley 6

J = Radius 92.00

J = Radius 92.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 180.00

brand wai

= BOSCH 0124515080 / 0124515005 / 0986044030

= DELCO REMY DRB4030

= HELLA 8EL737849001

= LUCAS LRA02025

= OPEL 6204105 / 90561169 / 9200959 / 24429105 / 9512798

93175961

                             NO CORE EXCHANGE NEEDED

                                              TWO YEARS WARRANTY
