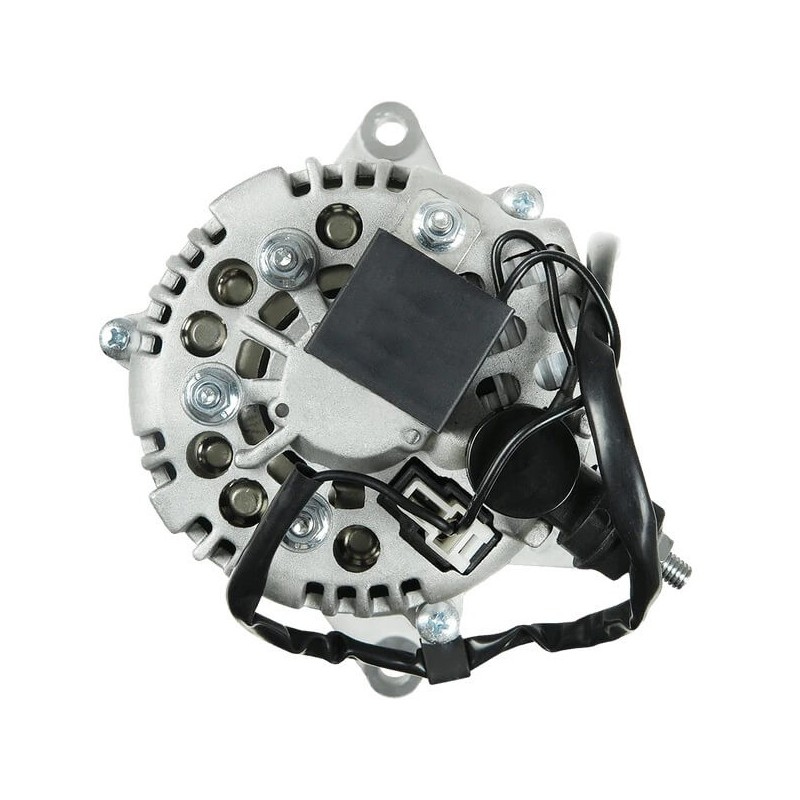

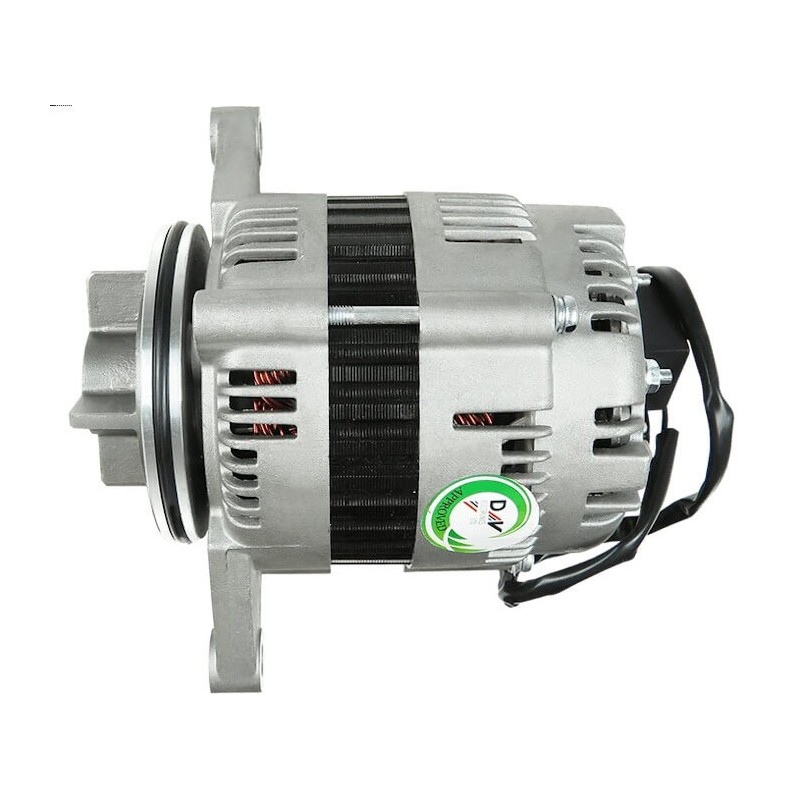

Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Previous
Next
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005
Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005

Alternator replacing HITACHI LR140-708 / LR140-708C / HONDA 31100-MT2-005

w113997

Alternator NEW  for moto HONDA Gold wing:

= HITACHI LR140-708 / LR140-708C / LR140-708CN / LR140-707 / LR140-704

= HONDA 31100-MT2-005 / 31100-MT2-015 / 31100-MT2-0150

modele 40 Amp

                                        A 90A VERSION exists for HONDA W12485N90A

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Read more
€169.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 40

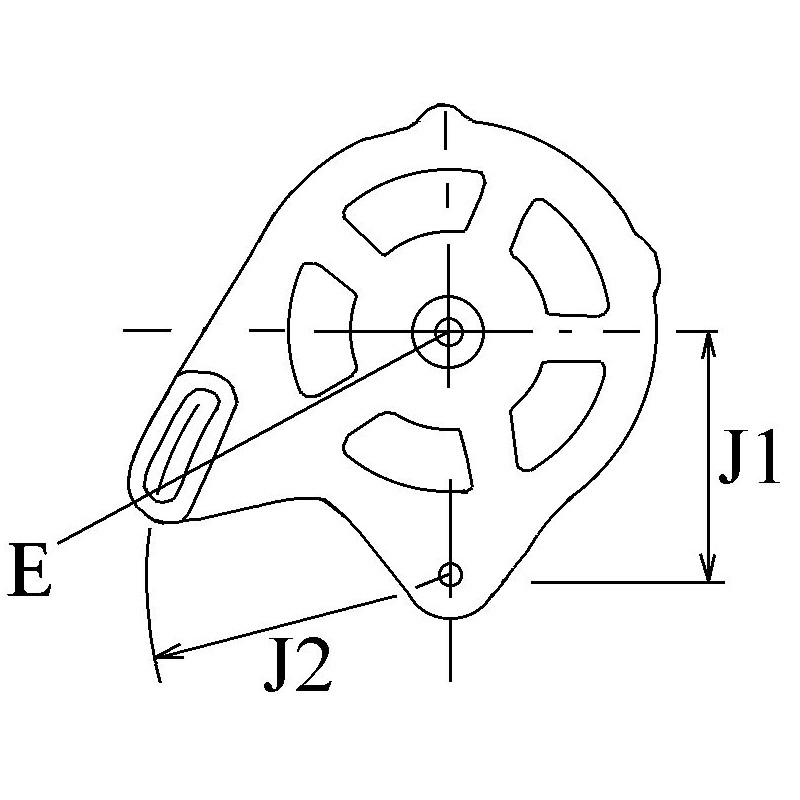

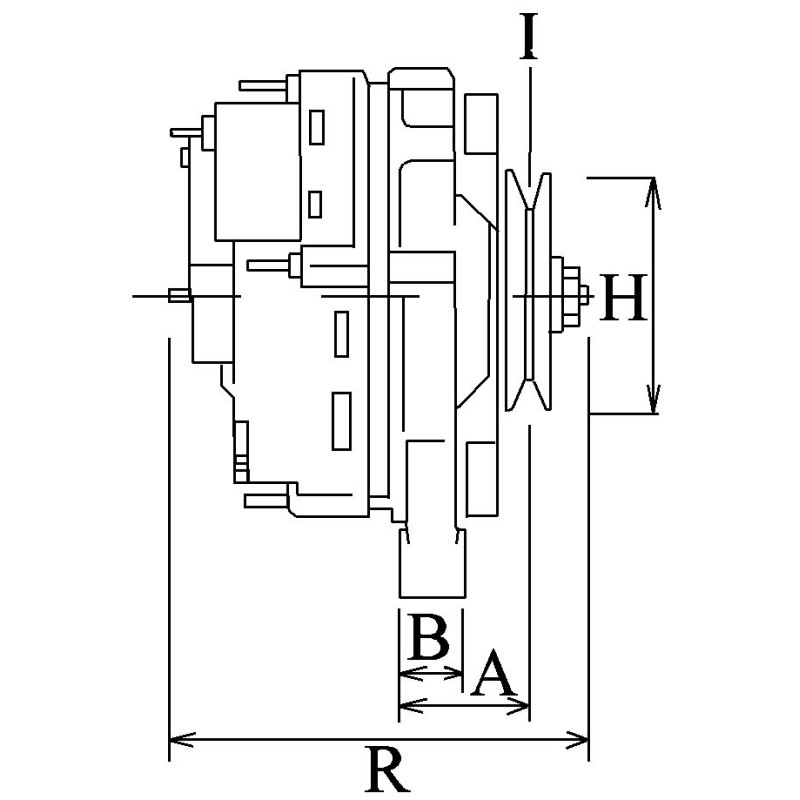

D = Bracket hole 10.20

G = Belt. adj. bracket hole 10.20

B = Width/holder arm 14.80

E = Belt. adj. brackethole pos. 55

J = Radius 76.50

J = Radius 82.00

J = Radius 84.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

D = Bracket hole 8.50

Fan If

G = Belt. adj. bracket hole 8.50

= HITACHI LR140-708 / LR140-708C / LR140-708CN / LR140-707 / LR140-704

= HONDA 31100-MT2-005 / 31100-MT2-015 / 31100-MT2-0150
= Wai 12485 / 12485N

Reference Maker
125.548.040 PSH
12485N WAI / TRANSPO
70-25-12485 WILSON
ALT32189 WOODAUTO
CAL20195GS CASCO
20145591OE REAL
2020195 SANDO
1-2494-01HI WAI / TRANSPO
UD12311A AS-PL
113997 CARGO
CAL20195 CASCO
RA00118 DELCO
140-14110 DIXIE
EAA-254257 EAA
LR140-707 HITACHI
LR140-707A HITACHI
LR140-708 HITACHI
LR140-708C HITACHI
LR140-708CN HITACHI
31100-MT2-005 HONDA
31100-MT2-015 HONDA
31100-MT2-0150 HONDA

Mounted on :

1990 HONDA GL1500 Gold Wing
2000-91 HONDA GL1500A Gold Wing Aspencafrom
1996-92 HONDA GL1500I Gold Wing Interstate
2000-90 HONDA GL1500SE Gold Wing Special Edition

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
