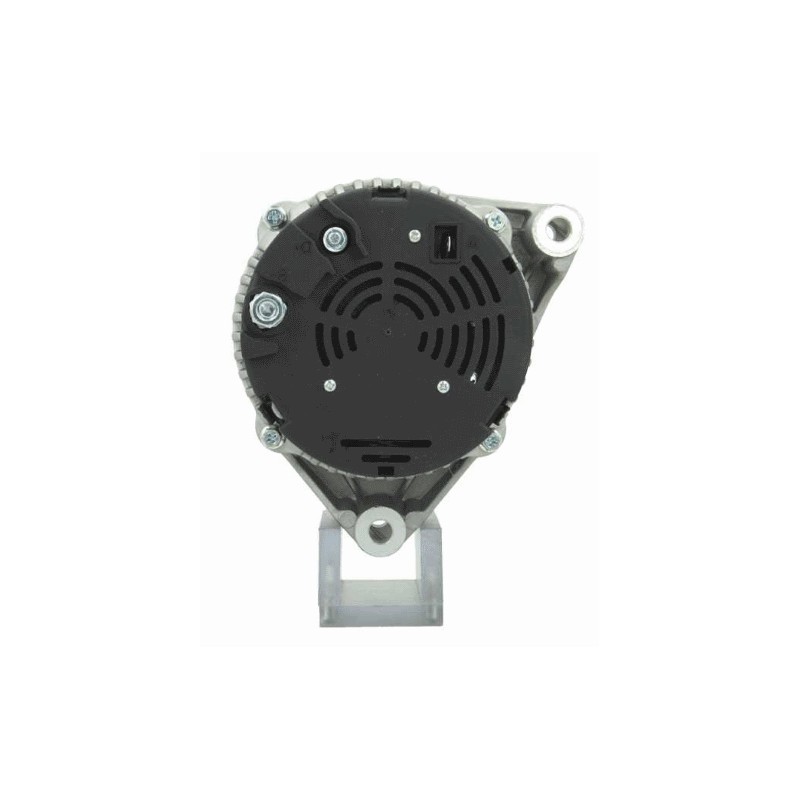

Alternator replacing BOSCH 0123510100 / 0123510081 / 0123510079

Information:

Voltage 14

Amp 115

D =Bracket hole 10.20

G =Belt. adj. bracket hole 10.20

B =Width/holder arm 56.10

E =Belt. adj. brackethole pos. 49

H =Pulley dia. 50.00

A =Pulley dist. 82.00

Grooves/pulley 6

J1 =Radius 90.00

J2 =Radius 90.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R =Total length mm 186.00

generic brand

= BOSCH 0123510100 / 0123510081 / 0123510079 / 0123510068 / 0123510050
0123510022

= DAF 1516445

= ISKRA AAN5133 / 11.203.116

= MERCEDES-BENZ 0091546002 / 0101540202 / 0101543202 / 0101547502 / 0101548102

0111540702 / A0091546002 / A0101540202 / A0101543202 / A0101547502

A0101548102 / A0111540702

                            NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
