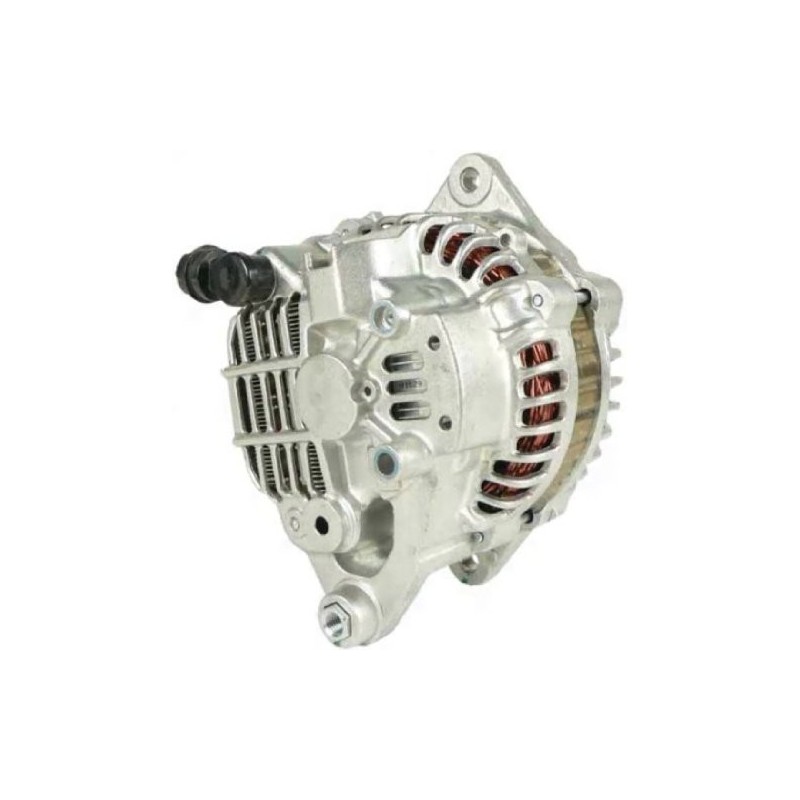

Alternator replacing A003TG1291 / A003TG1291A / A003TG1291B
Alternator replacing :
MAZDA N3H1-18-300, N3H1-18-300A, N3H1-18-300B, N3H1-18-300R0A, MITSUBISHI A003TG1291, A003TG1291A, A003TG1291B, A3TG1291, A3TG1291A, A3TG1291B
LRA03140 / DRA0012
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 100 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 38.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist | 65.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 9.00 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 5 |
| K | Position B + | M8 |
| K | B+ position en min. | 50 |
| N | Rotation | Cr |

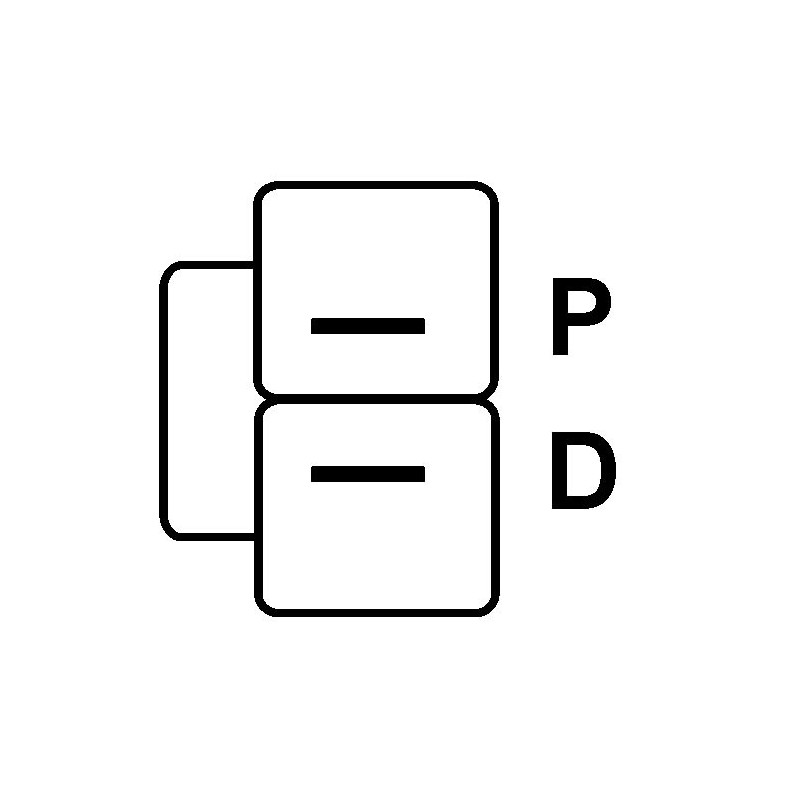

| O | Plug n° 1 | PL54 |
generic brand replacing :
| 11025 | Lester |
| 11025N | WAI |
| 11025R | WAI |
| 12061012 | EuroTec |
| 145549100 | PSH |
| 275752 | Elstock |
| A003TG1291 | MITSUBISHI |
| A3TG1291A | MITSUBISHI |
| A3TG1291B | MITSUBISHI |
| DRA0012 | DELCO REMY |
| J5113055 | Nipparts |
| LRA03140 | LUCAS |
| N3H118300 | MAZDA |
| N3H118300A | MAZDA |
| N3H118300B | MAZDA |
fits:
| Brand | Model | Tipo | Year | Remarks |
|---|---|---|---|---|
| MAZDA | RX8 1.3 | [13B-MSP] | 01.2003- |
