| 0986CR6086 | Bosch ruil | |
| 2243251202 | DRI | |
| 255520120 | PSH | |
| 2610819 | ||
| 287559 | Elstock | |
| 373002E300 | Kia | |
| 373002E300RU | Kia | |
| 40008 | CEVAM | |
| 40208 | CEVAM | |
| 931191 | EDR | |
| A0002610819 | Valeo | |
| AL4091X | Bosch (USA) | |
| DRA1191 | Remy | |
| J5110551 | Herth Buss | |
| LRA03949 | Lucas |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 21.00 |
| B | Width/holder arm | 14.50 |
| C | Mount. bracket dist. | 58.00 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 7 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 58.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 93.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 2 |
| N | Rotation | CW |

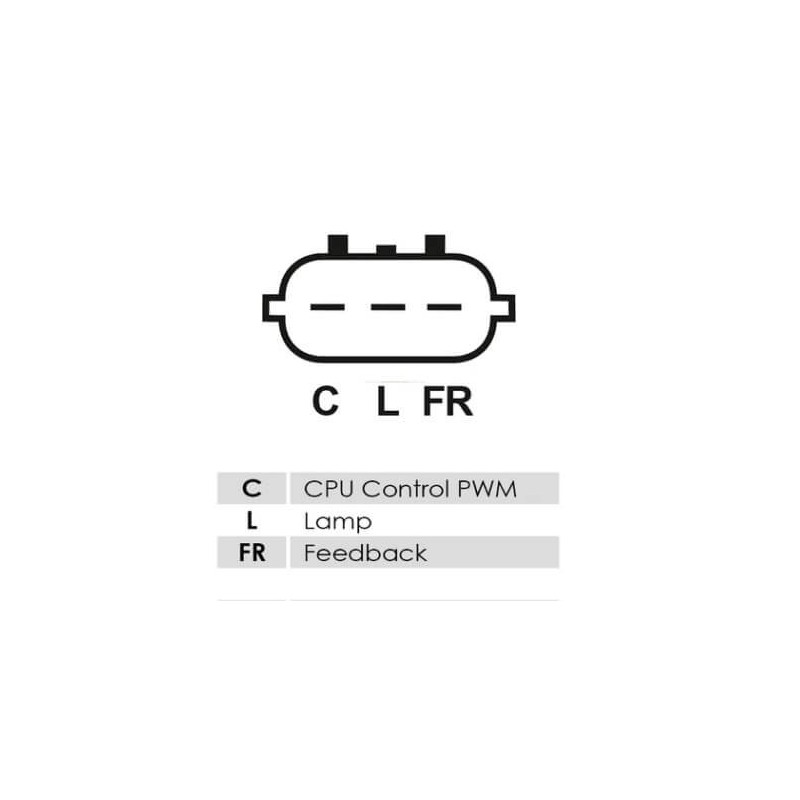

| O | Plug no. | PL176 |
| R | Total length mm | 177.00 |
| Lamp type | Inactive | |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Regulator type | IR | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
for
| Brand | Model | Type | Year |
| HYUNDAI | ix35 2.0 GDi | [G4NC] | 01/08/13 |
| HYUNDAI | ix35 2.0 GDi 4WD | [G4NC] | 01/08/13 |
| HYUNDAI | Tucson 2.0 | [G4NA] | 01/06/15 |
| HYUNDAI | i40 2.0 CVVT | [G4NA] | 01/10/12 |
| HYUNDAI | i40 2.0 GDi | [G4NC] | 01/03/12 |
| HYUNDAI | i40 2.0 GDi | [G4NC] | 01/12/14 |
| HYUNDAI | i40 CW 2.0 CVVT | [G4NA] | 01/07/11 |
| HYUNDAI | i40 CW 2.0 CVVT | [G4NA] | 01/10/12 |
| HYUNDAI | i40 CW 2.0 GDi | [G4NC] | 01/07/11 |
| HYUNDAI | i40 CW 2.0 GDi | [G4NC] | 01/12/14 |
| HYUNDAI | ix35 2.0 4WD | [G4NA] | 01/09/14 |
| KIA | Carens 2.0 GDi | [G4NC] | 01/03/13 |
| KIA | Optima 2.0 | [G4KD] | 01/03/12 |
| KIA | Optima 2.0 CVVL | [G4KD] | 01/03/12 |
| KIA | Optima 2.0 CVVL | [G4ND] | 01/09/15 |
| KIA | Optima 2.0 CVVT | [G4NA] | 03.2013-12.2015 |
| KIA | Soul 2.0 CVVT | [G4NA] | 01/02/14 |
| KIA | Sportage 2.0 CVVT | 11.2014-12.2015 | |
| KIA | Sportage 2.0 CVVT AWD | [G4NA] | 11.2014-12.2015 |
| KIA | Sportage 2.0 GDi | [G4NC] | 01/02/14 |
| KIA | Sportage 2.0 GDi AWD | [G4NC] | 01/02/14 |
| OPEL | Astra 1.6 SIDi | [A16XHT] | 12.2012-10.2016 |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
