Alternator replacing 104210-3630 / 4M5T10300KB / 4M5T10300KA
Alternator for FORD C-max / Focus II
DENSO 104210-3630
FORD 4M5T10300KB / 4M5T10300KA / 1302007
0986083080 / 4M5T10300KB / DRA0098 / LRA02912
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 120
D = Bracket hole 8.00
G =Belt. adj. bracket hole 8.0
B =Width/holder arm 17.20
E =Belt. adj. brackethole pos. 50
C =Mount. bracket dist 52.20
J = Radius 82.00
J =Radius 86.00
Position B + M8
Rotation Cr

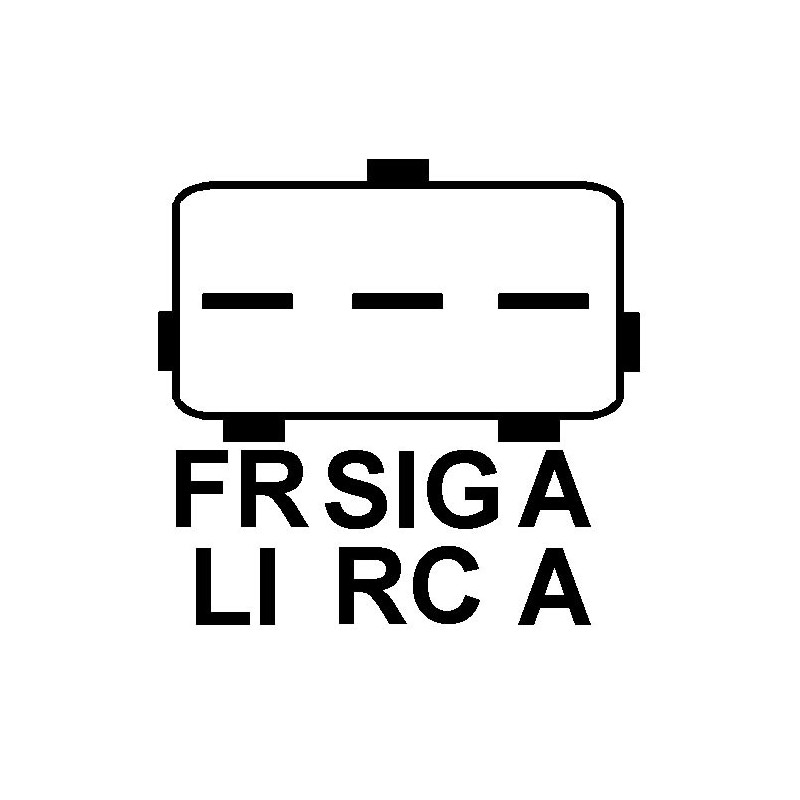

Plug no. 1 PL57
Fan If
Pulley Without
Total length mm 165.00
= DENSO 104210-3630
= FORD 4M5T10300KB / 4M5T10300KA / 1302007
= DELCO REMY DRA0098
= MOTORCRAFT 4M5T- 10300-KB
= LUCAS LRA02912
generic brand
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focus | 1.8 | Diesel | 2005 01 | 2008 01 | KKDB | TDCi | 85 | 115 | Hayon | 1753 | 4 | DA_ |
| Focus | 1.8 | Diesel | 2005 04 | 2008 01 | KKDB | TDCi | 85 | 115 | 1753 | 4 | DA_ | |
| Focus | 1.8 | Diesel | 2005 01 | 2007 03 | KKDA | TDCi | 85 | 115 | MPV | 1753 | 4 | |
| Focus | 1.8 | Diesel | 2004 11 | 2008 01 | KKDA | TDCi | 85 | 115 | Break | 1753 | 4 | DAW_ |
| Focus | 1.8 | Diesel | 2005 01 | 2008 01 | KKDA | TDCi | 85 | 115 | Hayon | 1753 | 4 | DA_ |
| Focus | 1.8 | Diesel | 2004 11 | 2008 01 | KKDB | TDCi | 85 | 115 | Break | 1753 | 4 | DAW_ |
| Focus | 1.8 | Diesel | 2005 04 | 2008 01 | KKDA | TDCi | 85 | 115 | 1753 | 4 | DA_ | |
| C-Max | 1.8 | Diesel | 2007 02 | - | KKDA | TDCi | 85 | 115 | MPV | 1753 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
