Alternator replacing DENSO 421000-0028 / 421000-0027 / 421000-0026

Information:

Voltage 14

Amp 160

D = Bracket hole 11.00

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 30.00

E = Belt. adj. brackethole pos. 45

H = Pulley dia. 57.70

A = Pulley dist. 50.50

Grooves/pulley 6

J = Radius 83.00

J = Radius 83.00

Position B + M8

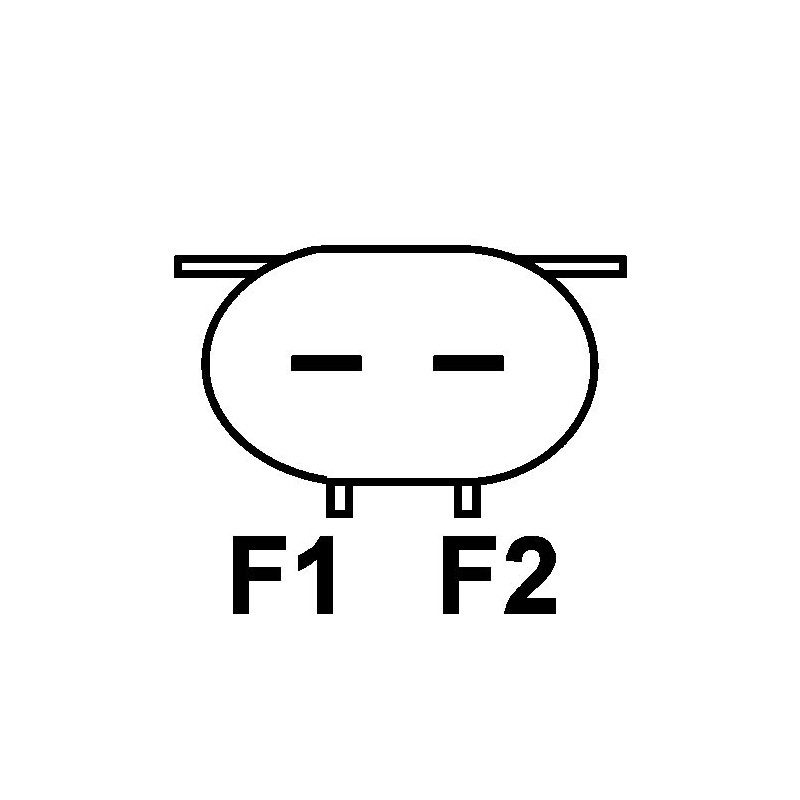

Plug no. 1 PL153

Fan If

Pulley Serpentine Pulley/ Freewheel pulley

R = Total length mm 164.00

Generic brand

= DELCO REMY DRA0541

= DENSO 421000-0028 / 421000-0027 / 421000-0026 / 421000-0025 / 421000-0024

421000-0023 / 421000-0022 / 421000-0011 / 421000-0012 / 421000-0021

= CHRYSLER 04868430AB / 04868430AC / 04868430AD / 04868430AE / 04868430AF

04868431AB / 04868431AC / 4868430ab / 4868430AC / 4868430ad

4868430ae / 4868430af

= LUCAS LRA02543

                                             TWO YEARS WARRANTY

                             NO CORE EXCHANGE NEEDED
