Alternator replacing TG15C190 / 440408 / VW 059903019C

Display all pictures

Alternator replacing TG15C190 / 440408 / VW 059903019C

Reference: W205560150

Condition: New product

1 Item Items

059903019C	Volkswagen
115631	Cargo
205560150	PSH
286575	Elstock
439775	Valeo
440408	Valeo
614223	Valeo
ALT14346	Wood Auto
ALT14527	Wood Auto
DRA1112	Remy
LRA03465	Lucas

More info
Data sheet

More info

Information:

Electrical Information
Voltage		14
Amp		150

Physical Information
D	Bracket hole	8.50
G	Belt. adj. bracket hole	8.50
B	Width/holder arm	14.00
E	Belt. adj. brackethole pos.	45
C	Mount. bracket dist	60.85
H	Pulley dia.	56.00
A	Pulley dist.	30.00
i	Grooves/pulley	6
j	Radius	90.00
j	Radius 2	90.00
k	Position B +	M8
n	Rotation	Cr
o	Plug no. 1	PL181
R	Total length mm	187.00

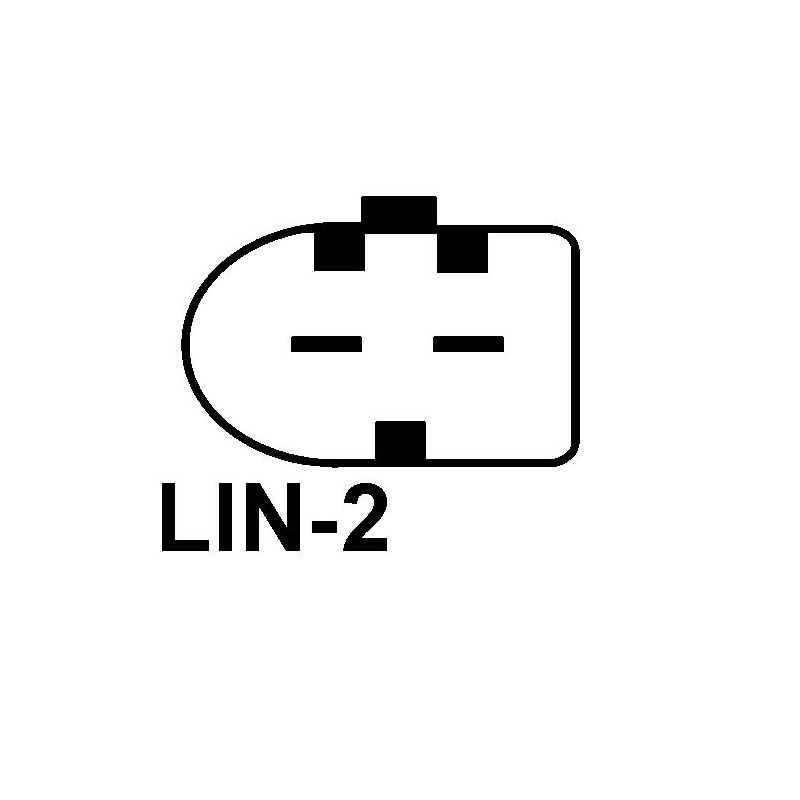

Tipo borne		LIN

Replacing
059903019C
205560150
286575
439775
440408
614223
9090705F
931112
DRA1112
LRA03465
TG15C190

Generic Brand

Mounted on :

Audi - Europe (2008-2016)

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Data sheet

Poulie	serpentine
Connecteur régulateur	PL6
Ampérage	140
Voltage	14
