Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Previous
Next
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J
Alternator replacing FG23S035 / FG23S061 / 059903018J

Alternator replacing FG23S035 / FG23S061 / 059903018J

wa3491s | Brand : AS
059903018J VW
059903018JX VW
059903019 VW
059903019F VW
059903019FX VW
059903019X VW
2015438.1 SANDO
20179834OE REAL
205.538.220 PSH
20648N WAI / TRANSPO
209212 ERA
28-6502 ELSTOCK
4075 CEVAM
439756 VALEO
440346 VALEO
553480RIV KUHNER
Read more
€269.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

059903018J VW
059903018JX VW
059903019 VW
059903019F VW
059903019FX VW
059903019X VW
2015438.1 SANDO
20179834OE REAL
205.538.220 PSH
20648N WAI / TRANSPO
209212 ERA
28-6502 ELSTOCK
4075 CEVAM
439756 VALEO
440346 VALEO
553480RIV KUHNER
89215378 POWERMAX
9215378 POWERMAX
A-9563 DIXIE
ALTE336 3EFFE
ALTE337 3EFFE
ALTE933 3EFFE
ALV2335 KRAUF
CAL15438GS CASCO
DA2187 DELCO
DRA1077 DELCO
FG23S035 VALEO
FG23S061 VALEO
FG23S066 VALEO
FGN23S061 VALEO
LRA03390 LUCAS
LRA3390 LUCAS
UD17164A AS-PL
VAL439756 WOODAUTO
209283 ERA
ALT00433 ELECTROLOG
A12VA0743AS SIDAT
ANM33297X ANDEL
55151152 MEAT & DORIA
59903018J VW
59903018JX VW
59903019X PORSCHE
59903019X VW
205.538.220.004 PSH
A131.106 PSH
A145.878 PSH
32000023 HERTH+BUSS

Features

Specifications

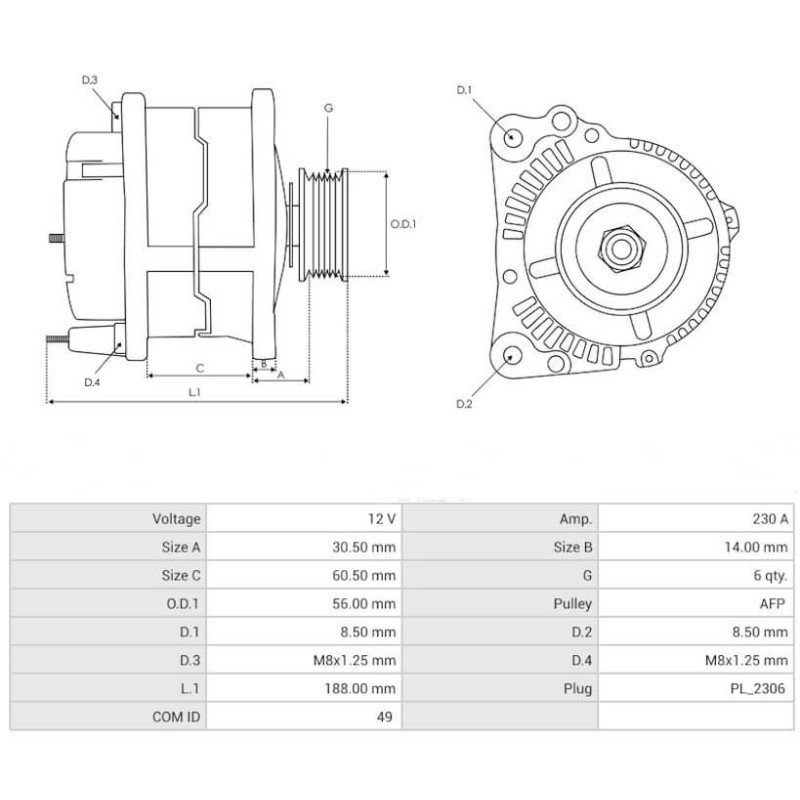

Voltage [ V ]    12

Current [ A ]    230

Dimension A [ mm ]    30.50

Dimension B [ mm ]    14.00

Dimension C [ mm ]    60.50

G [ qty. ]    6

O.D.1 [ mm ]    56.00

Pulley    AFP

D.1 [mm]    8.50

D.2 [mm]    8.50

D.3 [mm]    M8x1.25

D.4 [mm]    M8x1.25

L.1 [mm]    188.00

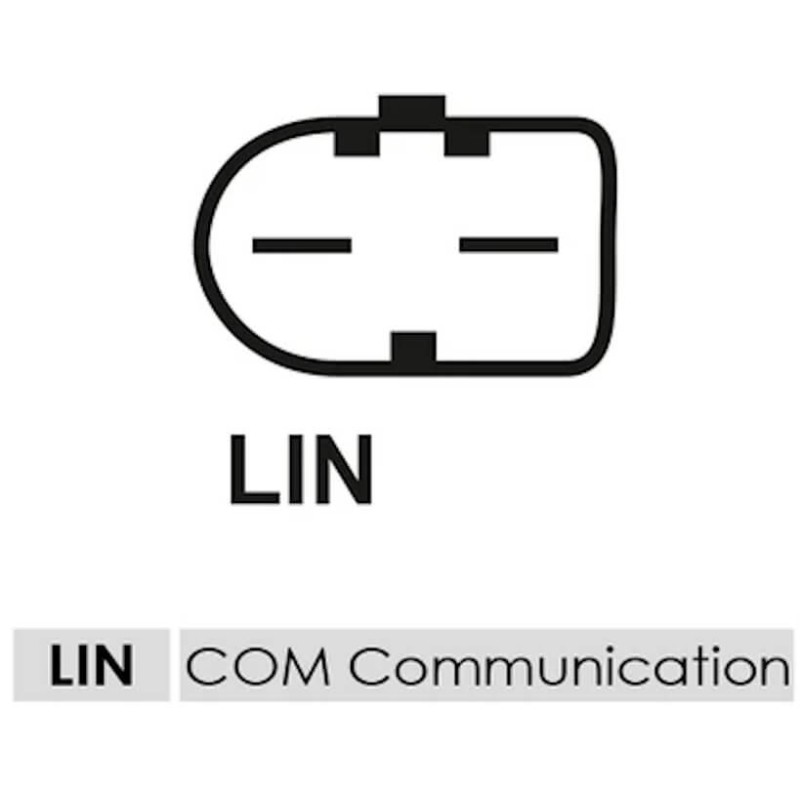

Plug    PL_2306

COM ID    49

Mounting on

Brand Model Typ Year
AUDI A6 C7 (4G2, 4GC) 3.0 TDI CLAB 11.2010 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI CLAB 05.2011 - 09.2018
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI CLAB 11.2010 - 03.2015
AUDI Q7 (4LB) 3.0 TDI quattro CASA 11.2007 - 08.2015
AUDI Q7 (4LB) 3.0 TDI quattro CCMA 11.2007 - 08.2015
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CDUC 03.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CDUC 05.2011 - 09.2018
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CDUC 10.2010 - 06.2016
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro CDUD 01.2012 - 06.2016
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CDUD 10.2010 - 06.2016
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CDUD 03.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CDUD 05.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CGQB 11.2011 - 09.2018
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro CGQB 01.2012 - 12.2014
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CGQB 11.2011 - 03.2015
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CGQB 11.2011 - 09.2018
AUDI Q7 (4LB) 3.0 TDI quattro CJGA 11.2007 - 08.2015
AUDI Q7 (4LB) 3.0 TDI quattro CJGD 05.2011 - 08.2015
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CKVB 10.2010 - 06.2016
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CKVB 03.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CKVB 05.2011 - 09.2018
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CKVC 03.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CKVC 05.2011 - 09.2018
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CKVC 10.2010 - 06.2016
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro CKVC 01.2012 - 06.2016
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro CLAA 01.2012 - 12.2014
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CLAA 12.2010 - 03.2015
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro CLAA 03.2011 - 09.2018
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro CLAA 05.2011 - 09.2018
AUDI Q7 Van (4LB) 3.0 TDI quattro CLZB 05.2011 - 08.2015
AUDI Q7 (4LB) 3.0 TDI quattro CLZB 05.2011 - 08.2015
AUDI Q7 (4LB) 3.0 TDI quattro CNRB 11.2007 - 08.2015
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro CPNB 05.2013 - 06.2017
AUDI Q7 Van (4LB) 3.0 TDI quattro CRCA 05.2011 - 08.2015
AUDI Q7 (4LB) 3.0 TDI quattro CRCA 05.2011 - 08.2015
AUDI A7 Sportback (4GA, 4GF) S7 quattro CEUC 02.2012 - 03.2015
PORSCHE MACAN (95B) 3.0 S Diesel MCD.UD 02.2014 - 09.2018
PORSCHE MACAN (95B) 3.0 S Diesel MCT.BA 02.2014 - 09.2018
PORSCHE MACAN (95B) 3.0 S Diesel MCT.BB 02.2014 - 09.2018
PORSCHE MACAN (95B) 3.0 S Diesel MCT.BC 02.2014 - 09.2018
