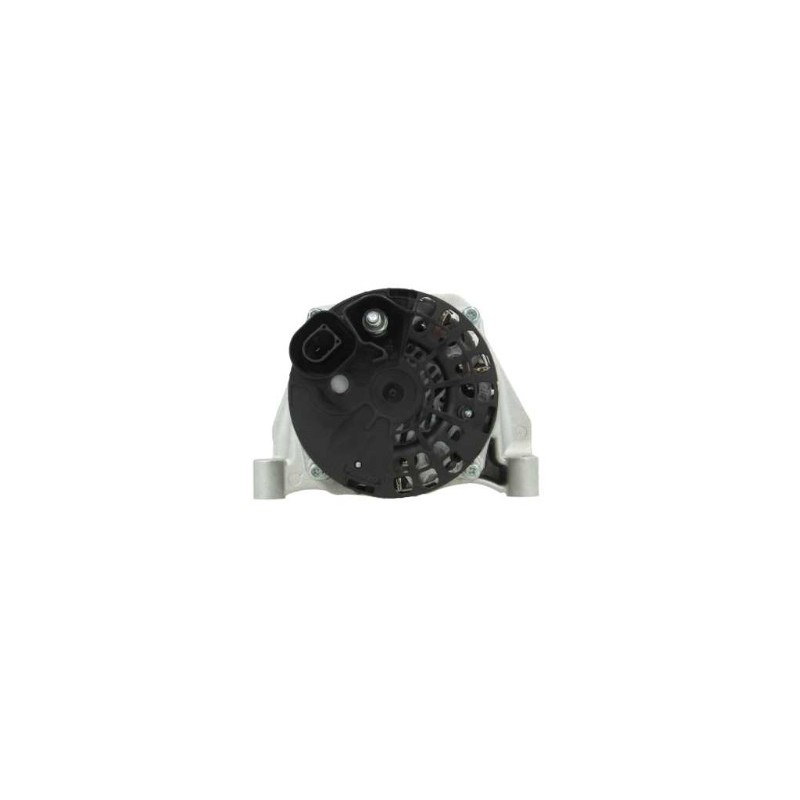

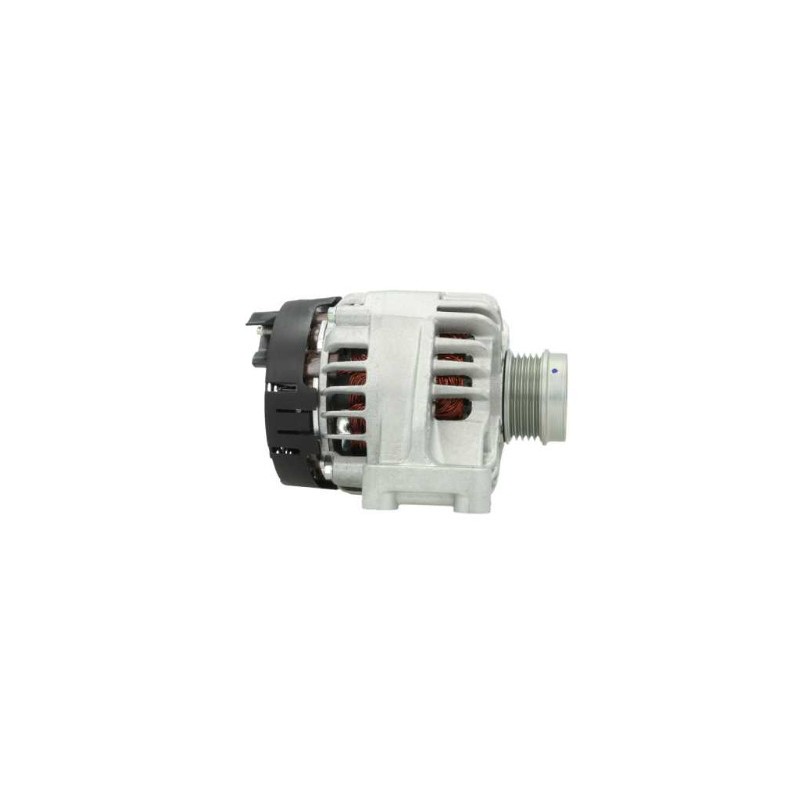

Alternator NEW replacing DENSO 101210-1670 / 101210-1840 / FIAT 51874104
Alternator NEW replacing DENSO 101210-1670 / 101210-1840 / FIAT 51874104 / 51874105 / 51929095
la version origine DENSO under the reference w115457
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.50 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 24.00 |
| C | Mount. bracket dist | 50.00 |
| H | Pulley dia. | 54.00 |
| A | Pulley dist. | 17.00 |
| i | Grooves/pulley | 5 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL174 |
| D | Trou from fixation support 2 | 10.50 |
| G | Belt. adj. bracket hole 2 2 | 10.50 |
| R | Total length mm | 197.00 |

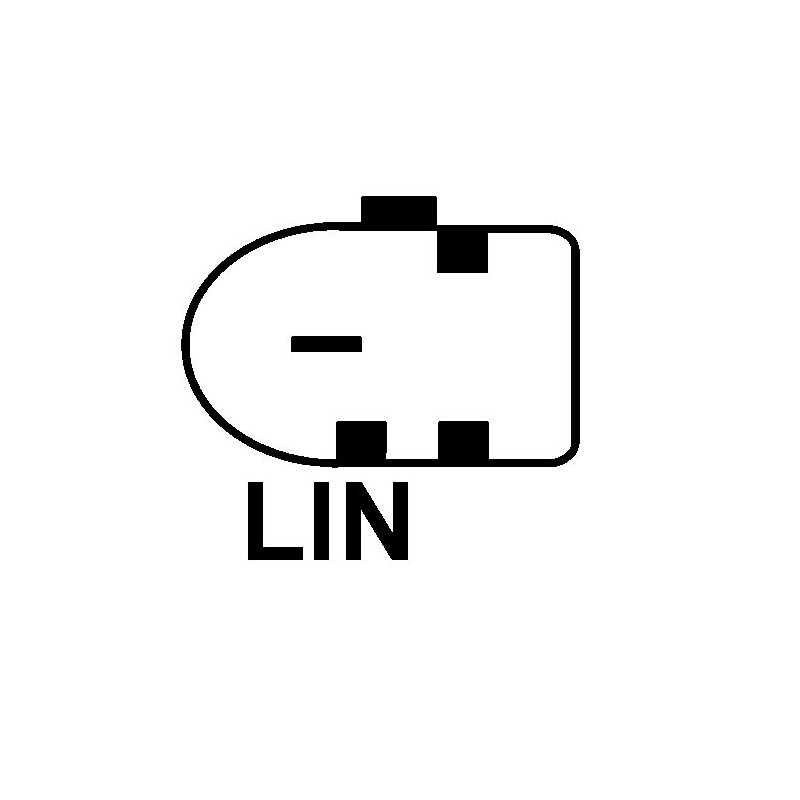

| Communication | LIN | |
Replacing | |
|---|---|
| 101210-1670 | DENSO |
| 101210-1840 | DENSO |
| 51874104 | FIAT |
| 51874105 | FIAT |
| 51929095 | FIAT |
| 063377561010 |
| 1012101660 |
| 1012101670 |
| 1012101830 |
| 1012101840 |
| 115457 |
| 286799 |
| 505574120 |
| 51874105 |
| 51929095 |
| 63377561 |
| 931318 |
| DAN1078 |
| DRA1318 |
| LRA03659 |
| MS1012101660 |
Generic brand
Mounted on :
FIAT, Voiture from voyageurs from l'UE
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 C | 500 C | 0.9 | Unleaded | 2013 12 | - | 312A6.000 | 44 | 60 | Décapotable | 964 | 2 | 312_ | |||
| Tipo | Tipo | 1.4 | Unleaded | 2016 05 | - | 940B7.000 | LPG | 88 | 120 | Break | 1368 | 4 | 356_ | Med start / stop | |
| Tipo | Tipo | 1.4 | Unleaded | 2016 05 | - | 940B7.000 | LPG | 88 | 120 | Hayon | 1368 | 4 | 356_ | Med start / stop |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
