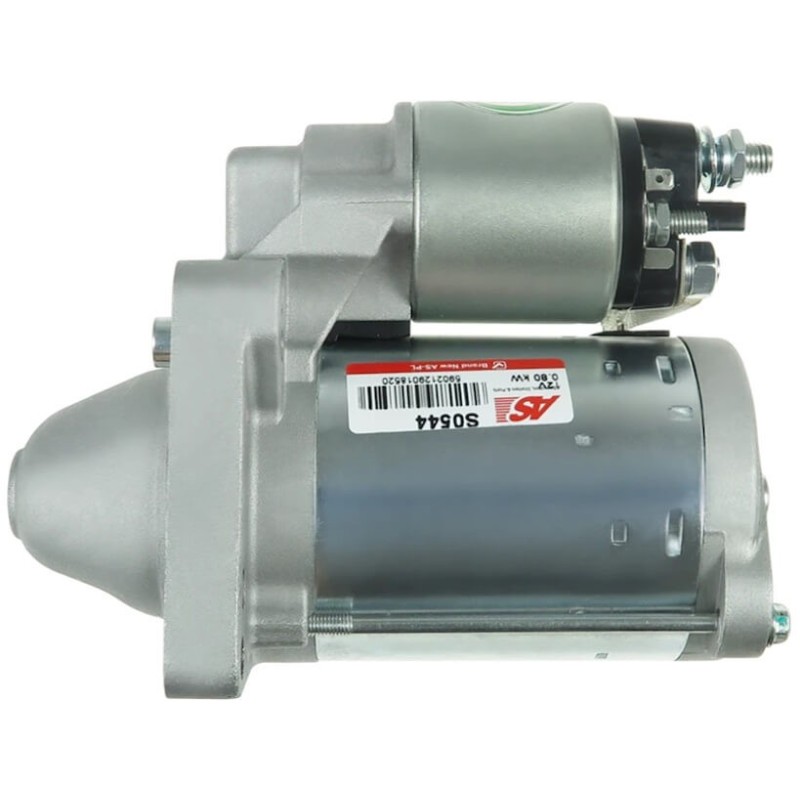

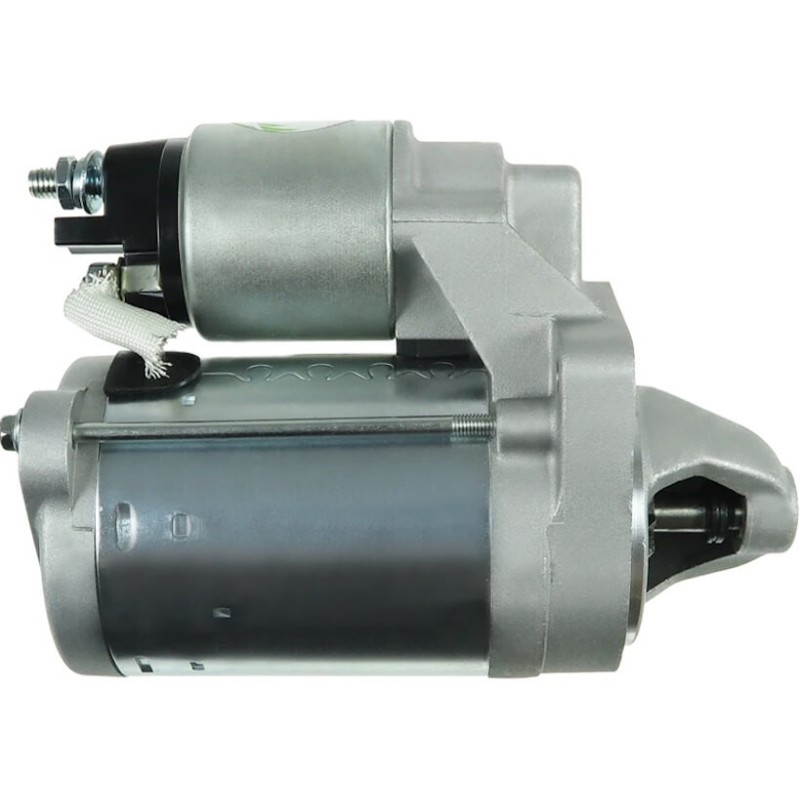

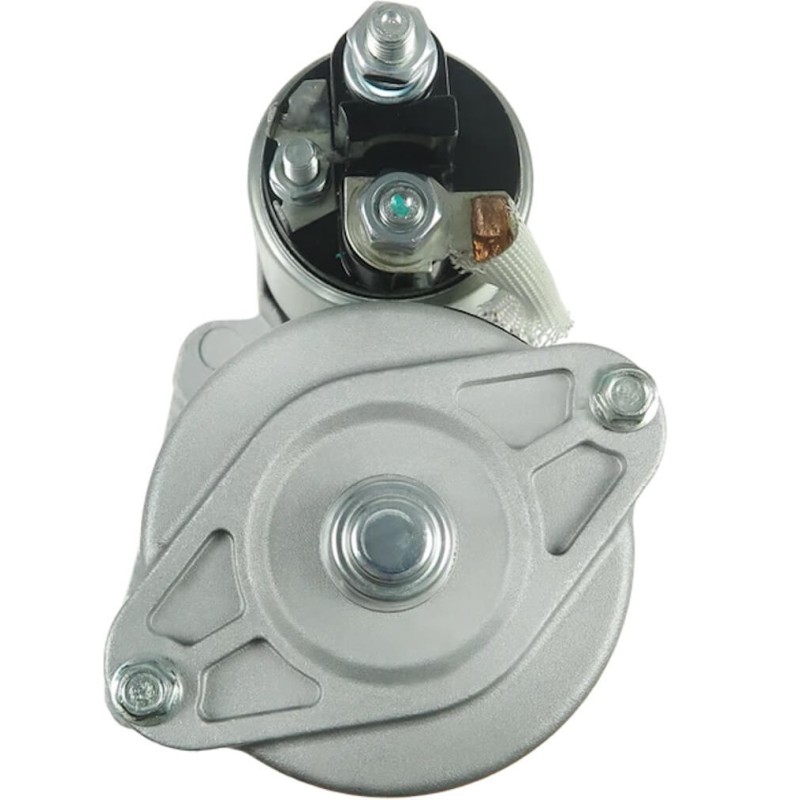

Starter for motorbike / Quad / Snowmobile / Scooter / Jetski
Starter replacing 0745-427 / SCH0107 for ARCTIC CAT
€89.90
Références
| PRSL147 | 3EFFE |
| STRL147 | 3EFFE |
| AZMT-53-010-1141 | A.Z. MEISTERTEILE |
| S0544 | AS-PL |
| UD12062S | AS-PL |
| F000CD0900 | BOSCH |
| F000CD0903 | BOSCH |
| F000CD09A0 | BOSCH |
| F000CD09A3 | BOSCH |
| F000CD0A01 | BOSCH |
| 0986B05008 | BOSCH |
| F000CD0001 | BOSCH |
| 0986B05009 | BOSCH |
| 8000090 | DELCO |
| DRS3589 | DELCO |
| 318087092 | DRI |
| STR9002 | ELECTROLOG |
| 25-2416 | ELSTOCK |
| 220516 | ERA |
| 11019300 | EUROTEC |
| 105121 | FARCOM |
| 46465475 | FIAT |
| 46432262 | FIAT |
| 46843092 | FIAT |
| 71722372 | FIAT |
| 71722373 | FIAT |
| 71782359 | FIAT |
| 71782360 | FIAT |
| 63103028 | FIAT |
| 46800155 | FIAT |
| 46796553 | FIAT |
| 46765839 | FIAT |
| 55209989 | FIAT |
| 46763530 | FIAT |
| 55201771 | FIAT |
| 71785851 | FIAT |
| 55185057 | FIAT |
| 46758241 | FIAT |
| 8080064 | FRIESEN |
| 8EA737609-001 | HELLA |
| 8EA012526-771 | HELLA |
| STB8975 | KRAUF |
| 256936R | KUHNER |
| LRS01474 | LUCAS |
| LRS1474 | LUCAS |
| 944280800640 | MAGNETI MARELLI |
| 63101003 | MAGNETI MARELLI |
| MSN410 | MAGNETI MARELLI |
| 63101008 | MAGNETI MARELLI |
| MRS80064 | MAGNETI MARELLI |
| 63101022 | MAGNETI MARELLI |
| 63101023 | MAGNETI MARELLI |
| 943226391010 | MAGNETI MARELLI |
| MSR654 | MAGNETI MARELLI |
| 88212686 | POWERMAX |
| 500.026.083.010 | PSH |
| QRS1106 | QUINTON HAZELL |
| S12BH0790A2 | SIDAT |
| FI9069 | SNRA |
| STX200151 | STARDAX |
| 885ST11 | STARTCAR |
| ST01027 | TMI |
| 458512 | VALEO |
| 201074 | VALEO |
| 432643 | VALEO |
| 455553 | VALEO |
| 495108 | VALEO |
| 446520 | VALEO |
| TSC1015 | VALEO |
| 31282N | WAI / TRANSPO |
| STR50685 | WOODAUTO |
| STR52077 | WOODAUTO |
| WOOSTR50685 | WOODAUTO |
| WOOSTR52077 | WOODAUTO |
| 0986019301 | BOSCH |
| BST2549 | BORG & BECK |
| S132.839 | PSH |
Features

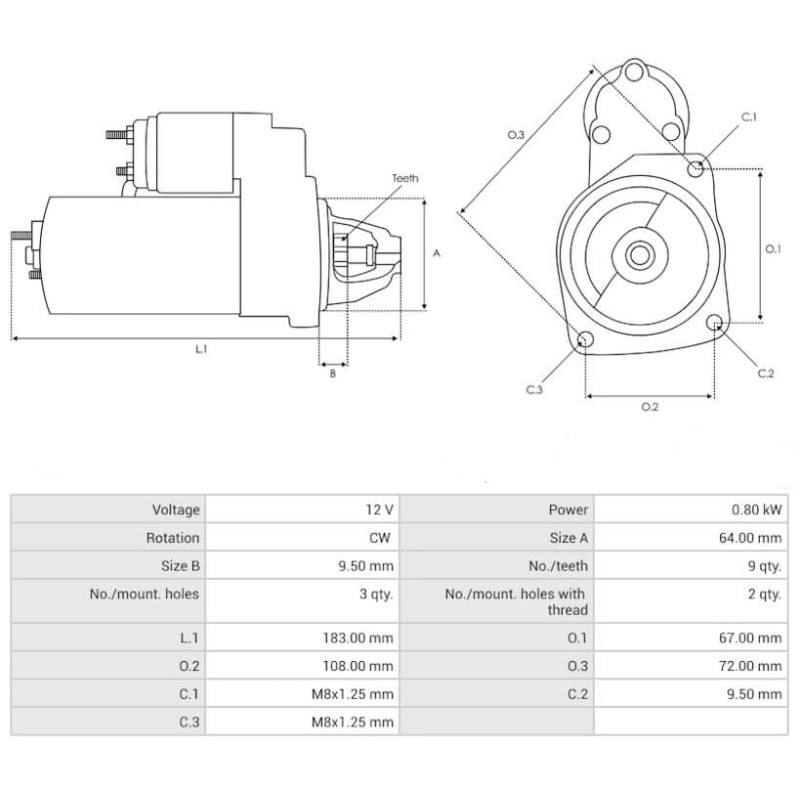

Specifications
| Voltage [ V ] | 12 |
| Power [ kW ] | 0.80 |
| Rotation | CW |
| Size A [ mm ] | 64.00 |
| Size B [ mm ] | 9.50 |
| No./teeth [ qty. ] | 9 |
| No./mount. holes [ qty. ] | 3 |
| No./mount. holes with thread [ qty. ] | 2 |
| L.1 [ mm ] | 183.00 |
| O.1 [ mm ] | 67.00 |
| O.2 [ mm ] | 108.00 |
| O.3 [ mm ] | 72.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 9.50 |
| C.3 [ mm ] | M8x1.25 |
Mounting on
| Brand | Model | Typ | Year |
| FIAT | PALIO (178_, 171_, 371_) 1.0 | 178A1.000 | 04.1996 - 10.2003 |
| FIAT | PALIO (178_, 171_, 371_) 1.0 | 178A3.011 | 04.1996 - 10.2003 |
| FIAT | UNO (146_, 158_) 1.1 | 160A3.000 | 04.1986 - 06.2006 |
| FIAT | PANDA Hatchback Van (141_) 1.1 | 187A1.000 | 09.2000 - 02.2004 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 176B2.000 | 01.1998 - 01.2010 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 187A1.000 | 01.1998 - 01.2010 |
| FIAT | SEICENTO / 600 Hatchback Van (287_) 1.1 (187CXB/C) | 176B2.000 | 01.1998 - 01.2010 |
| FIAT | PANDA Hatchback Van (141_) 1.1 4x4 | 187A1.000 | 09.2000 - 02.2004 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 176A8.000 | 01/06/98 |
| FIAT | STRADA Pickup (178_, 278_) 1.2 | 178B5.000 | 06.1999 - 12.2006 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B5.000 | 01/06/98 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 | 178B5.000 | 04.1996 - 02.2004 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B7.045 | 07.1997 - 08.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178C4.066 | 07.1997 - 08.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178E2.000 | 01/06/98 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178E2.000 | 06.1999 - 10.2000 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 188A4.000 | 07.1997 - 08.2002 |
| FIAT | STRADA Pickup (178_, 278_) 1.2 | 188A4.000 | 01/04/03 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178BXZ1A) | 178E2.000 | 06.1999 - 10.2002 |
| FIAT | DOBLO MPV (119_, 223_) 1.2 (223AXA1A) | 223A5.000 | 01/03/01 |
| FIAT | DOBLO Box Body/MPV (223_) 1.2 (223ZXA1A) | 223A5.000 | 03.2001 - 01.2004 |
| FIAT | PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | 188A5.000 | 09.1999 - 04.2006 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 60 | 188A4.000 | 02.2000 - 10.2009 |
| FIAT | PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250) | 188A4.000 | 09.1999 - 12.2010 |
| FIAT | PUNTO (188_) 1.2 Bipower (188BXA1A) | 188A4.000 | 08.2001 - 05.2003 |
| FIAT | PUNTO (188_) 1.2 Natural Power | 188A4.000 | 09.2003 - 03.2012 |
| FIAT | PUNTO (188_) 1.2 Natural Power (188BXA1A) | 188A4.000 | 04.2004 - 04.2006 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 Natural Power (188CXA1A) | 188A4.000 | 01.2003 - 12.2010 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 | 188A5.000 | 09.2001 - 12.2009 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (1788891, 1789491, 1730250) | 178D6.011 | 03.2000 - 02.2003 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (1788891, 1789491, 1730250) | 188A5.000 | 03.2000 - 02.2003 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | 178B5.000 | 09.1998 - 12.2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 178D6.011 | 09.2001 - 10.2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 188A5.000 | 09.2001 - 10.2004 |
| FIAT | PANDA Hatchback Van (141_) 1000 i.e | 141C2.000 | 08.1992 - 02.2004 |
| FIAT | PANDA Hatchback Van (141_) 1000 i.e | 156A2.246 | 08.1992 - 02.2004 |
| FIAT | PANDA (141_) 1000 i.e. Cat | 141C2.000 | 10.1987 - 08.1998 |
| FIAT | PANDA (141_) 1000 i.e. Cat | 156A2.246 | 10.1987 - 08.1998 |
| FIAT | PANDA (141_) 1100 | 156C.046 | 05.1991 - 12.1999 |
| FIAT | PANDA (141_) 1100 | 176B2.000 | 02.1995 - 09.2003 |
| FIAT | PANDA (141_) 1100 | 187A1.000 | 02.1995 - 09.2003 |
| FIAT | PANDA (141_) 1100 4x4 | 176B2.000 | 02.1995 - 07.2004 |
| FIAT | PANDA (141_) 1100 4x4 | 187A1.000 | 02.1995 - 07.2004 |
| FIAT | PANDA (141_) 1100 Trekking 4x4 | 156C.046 | 10.1991 - 07.2004 |
